Front Side Door Trim Panel Replacement

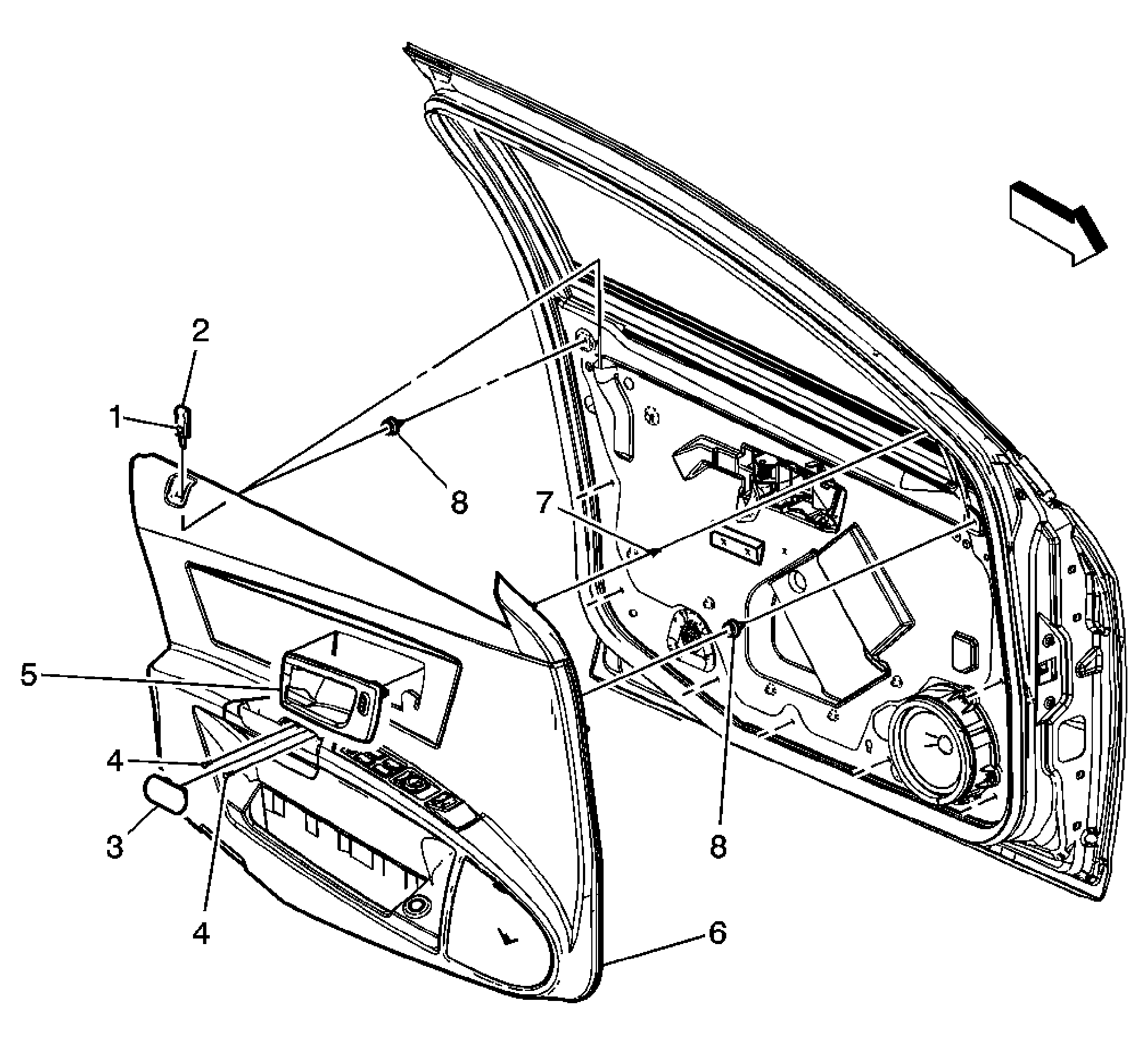

Fig 1: Front Side Door Trim Panel Components
GM1770884Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Detent Tab
2 Front Side Door Locking Rod Knob Assembly
Tip:
  1. Lower window.
  2. Ensure locking rod is in the unlocked position.
  3. Use a flat-bladed tool to disengage detent tab and then remove knob by pulling upward.
  4. When re-installing, push knob down until detent tab touches locking rod opening cover.
  5. Push detent tab in to lock knob to locking rod.
3 Front Side Door Trim Panel Cover
4 Front Side Door Trim Panel Cover Screw (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  1 N.m (9 lb in)
5 Front Side Door Inside Handle Bezel
Tip:
  1. Hold inside handle to the open position.
  2. Insert a flat-bladed tool at the front lower corner of the bezel and pry outward to disengage from door panel.
6 Front Side Door Trim Panel Assembly
Tip:
  1. Use a J 38778  Door Trim Clip Remover to aid in the removal of the door trim panel.
  2. Disconnect the electrical connectors.
7 Front Side Door Upper Extension Trim Panel Clip
8 Front Side Door Trim Panel Retainer (Qty: 9)
