Removal Procedure

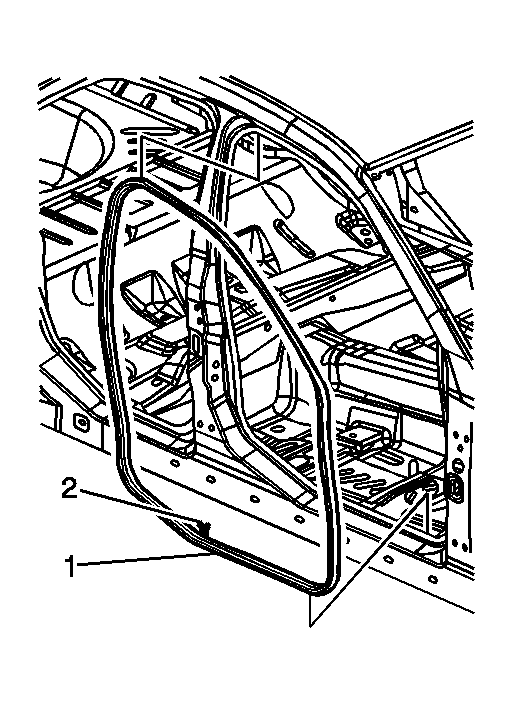

    Fig 1: View Of Front Door Opening Weatherstrip
    GM758963Courtesy of GENERAL MOTORS CORP.
  1. Remove the carpet retainer. Refer to Front Carpet Retainer Replacement .
  2. Start at the rear upper corner of the door opening and pull the weatherstrip away from the door opening flange.
  3. Work around the door opening and remove the weatherstrip (1).
