Installation Procedure

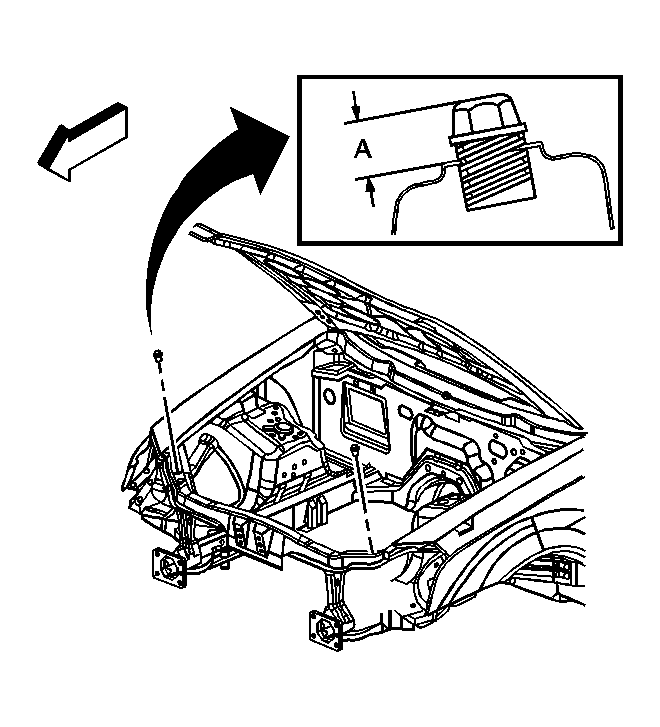

    Fig 1: View Of Front Hood Bumpers
    GM738142Courtesy of GENERAL MOTORS CORP.
  1. Position the hood bumpers to the opening in the upper tie bar.
  2. Turn the hood bumpers clockwise until the height (A) of 20 mm (3/4 in) is achieved.
