Removal Procedure

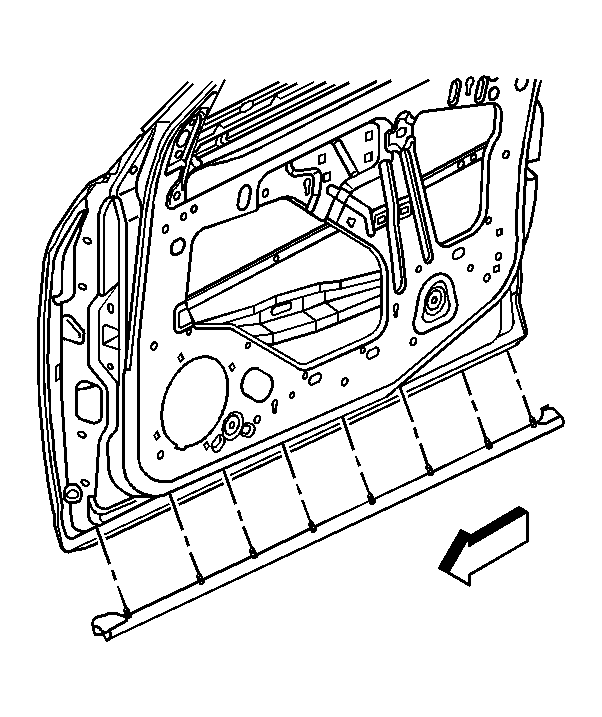

    Fig 1: View Of Front Door Bottom Sealing Strip
    GM758778Courtesy of GENERAL MOTORS CORP.
  1. With the door open, remove the front door bottom sealing strip retainers.
  2. Remove the sealing strip.
