Door Lock Schematics

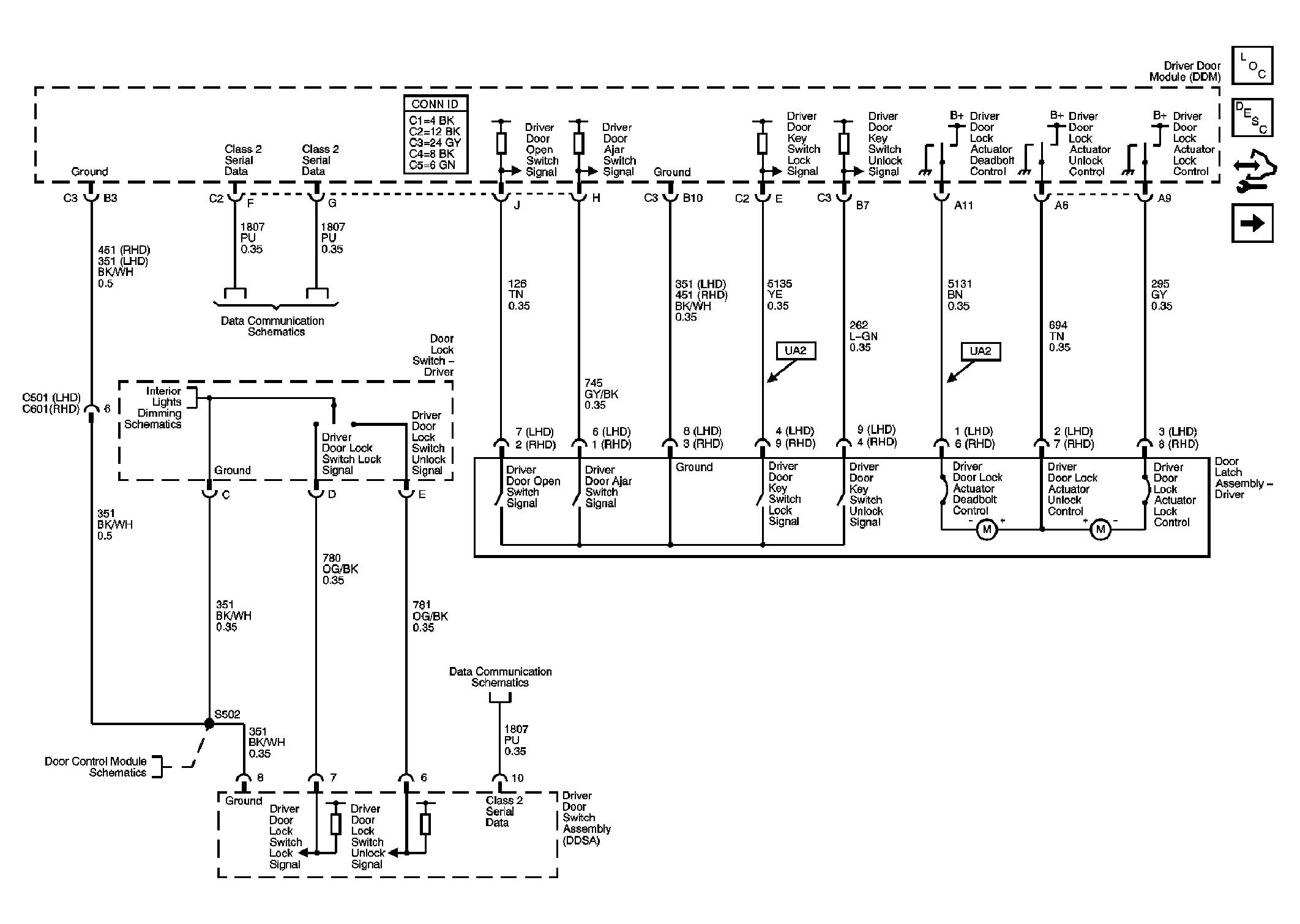

Fig 1: Driver Door Module (DDM), Driver Door Switch Assembly (DDSA), Door Lock Switch, and Latch Assembly Schematics
GM1788050Courtesy of GENERAL MOTORS CORP.

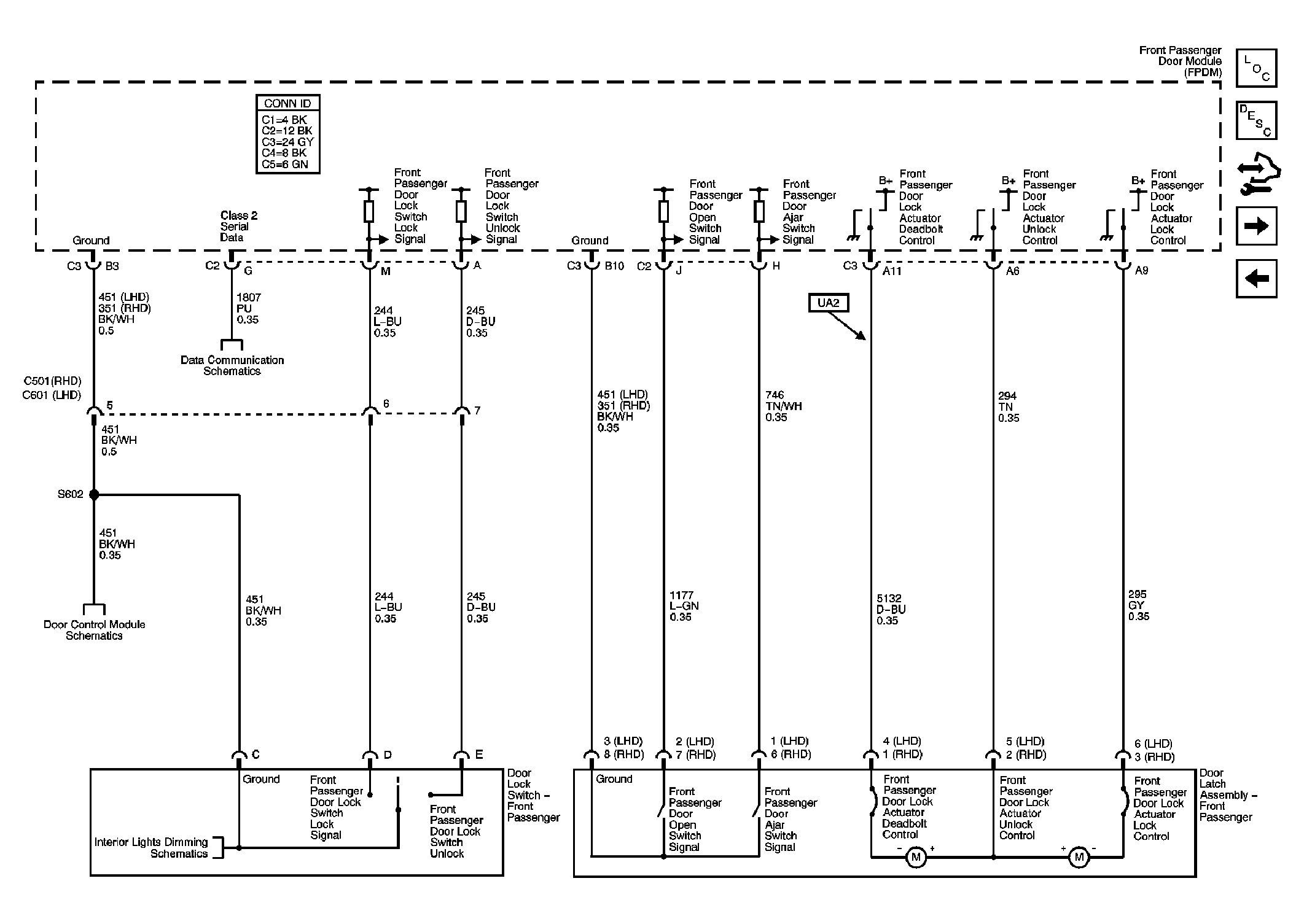

Fig 2: Front Passenger Door Module (FPDM), Door Lock Switch, and Latch Assembly Schematics
GM1788052Courtesy of GENERAL MOTORS CORP.

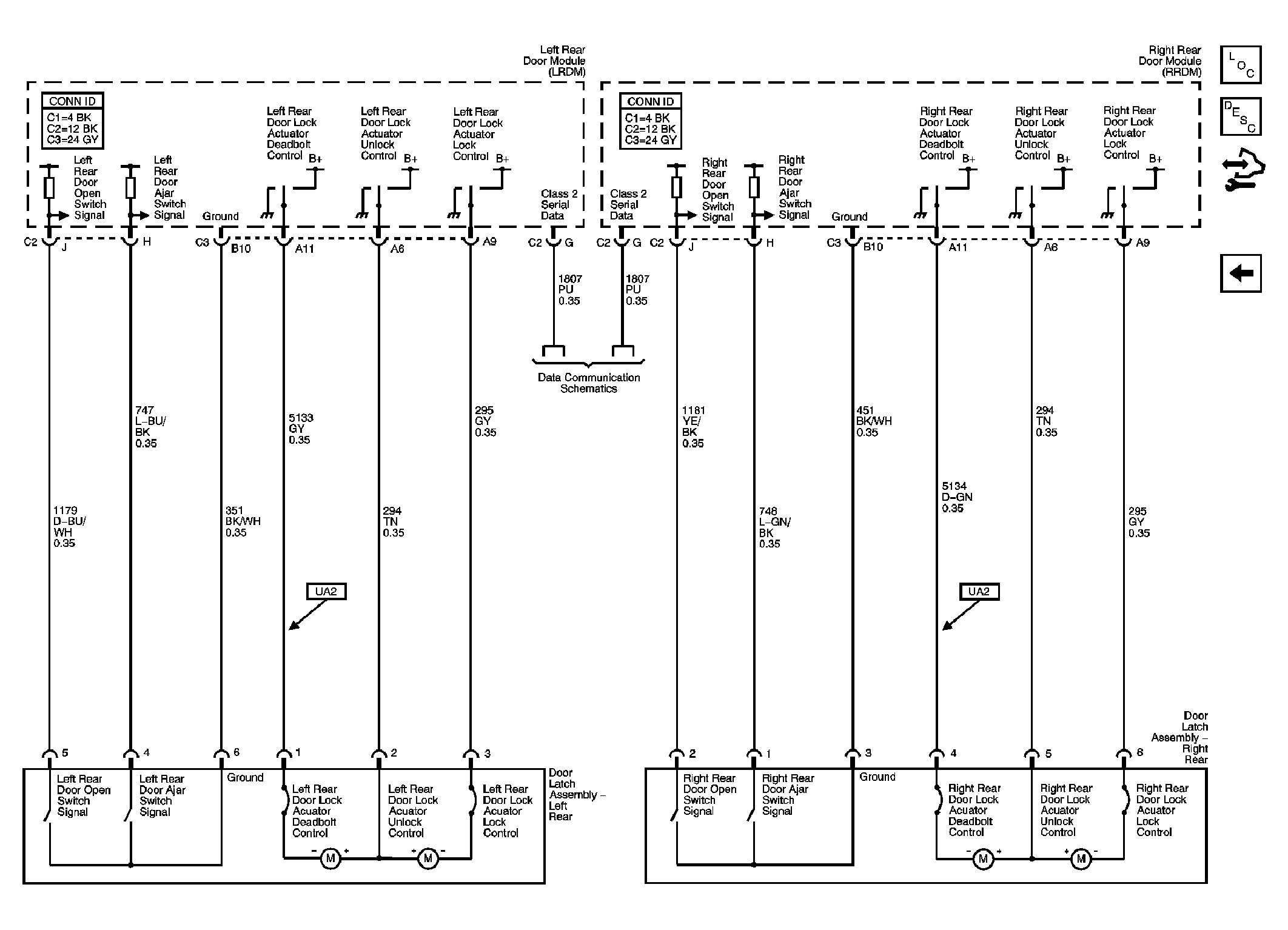

Fig 3: Left Rear Door Module (LRDM), Right Rear Door Module (RRDM), and Rear Door Latch Assemblies Schematics
GM1788054Courtesy of GENERAL MOTORS CORP.
