Interior Lights Schematics

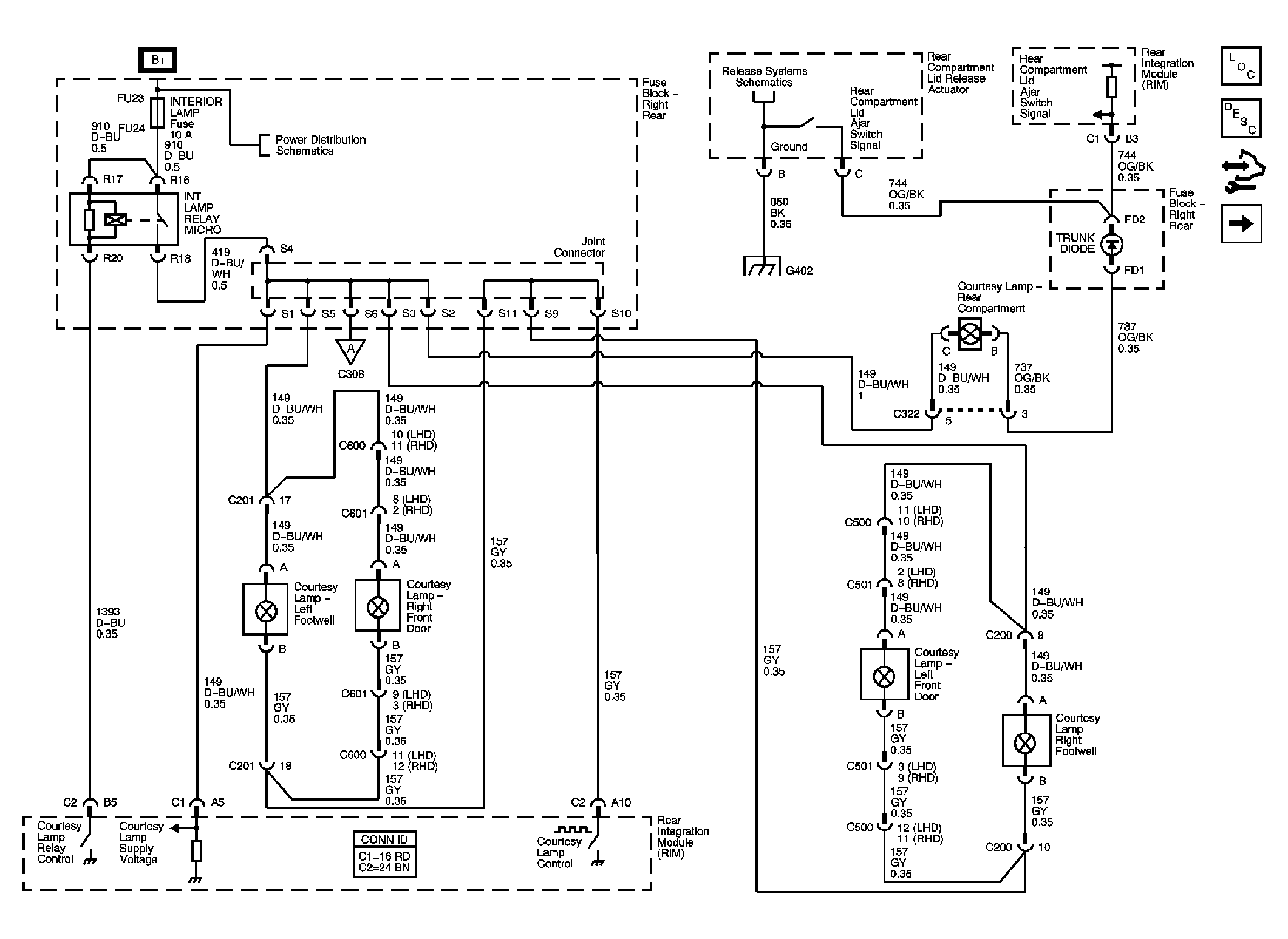

Fig 1: Courtesy Lamps Schematics

GM1787607

Courtesy of GENERAL MOTORS CORP.

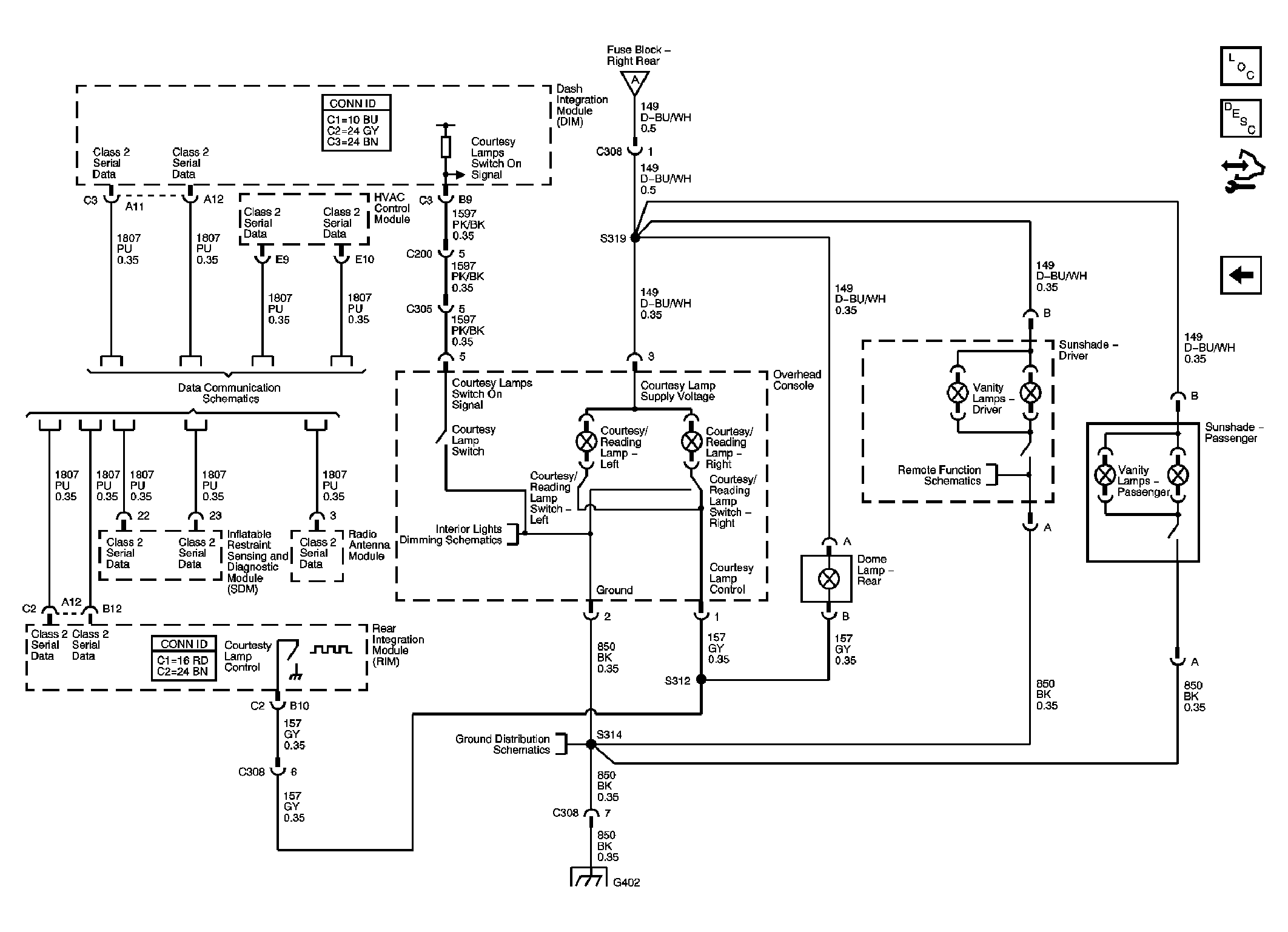

Fig 2: Overhead Courtesy Lamps, Dome Lamp, and Vanity Lamps Schematics

GM1787612

Courtesy of GENERAL MOTORS CORP.
