Headlights/Daytime Running Lights (DRL) Schematics

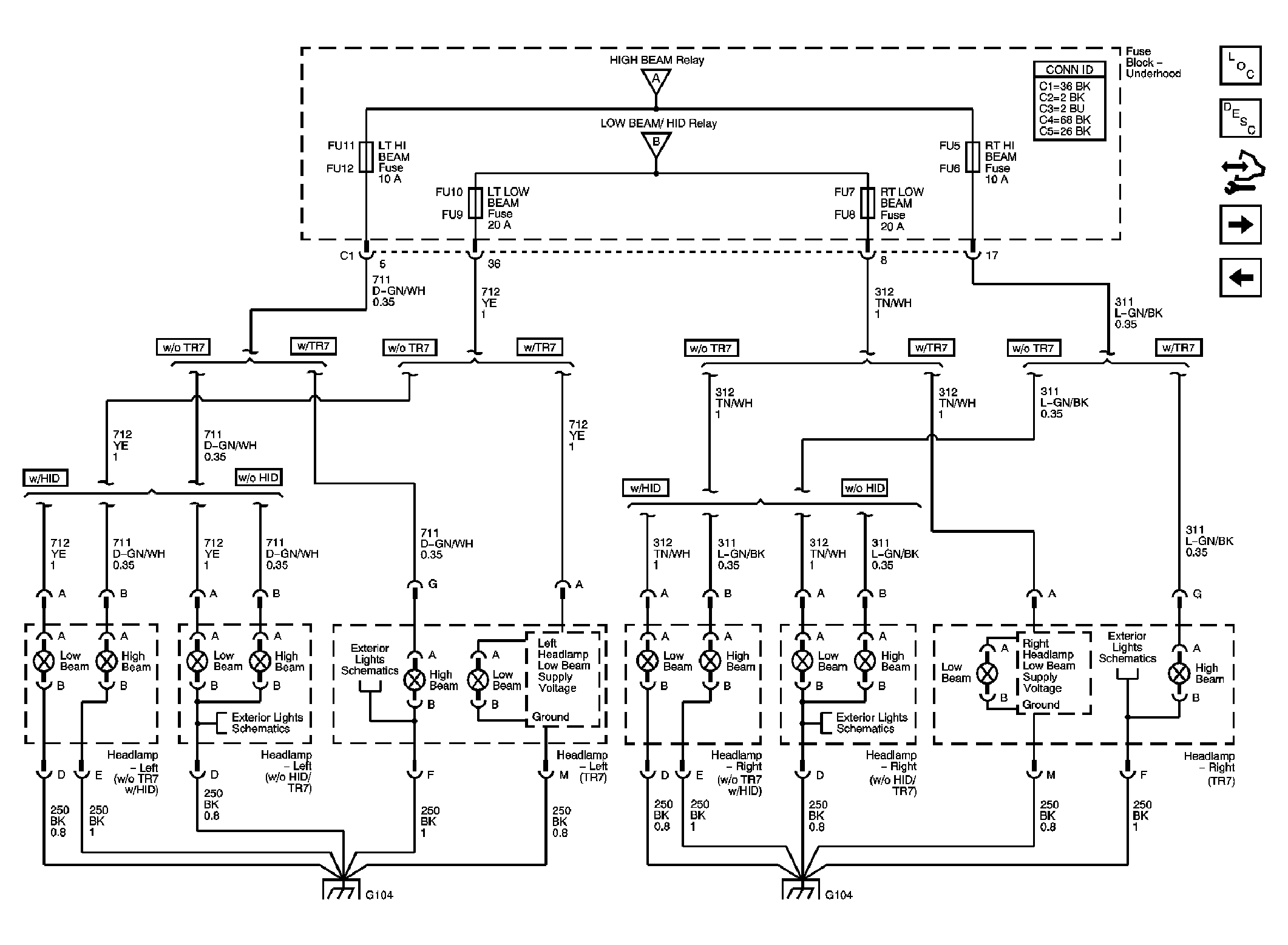

Fig 1: Headlamp Controls Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 2: Lighting Headlights/DRL (Headlamps) Schematics

Courtesy of GENERAL MOTORS CORP.

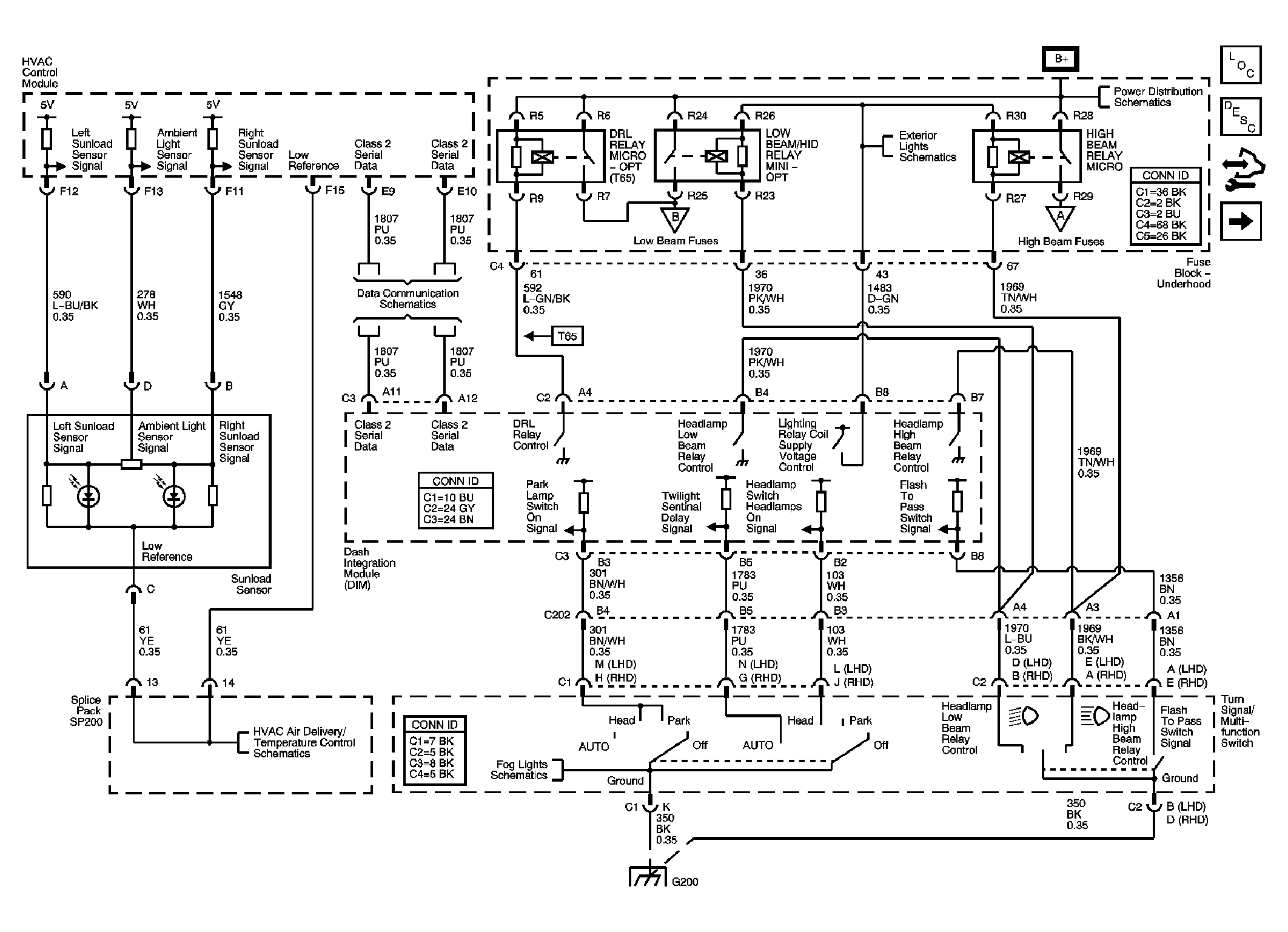

Fig 3: Daytime Running Lamps (DRL) - (Export w/T65) Schematics

Courtesy of GENERAL MOTORS CORP.

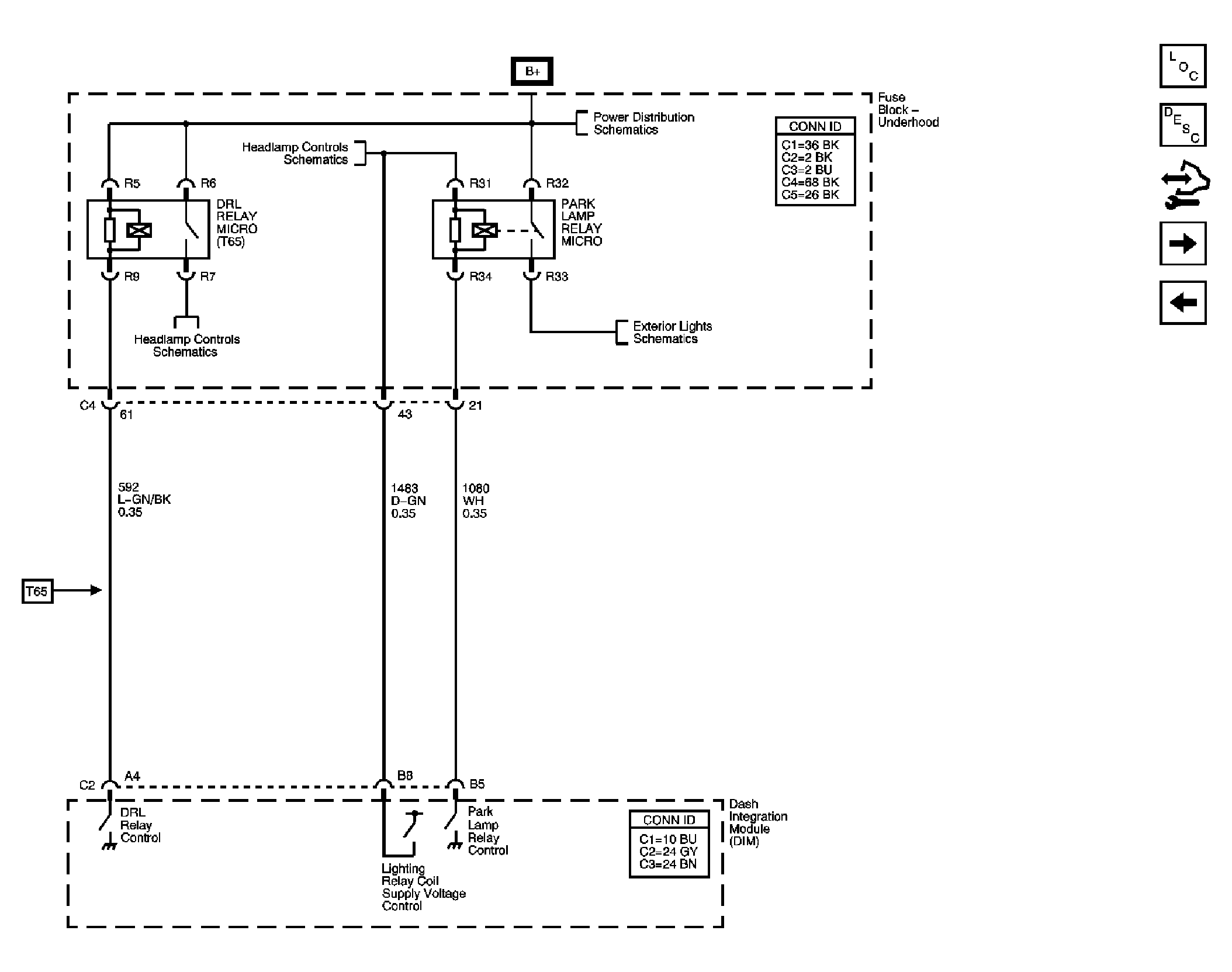

Fig 4: Daytime Running Lamps (DRL) - Domestic Schematics
