Exterior Lights Schematics

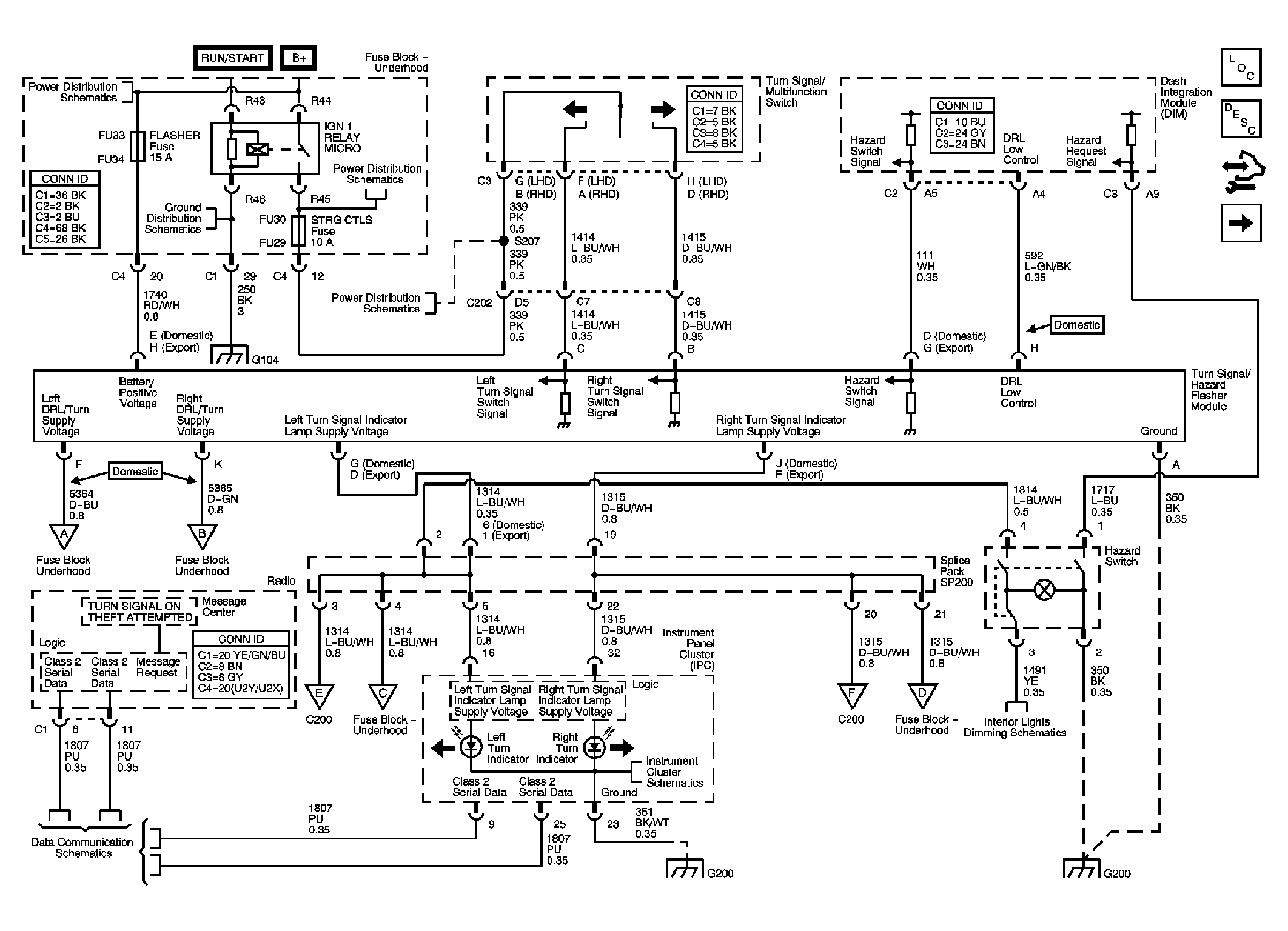

Fig 1: Turn Signal/Hazard Flasher Module Schematics

Courtesy of GENERAL MOTORS CORP.

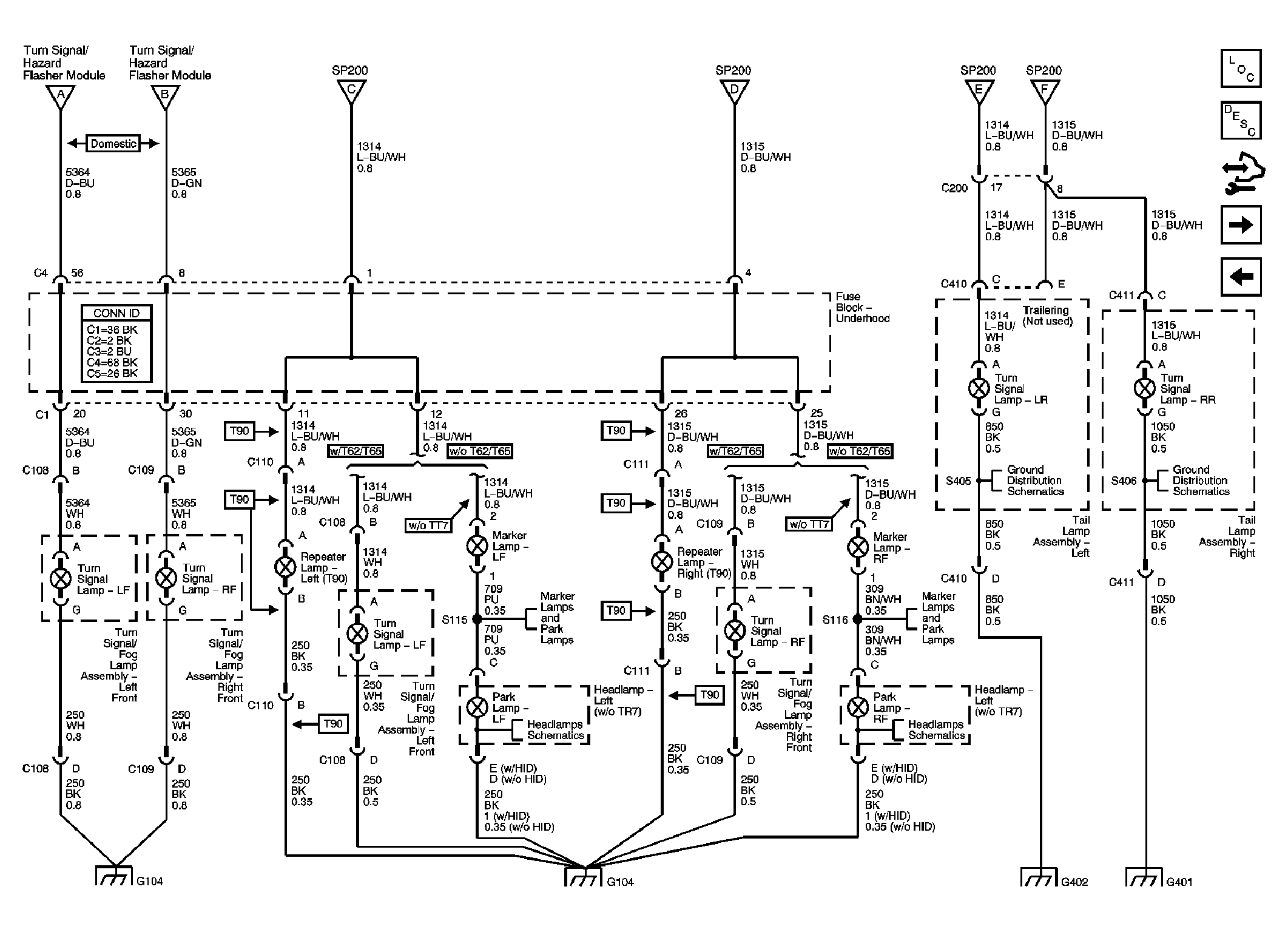

Fig 2: Turn Signal Lamps - Domestic and Export, Repeater - Export w/T90 Schematics

Courtesy of GENERAL MOTORS CORP.

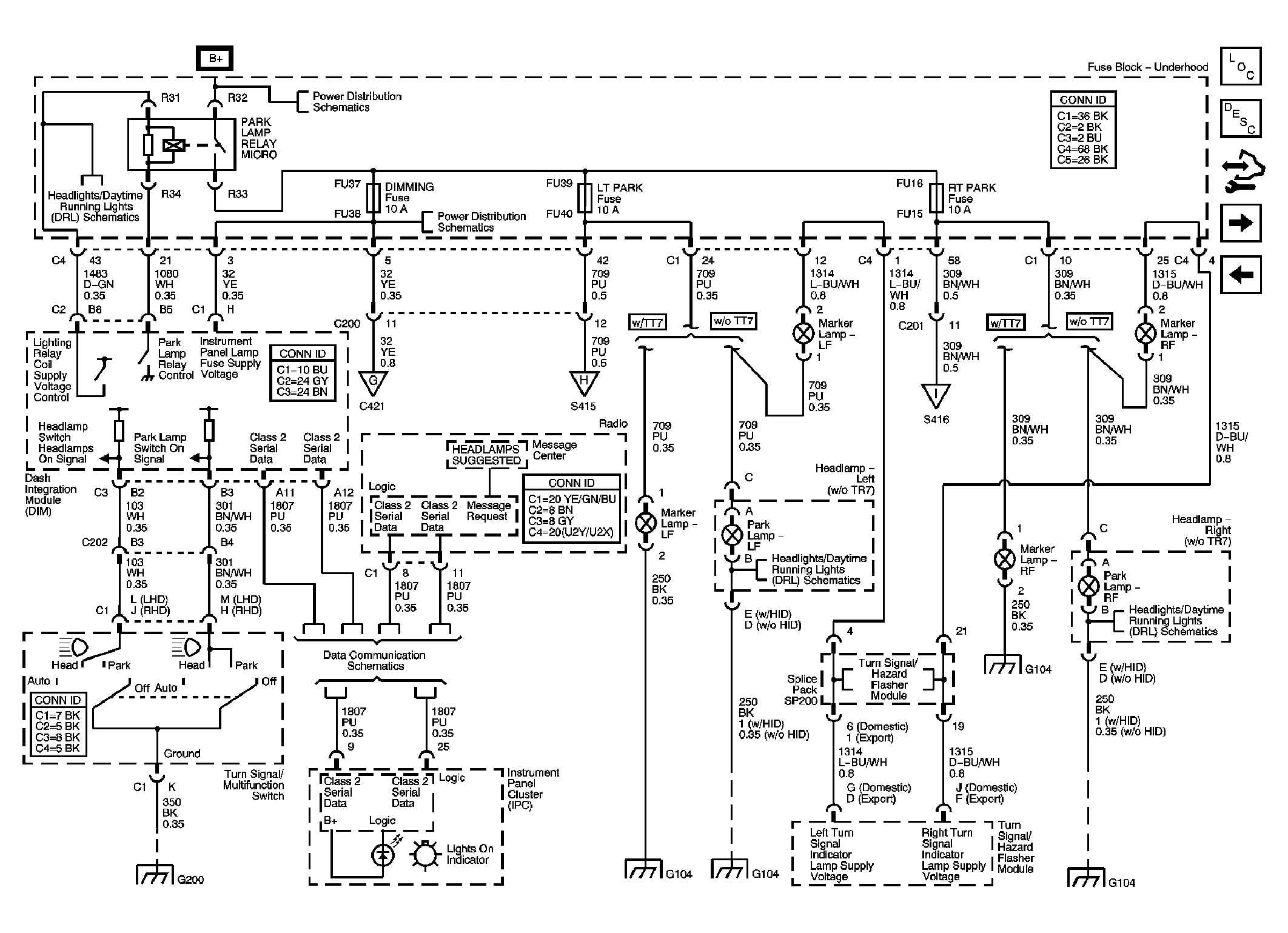

Fig 3: Front Marker Lamps (w/TT7) and Front Park Lamps (w/o TT7) Schematics

Courtesy of GENERAL MOTORS CORP.

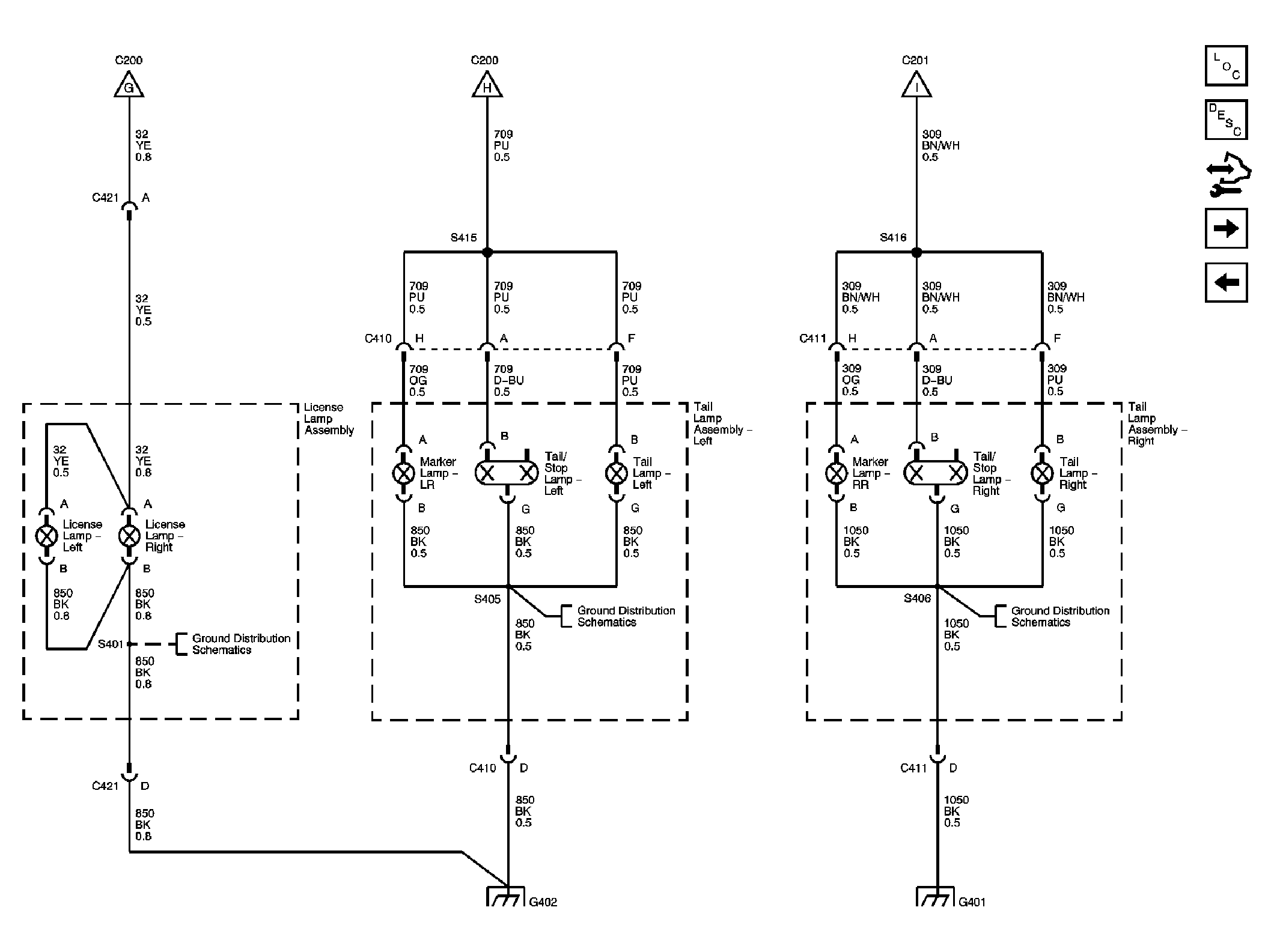

Fig 4: License Lamps, Rear Marker Lamps, and Tail Lamps Schematics

Courtesy of GENERAL MOTORS CORP.

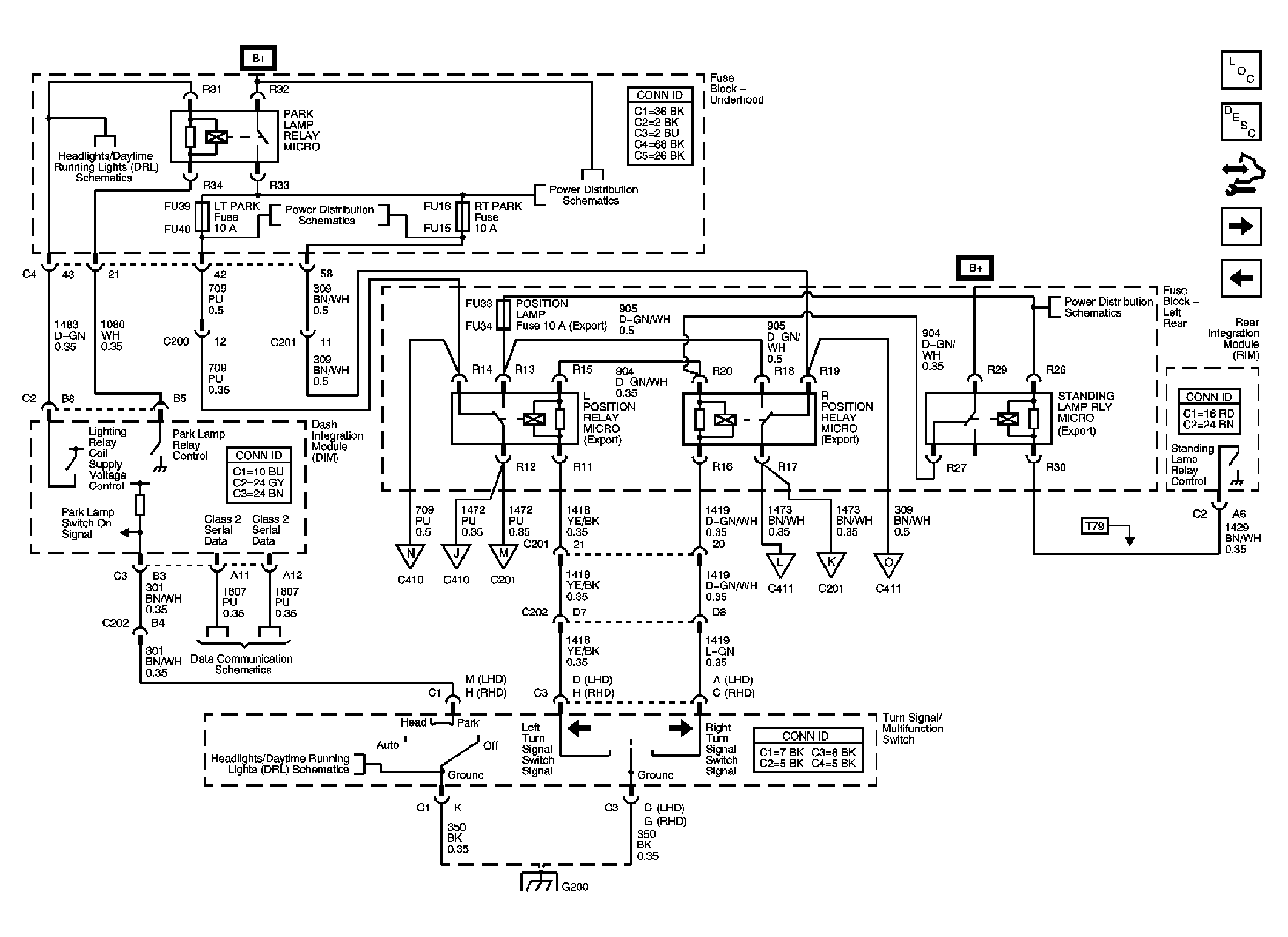

Fig 5: Position Lamp Controls - Export w/T79 Schematics

Courtesy of GENERAL MOTORS CORP.

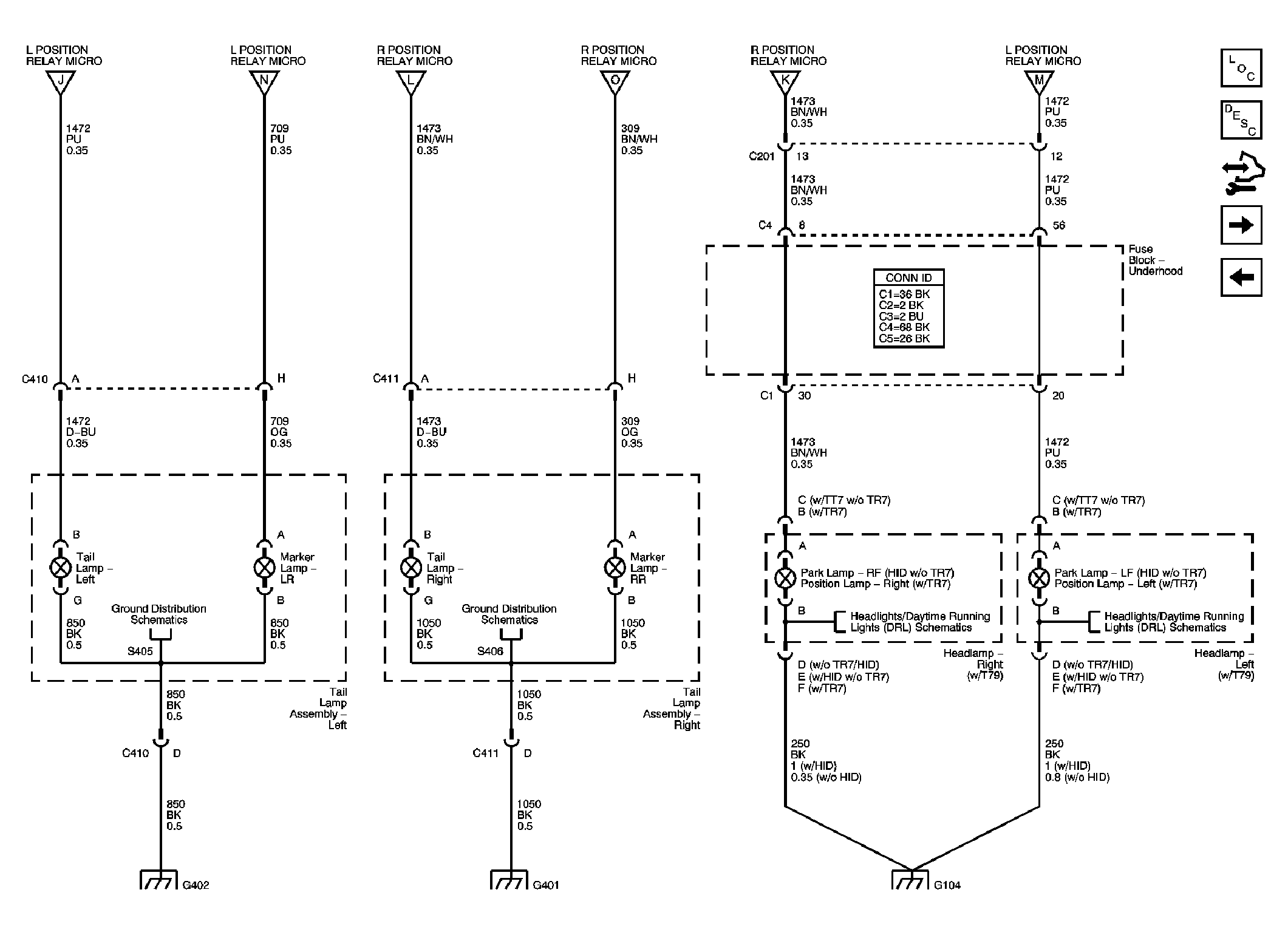

Fig 6: Position, Park, and Tail Lamps - Export Schematics

Courtesy of GENERAL MOTORS CORP.

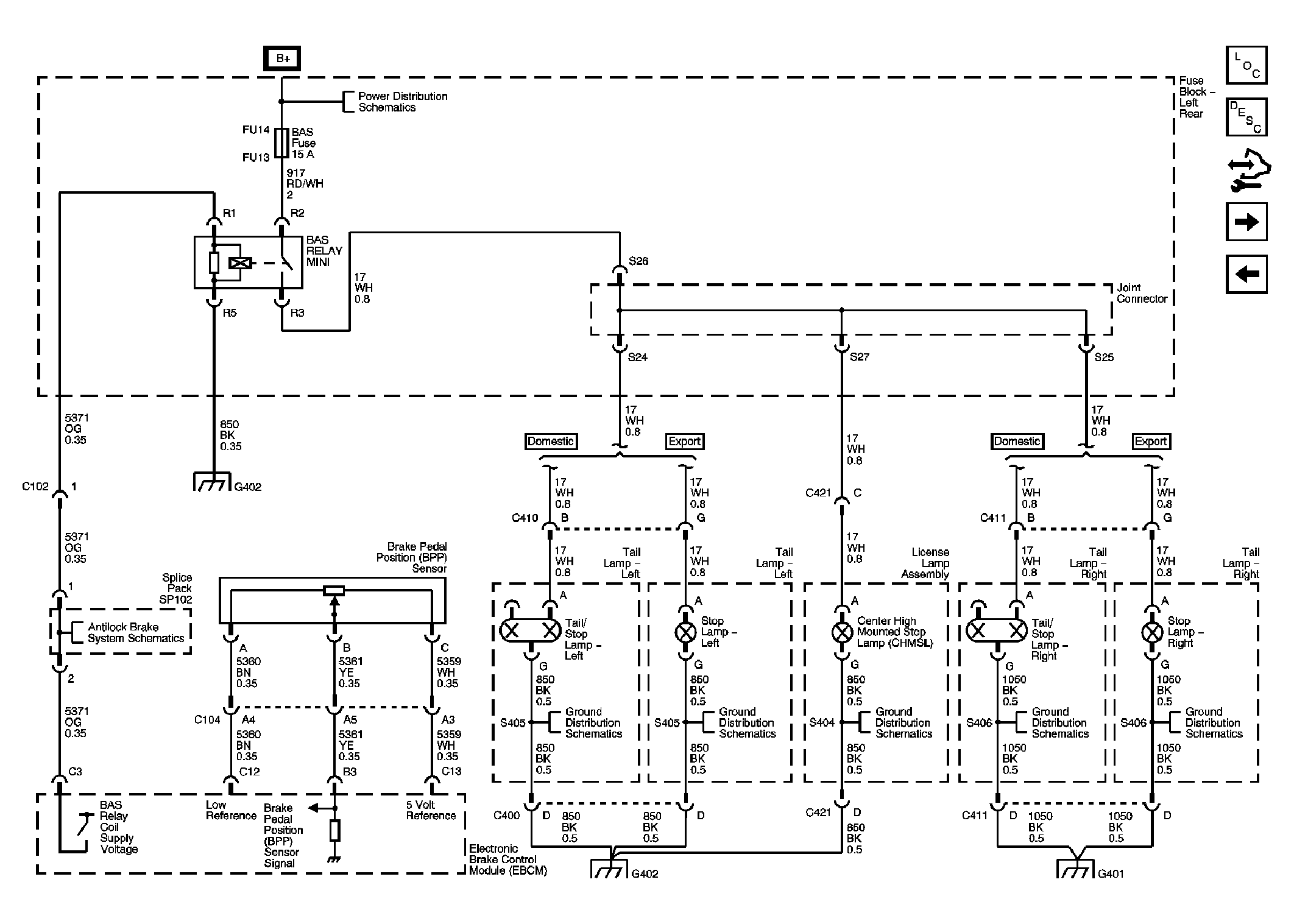

Fig 7: Stop Lamps, BPP Sensor, and BAS Fuse/Relay - Domestic and Export Schematics

Courtesy of GENERAL MOTORS CORP.

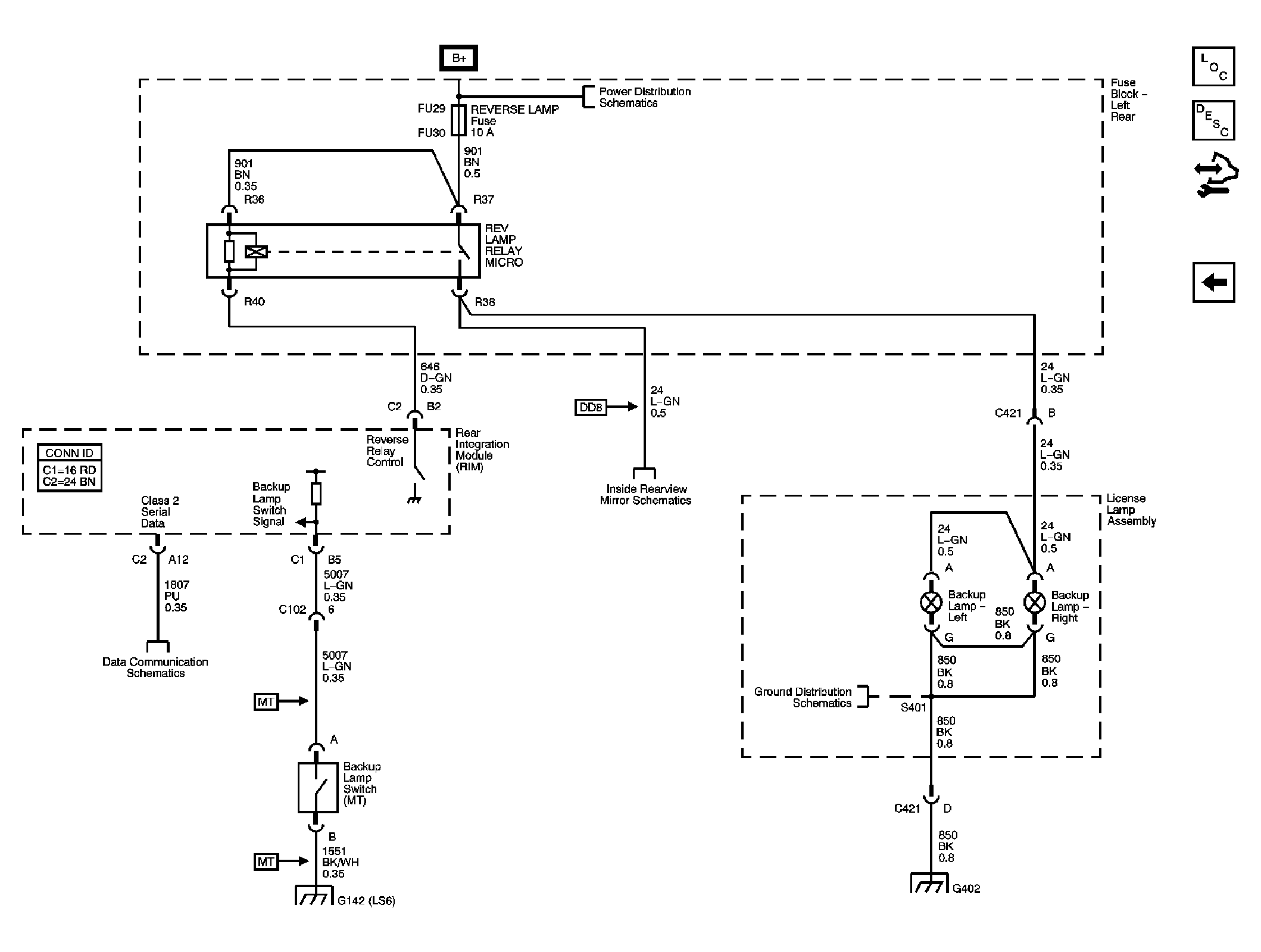

Fig 8: Backup Lamps Schematics

Courtesy of GENERAL MOTORS CORP.
