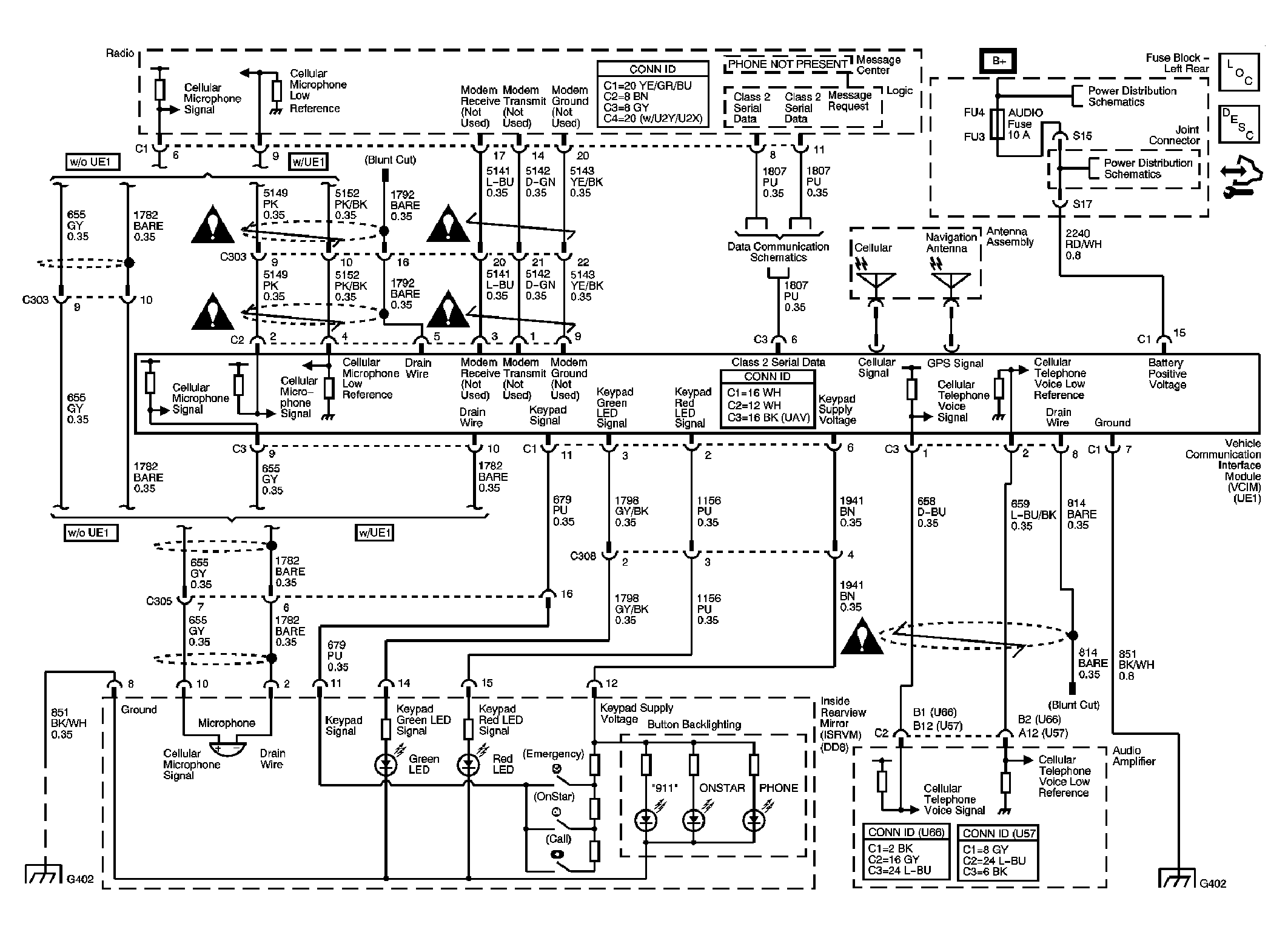

Home >> Cadillac >> 2007 >> CTS V >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Cellular System, Entertainment System, And Navigation System >> Schematic and Routing Diagrams >> OnStar Schematics
