Driver Information System Schematics

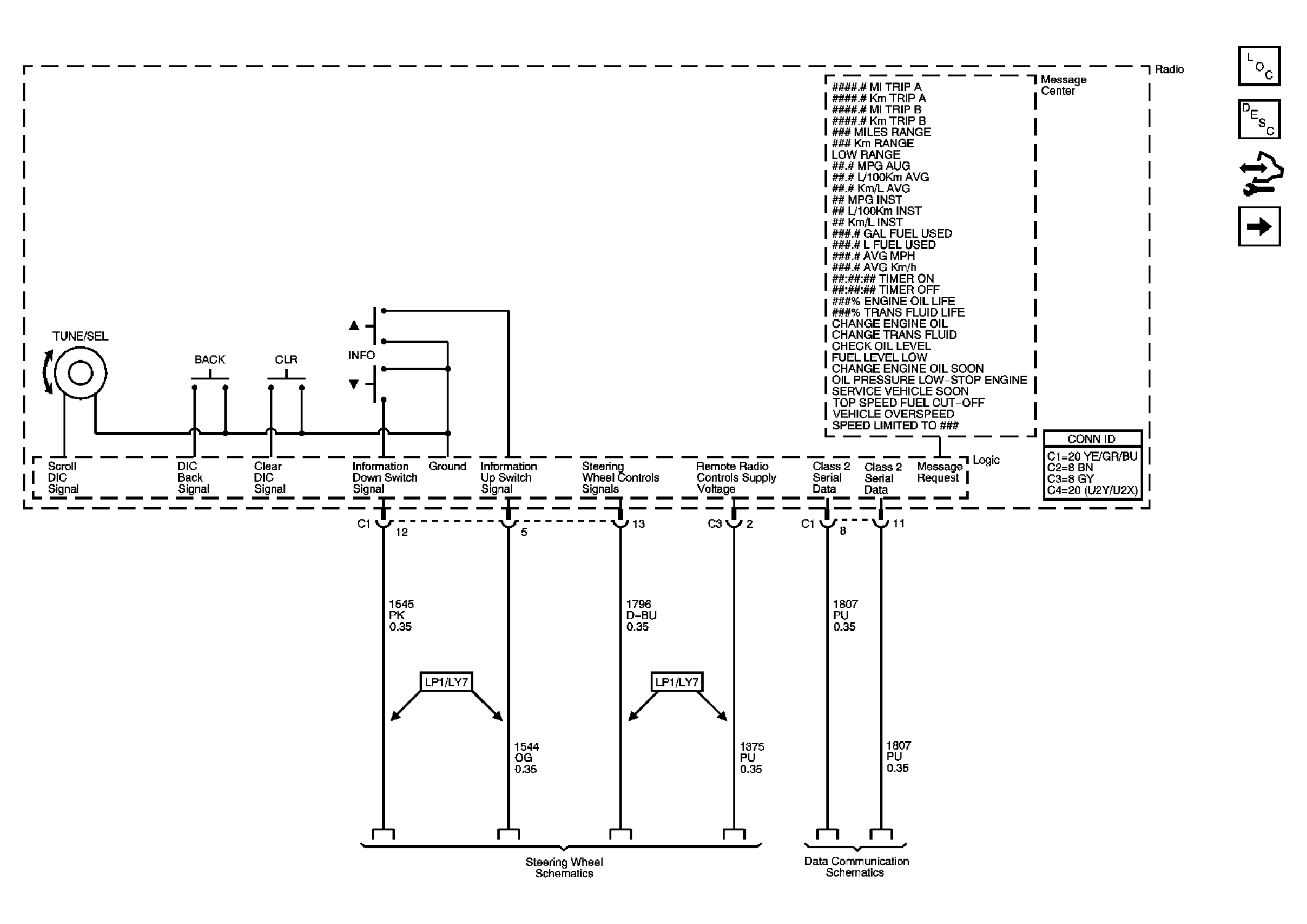

Fig 1: Driver Information Center (DIC) System (LP1/LY7)
GM1788350Courtesy of GENERAL MOTORS CORP.

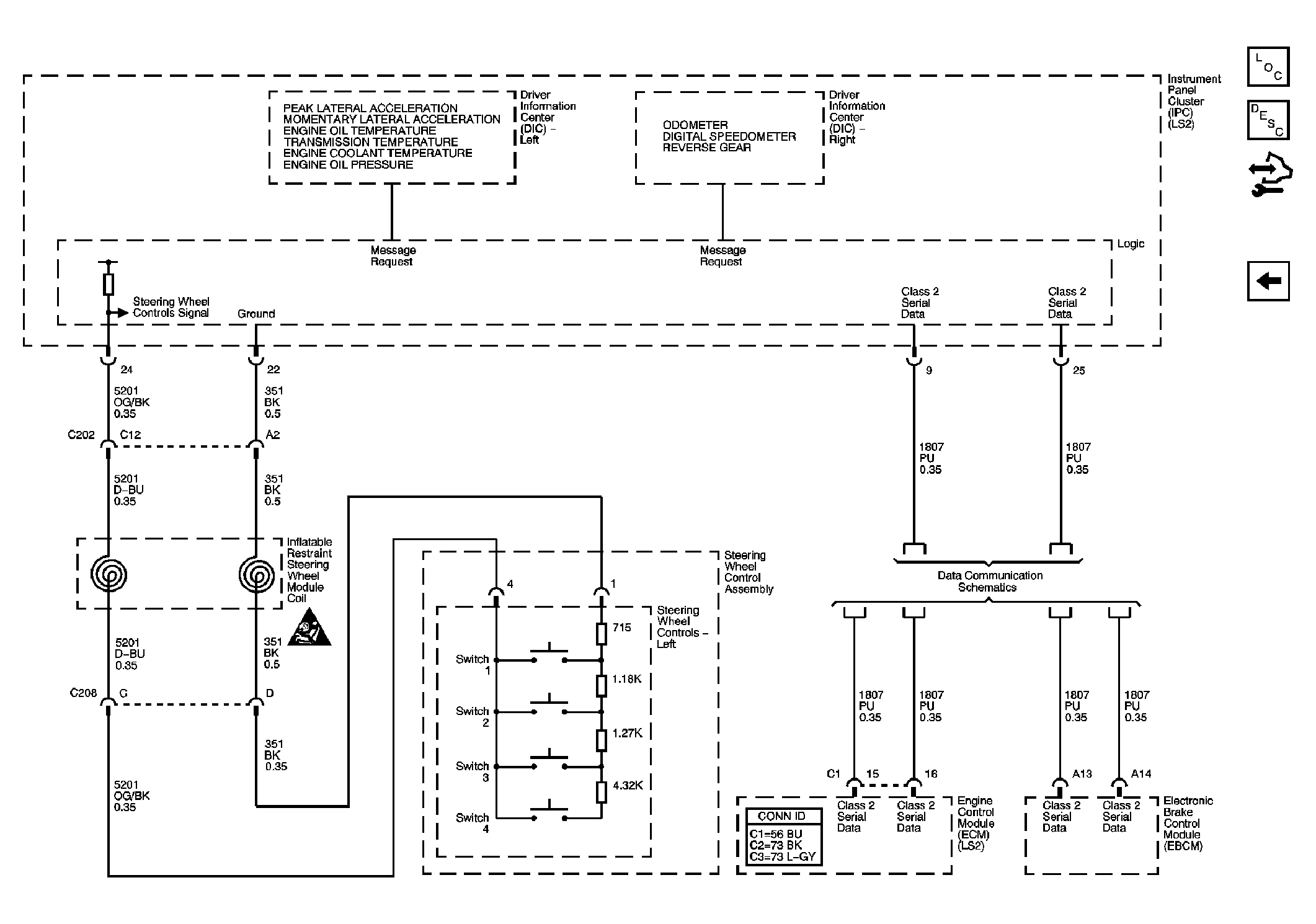

Fig 2: Driver Information Center (DIC) System - 6.0L (LS2)
GM1788353Courtesy of GENERAL MOTORS CORP.
