Displays and Gages Component Views

Fig 1: Electronic PRNDL (M82)
GM1403061Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Winter Mode Switch
2 Electronic PRNDL
3 Sport Mode Switch
4 Console Trim Plate
5 Electronic PRNDL
6 Shift Control Assembly
7 Electronic PRNDL Connector
Fig 2: Ignition Key Alarm Switch
GM1347701Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Key Alarm Switch
2 Ignition Switch
3 Ignition Lock Cylinder Case
Fig 3: Left Side Of Engine (LY7) Component View
GM1378244Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Oil Level/Temperature Sensor
2 Engine Oil Pressure (EOP) Sensor

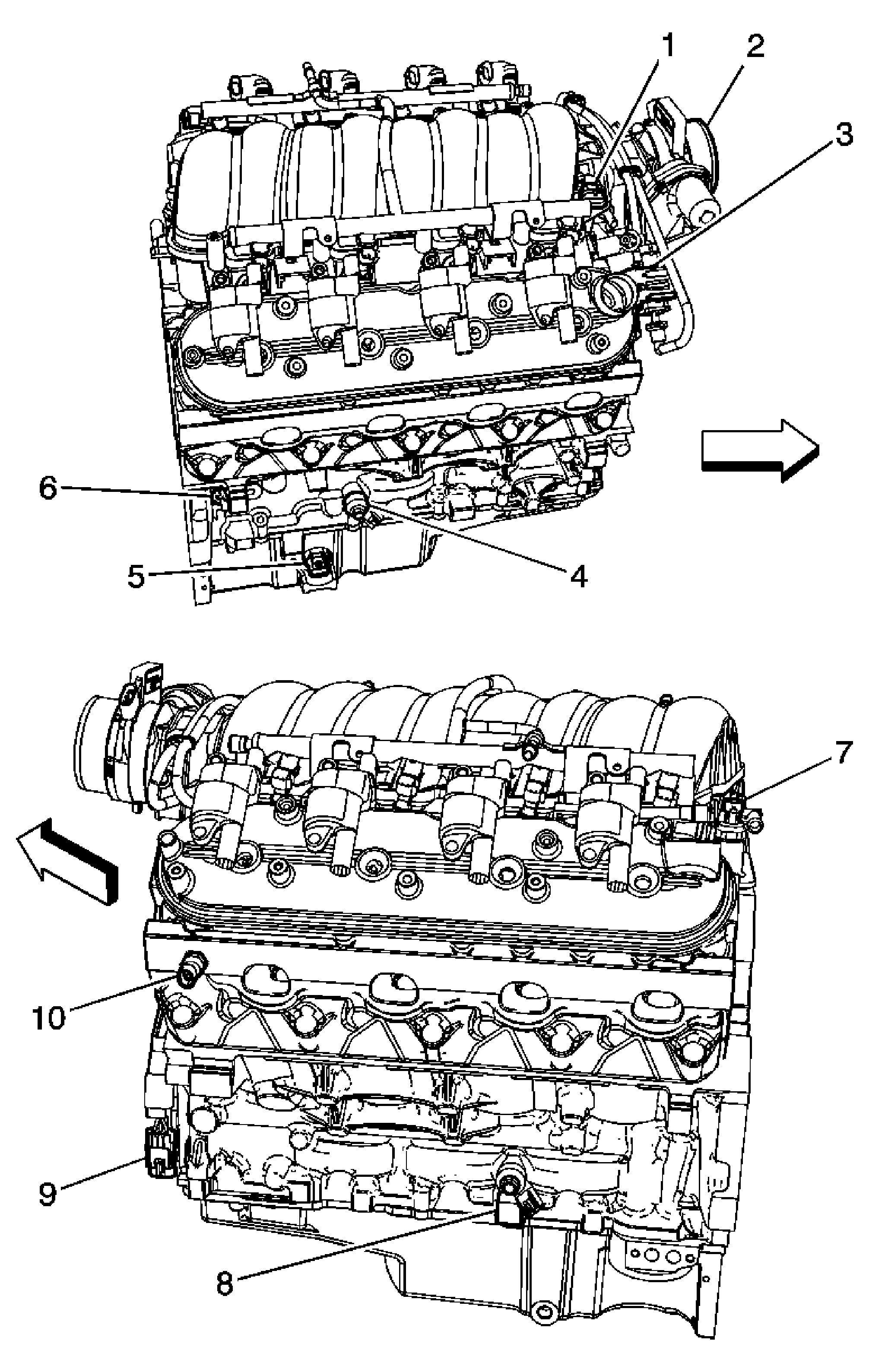

Fig 4: Engine Components
GM1675095Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Manifold Absolute Pressure (MAP) Sensor
2 Throttle Body Assembly
3 Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 Knock Sensor (KS) 2
5 Engine Oil Level Switch
6 Crankcase Position (CKP) Sensor
7 Engine Oil Pressure (EOP) Sensor
8 Knock Sensor (KS) 1
9 Camshaft Position (CMP) Sensor
10 Engine Coolant Temperature (ECT) Sensor
Fig 5: RR of Transmission - Tremec 6-Speed (M12/MN6)
GM1403192Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vehicle Speed Sensor (VSS)
2 Transmission Fluid Temperature (TFT) Sensor Connector
3 Transmission Fluid Temperature (TFT) Sensor
4 Vehicle Speed Sensor (VSS) Connector

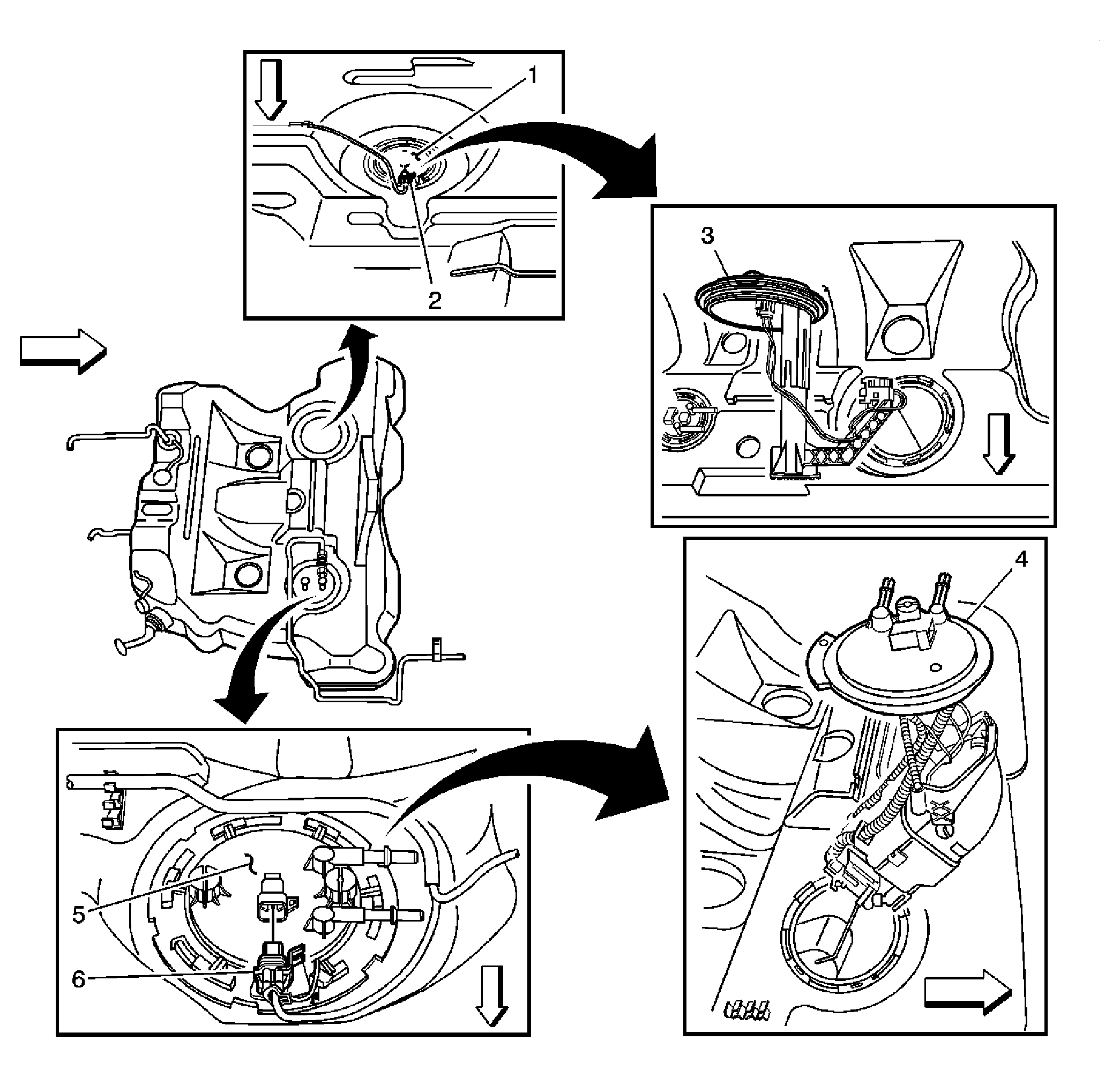

Fig 6: Fuel Tank Subsystem Components
GM1737387Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Secondary Fuel Sender Assembly
2 Secondary Fuel Sender Assembly Connector
3 Secondary Fuel Sender Assembly (Removed from Fuel Tank)
4 Fuel Pump and Sender Assembly (Removed from Fuel Tank)
5 Fuel Pump and Sender Assembly
6 Fuel Pump and Sender Assembly Connector
