Automatic Transmission Controls Schematics

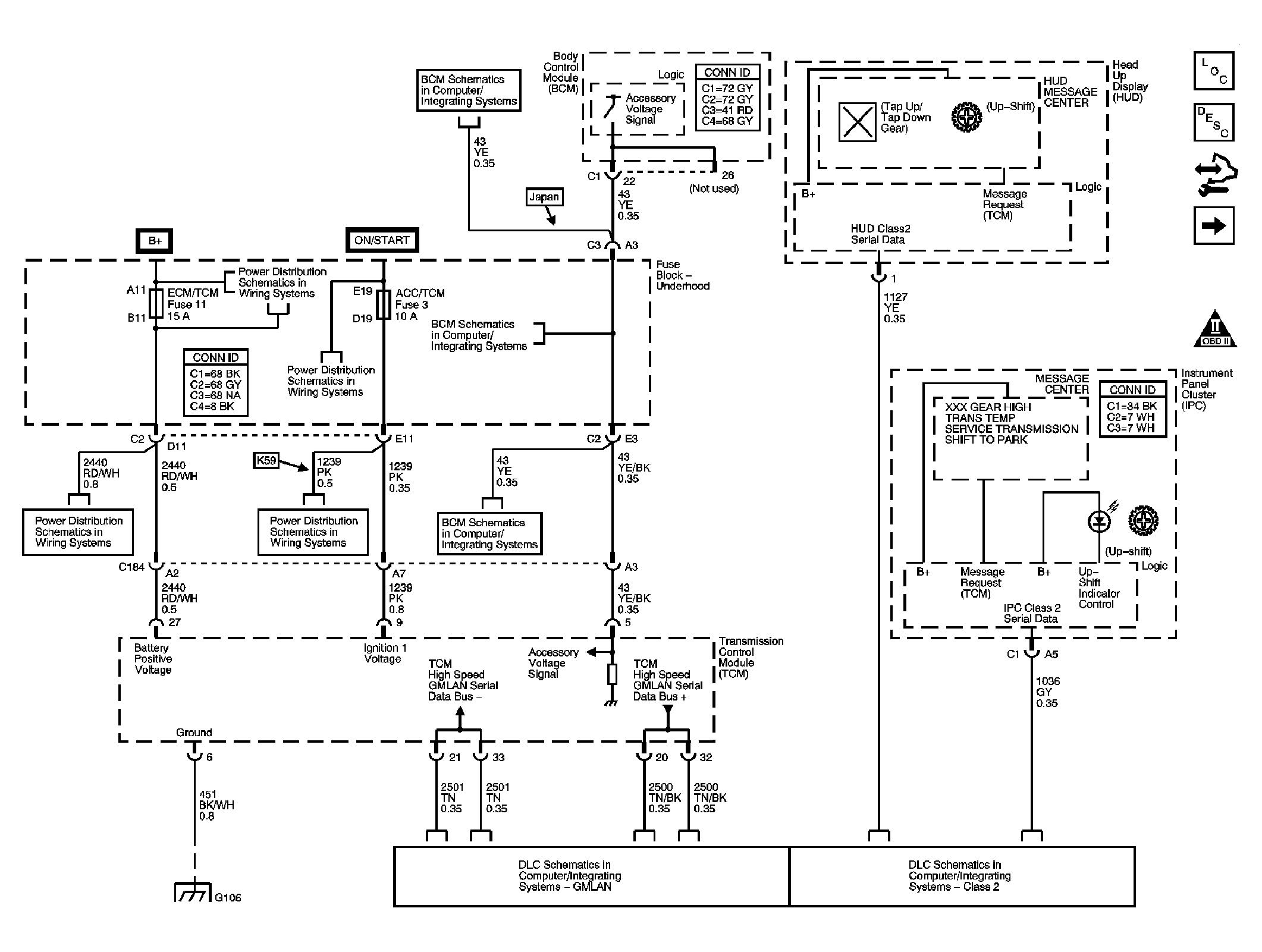

Fig 1: DLC, Ground, MIL, and Power

Courtesy of GENERAL MOTORS CORP.

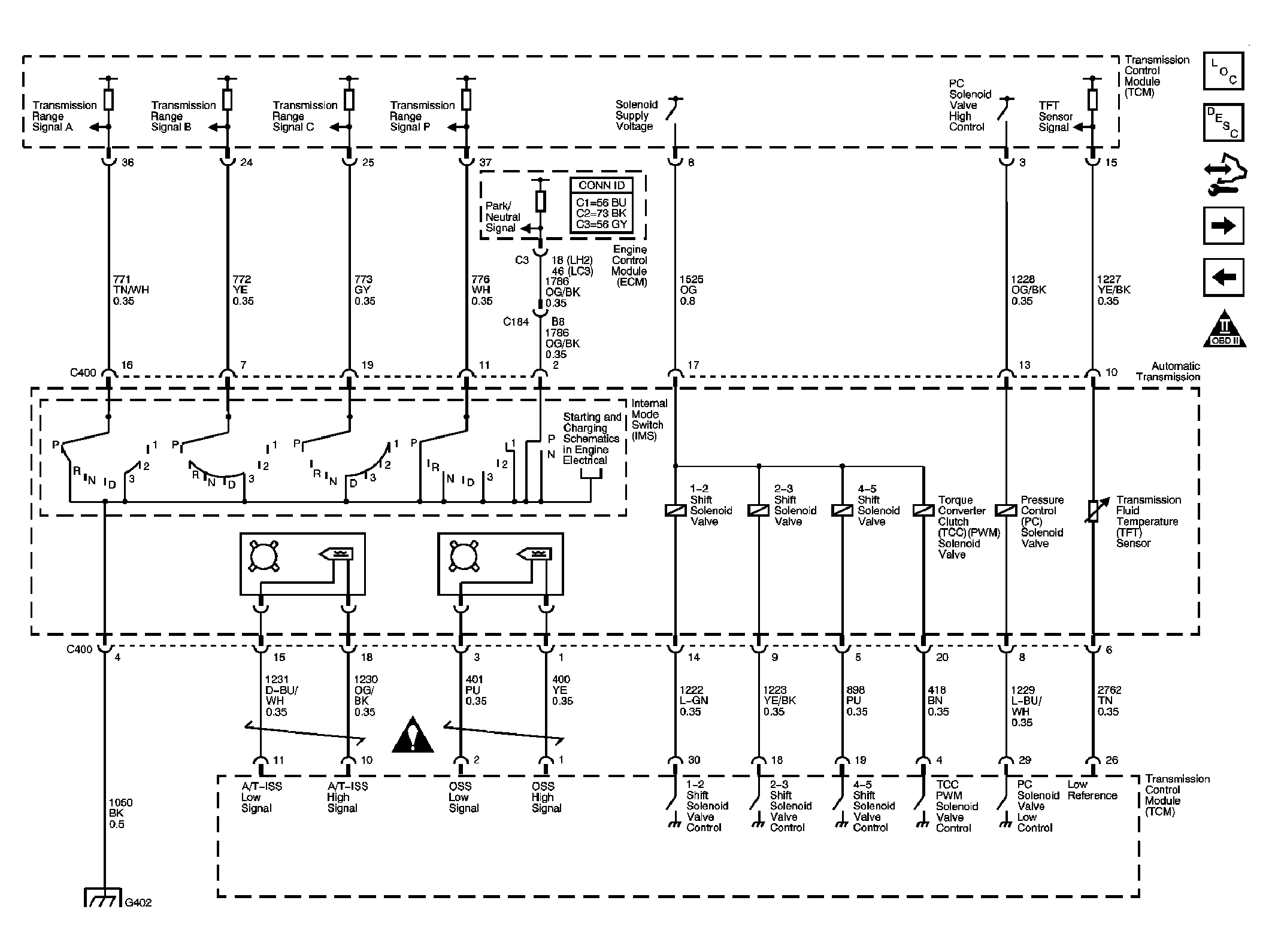

Fig 2: IMS, ISS, Solenoids, TFT, and VSS

Courtesy of GENERAL MOTORS CORP.

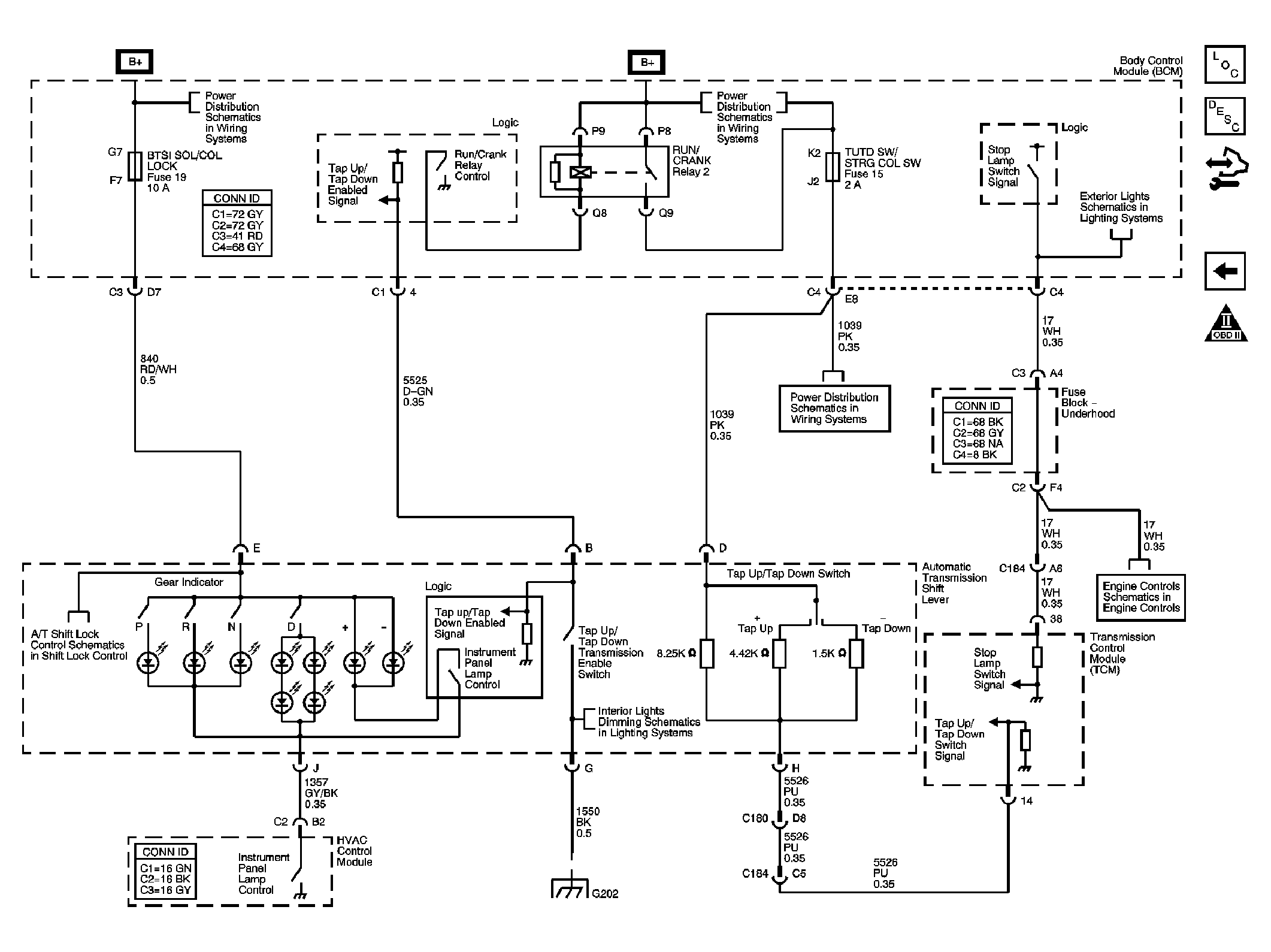

Fig 3: Shift Lever

Courtesy of GENERAL MOTORS CORP.
