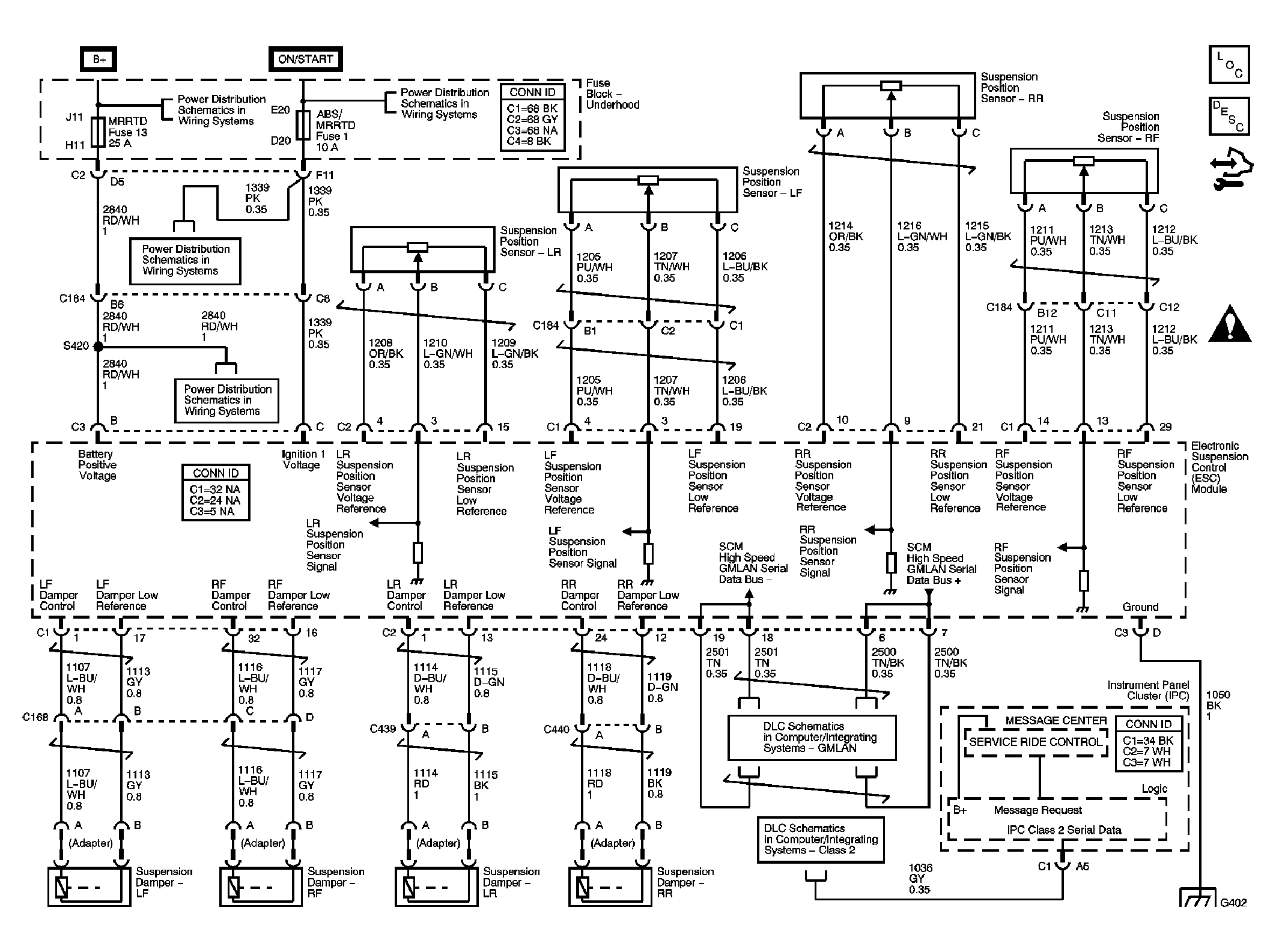

Home >> Cadillac >> 2006 >> XLR Base >> Repair and Diagnosis >> Suspension >> Electronic Suspension >> Suspension Control System - Suspension Damping >> Schematic and Routing Diagrams >> Suspension Controls Schematics
