SIR Schematics

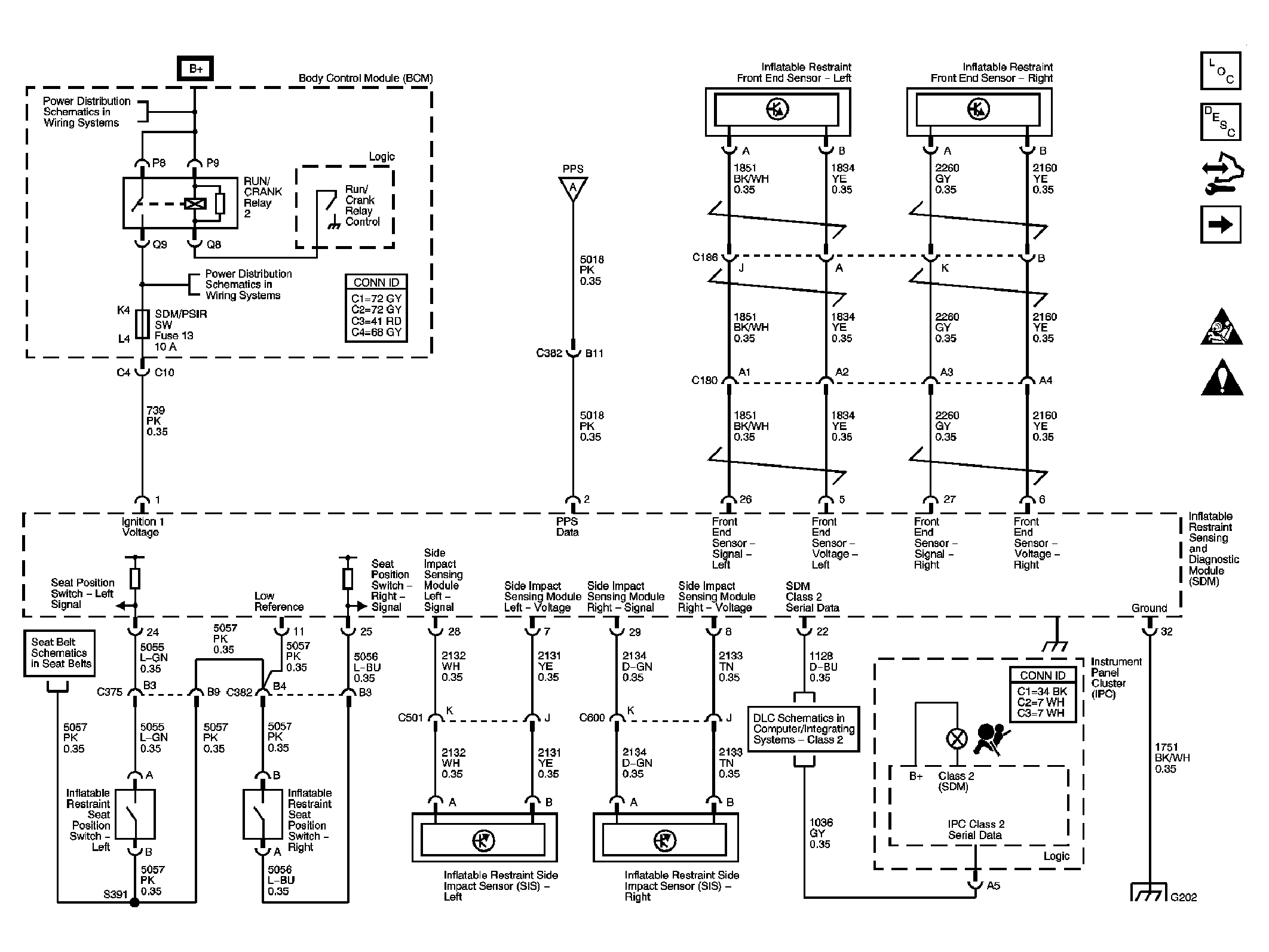

Fig 1: Ground, Indicator, Power, Sensors, and Switches
GM1670666Courtesy of GENERAL MOTORS CORP.

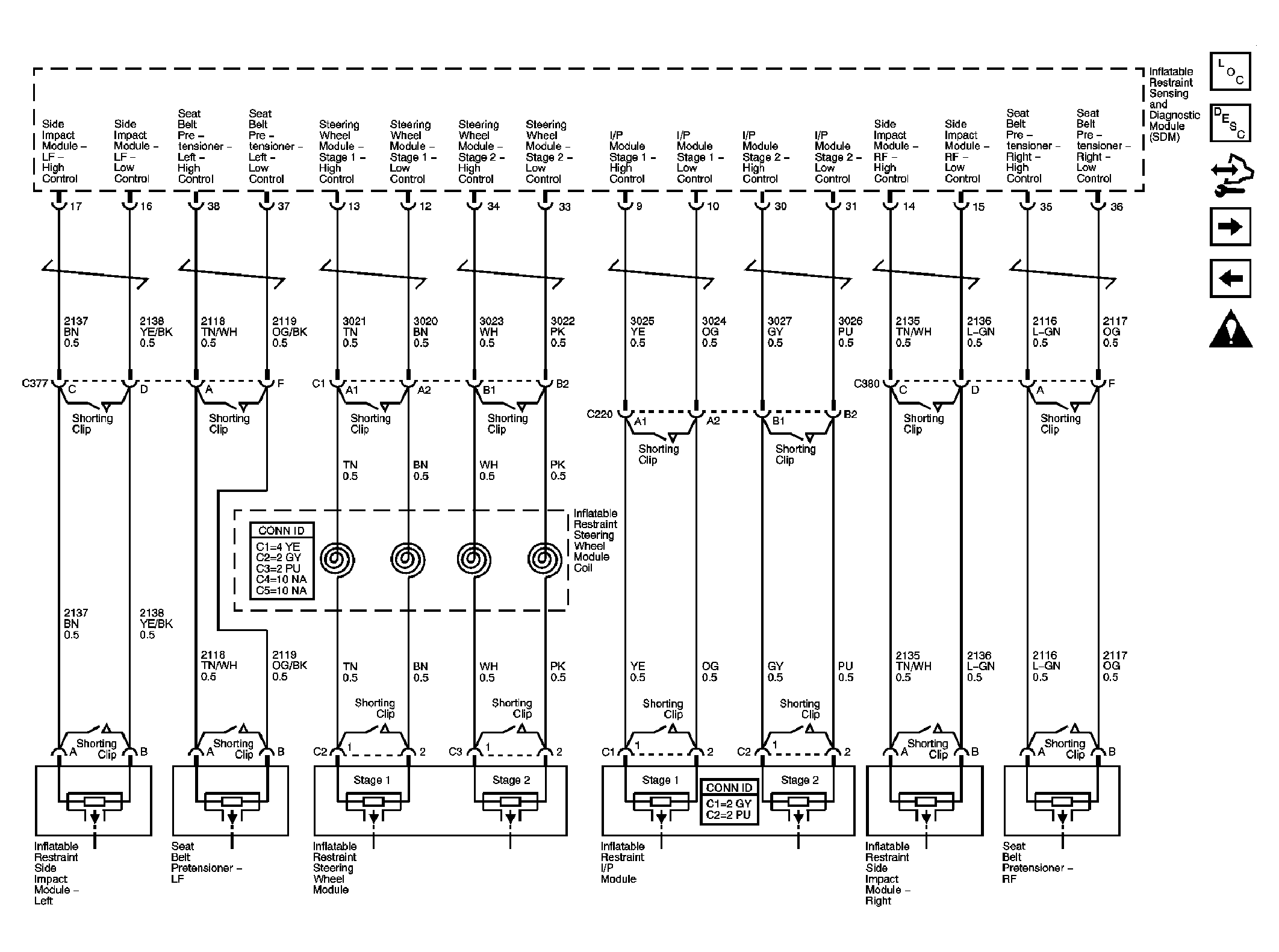

Fig 2: Deployment Loops
GM1674759Courtesy of GENERAL MOTORS CORP.

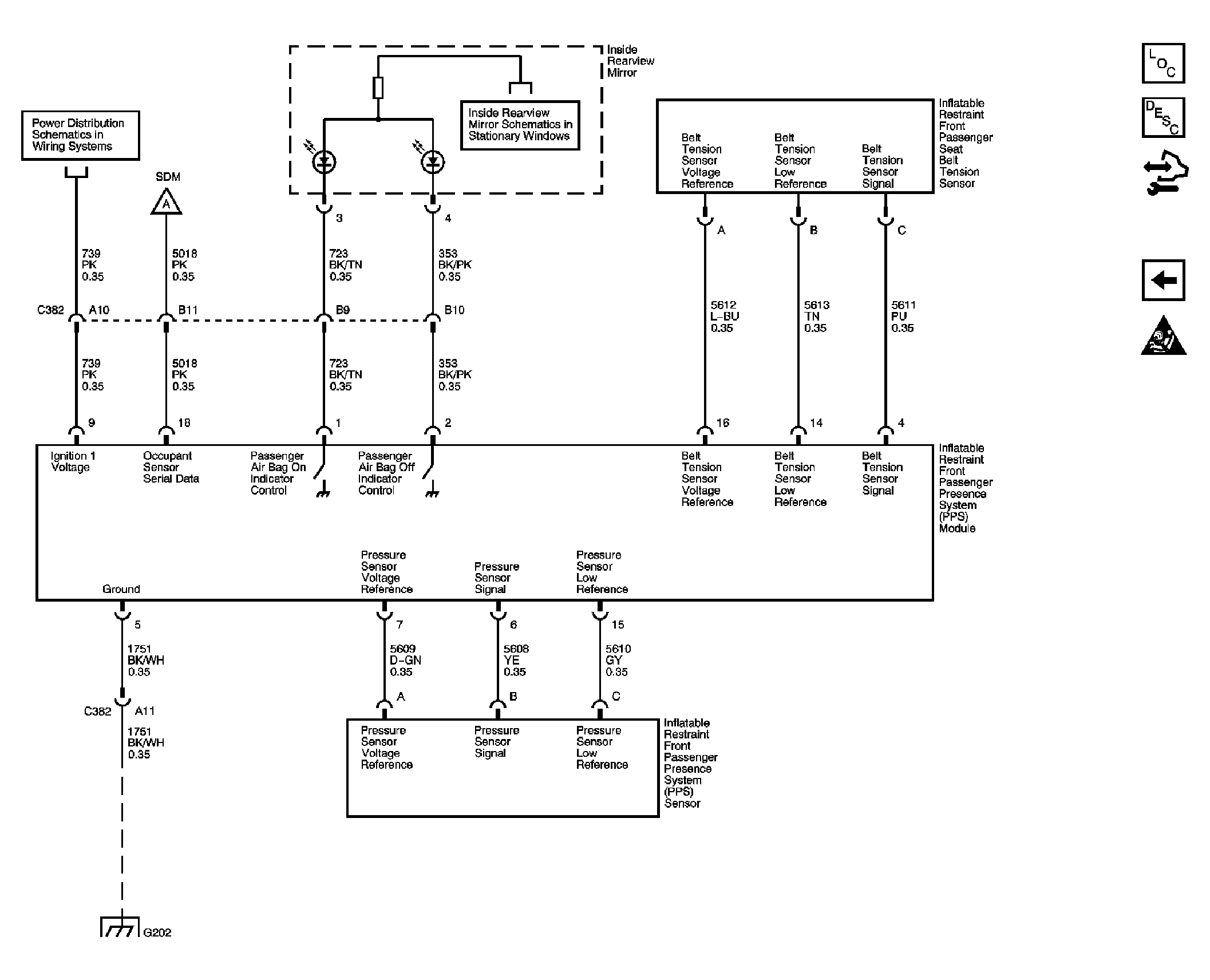

Fig 3: Passenger Presence System (PPS)
GM1669974Courtesy of GENERAL MOTORS CORP.
