HVAC Schematics

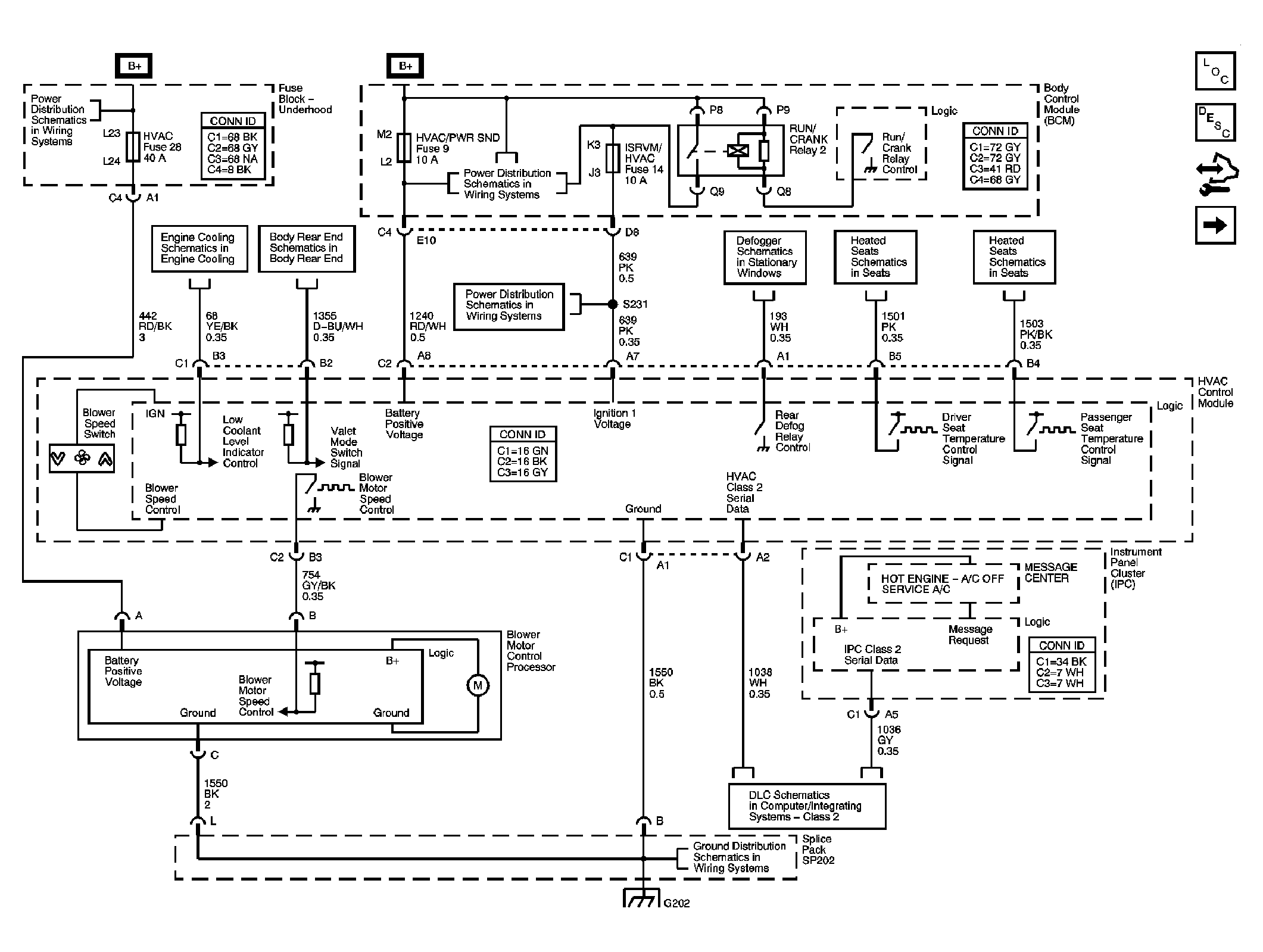

Fig 1: Blower Controls, DLC, Ground, MIL, Power, and Subsystem References
GM1480549Courtesy of GENERAL MOTORS CORP.
Fig 2: Compressor Controls
GM1480557Courtesy of GENERAL MOTORS CORP.

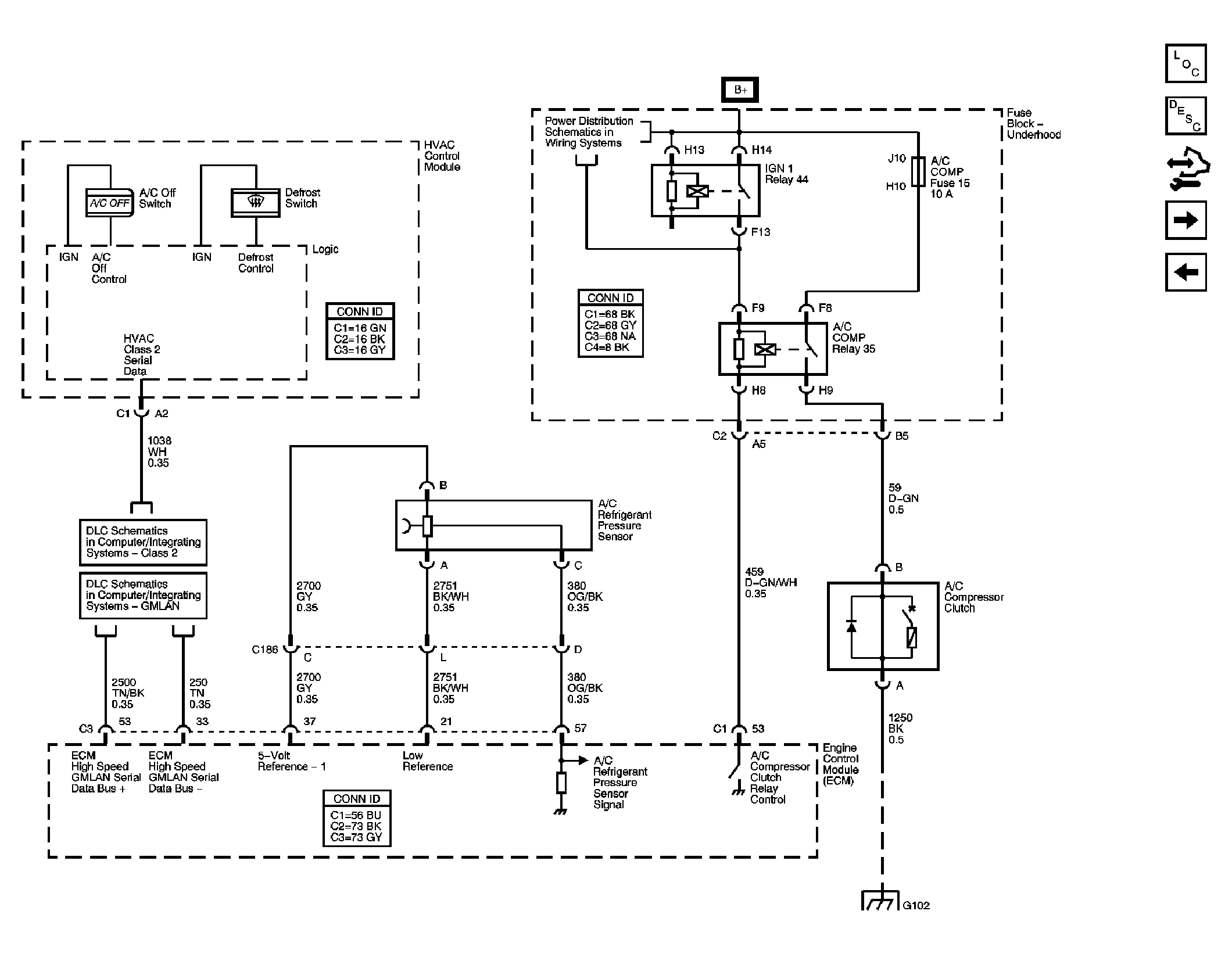

Fig 3: Compressor Controls (LC3)
GM1658073Courtesy of GENERAL MOTORS CORP.

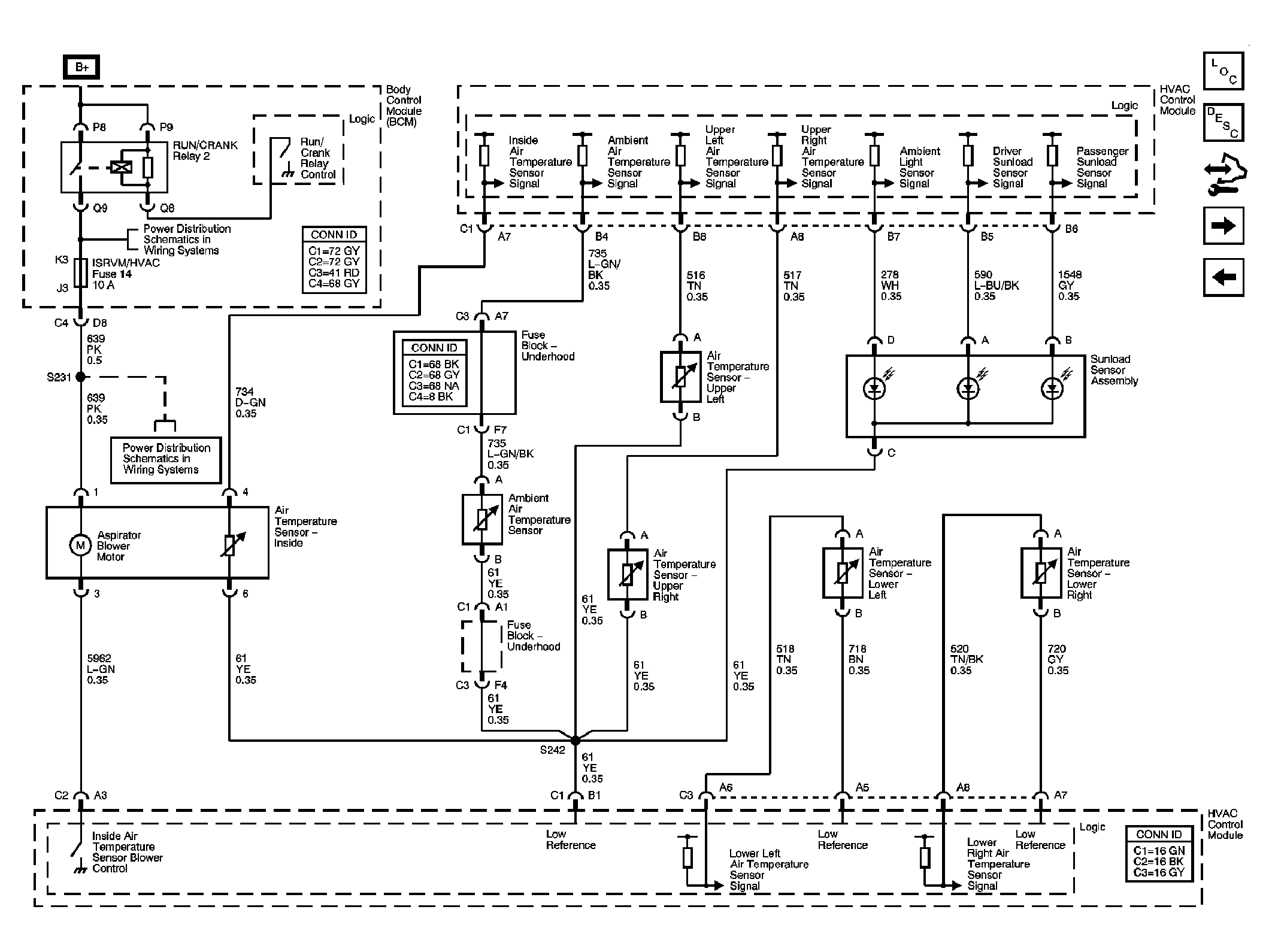

Fig 4: Temperature Sensors
GM1480561Courtesy of GENERAL MOTORS CORP.

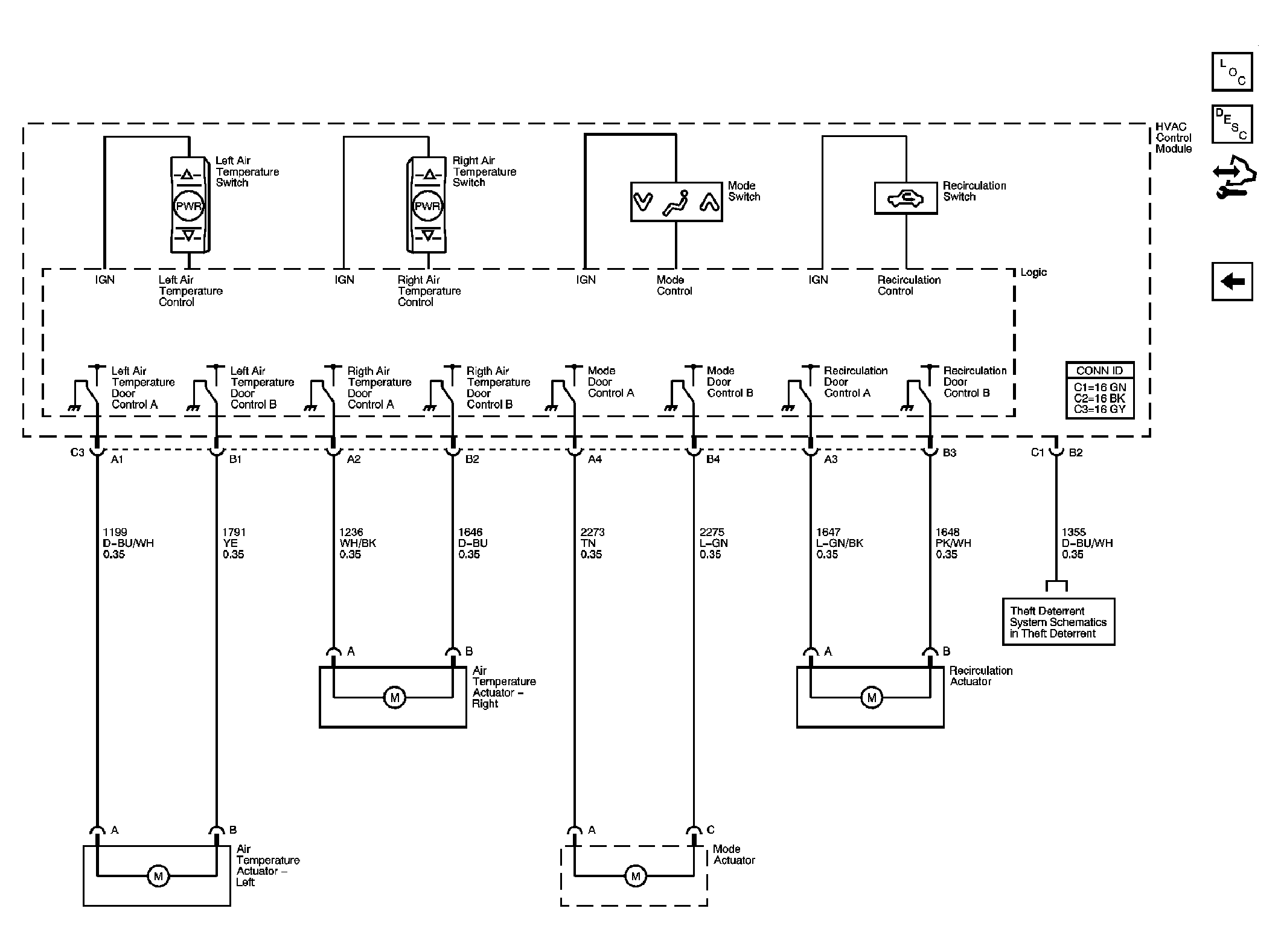

Fig 5: Actuators
GM1686692Courtesy of GENERAL MOTORS CORP.
