Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

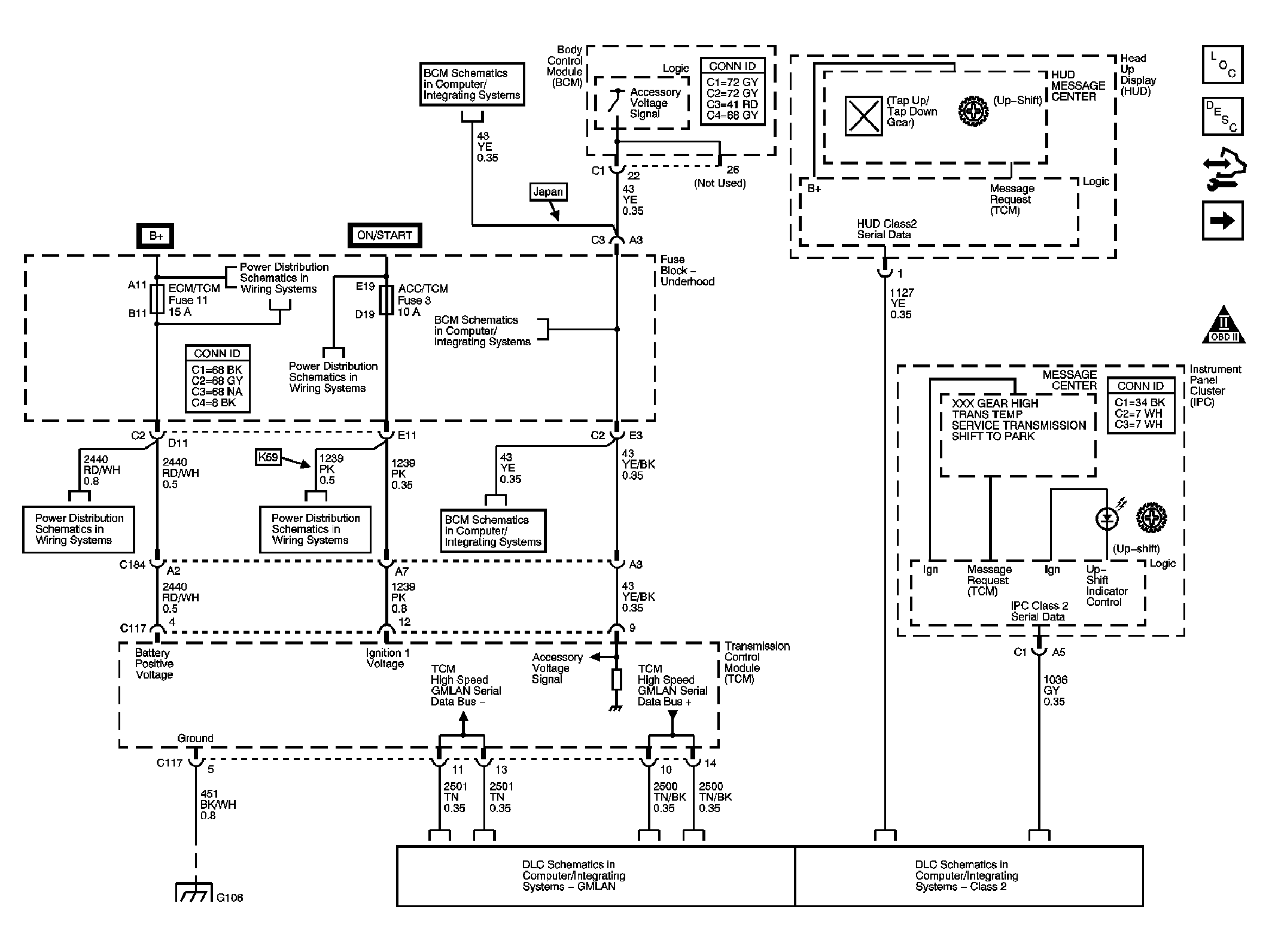

Fig 1: DLC, Ground, MIL, and Power
GM1697315Courtesy of GENERAL MOTORS CORP.
Fig 2: IMS, ISS, Solenoids, TFT, and VSS
GM1480656Courtesy of GENERAL MOTORS CORP.

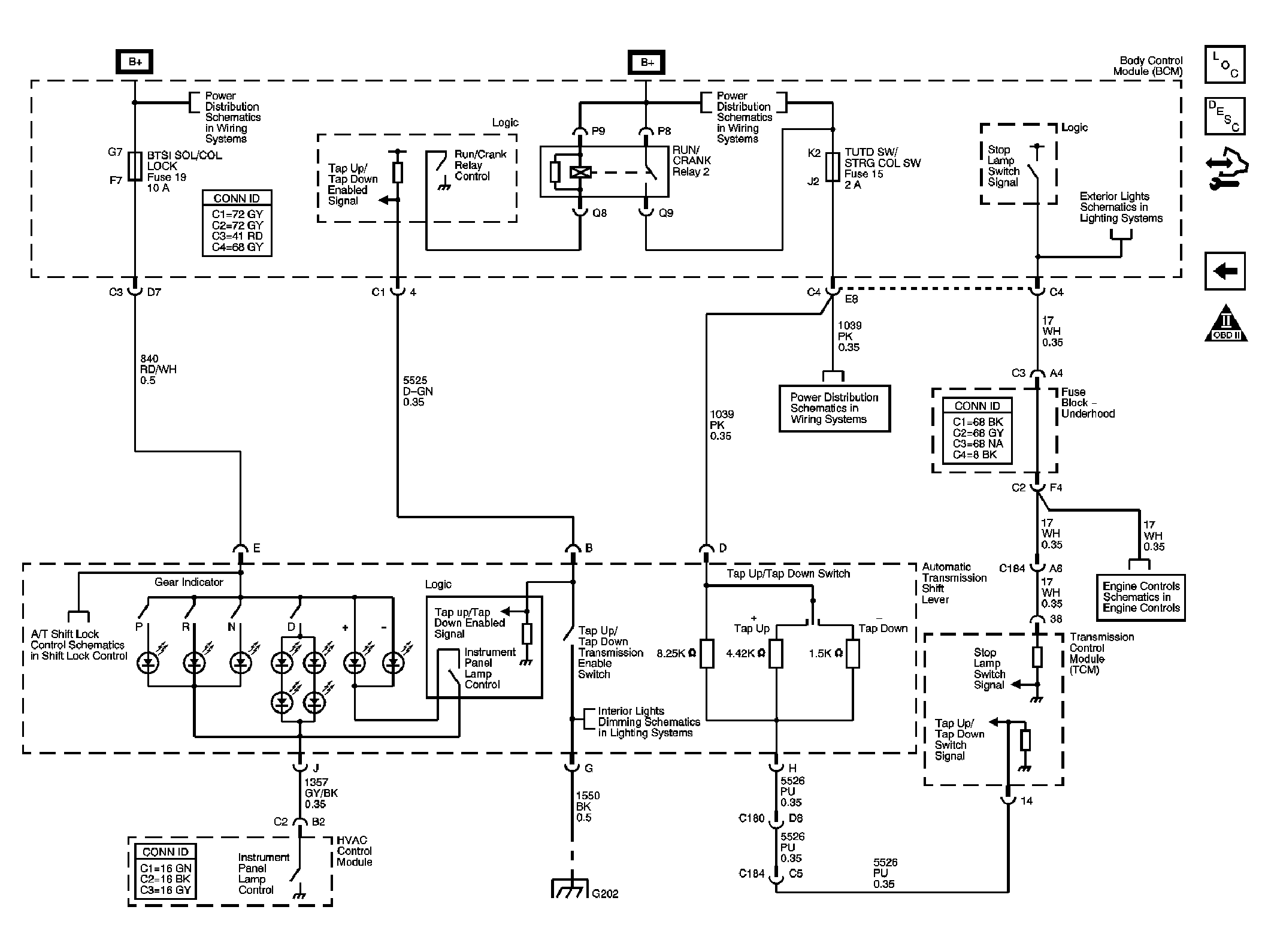

Fig 3: Shift Lever
GM1697321Courtesy of GENERAL MOTORS CORP.
