Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

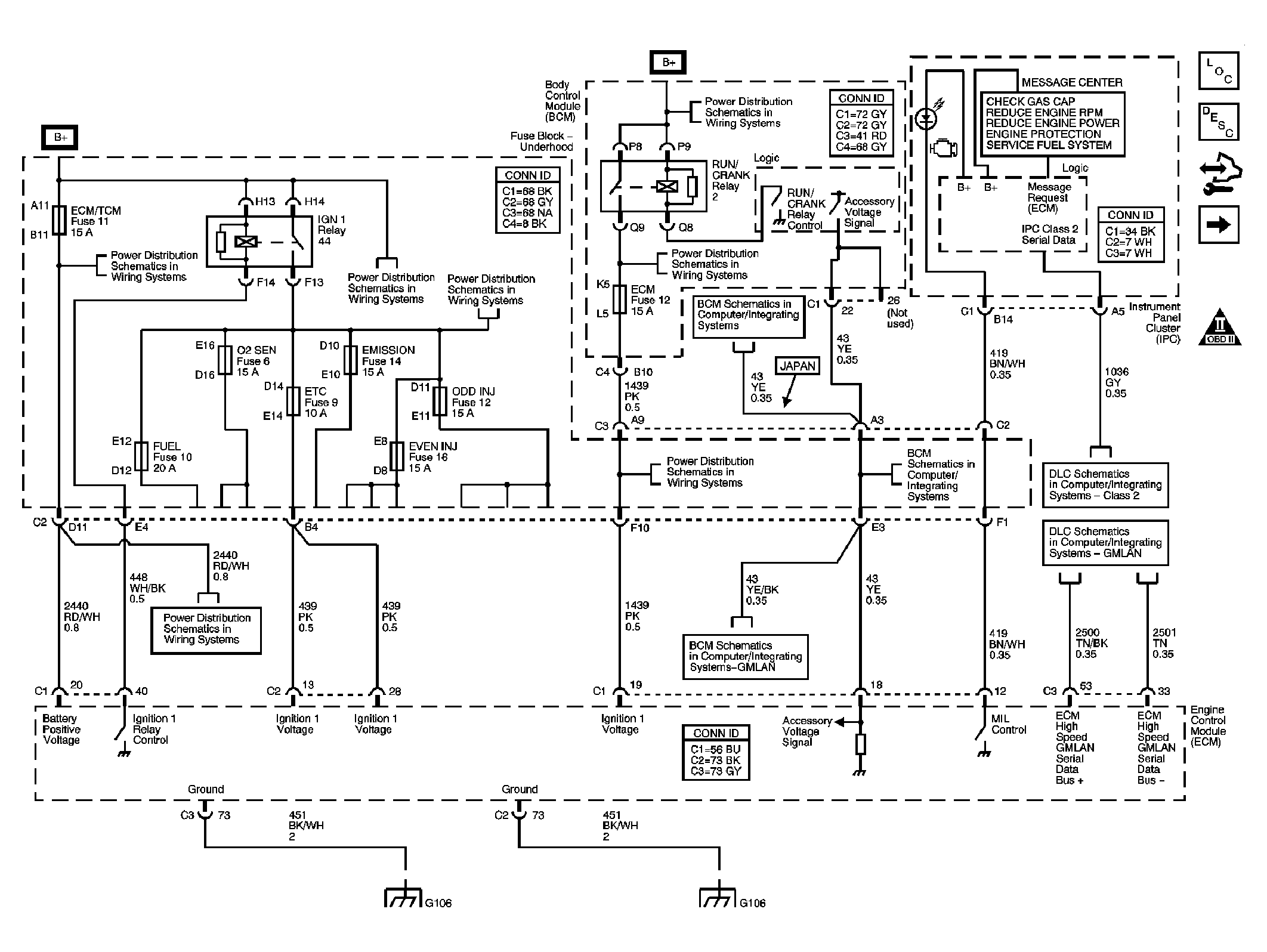

Fig 1: DLC, Ground, MIL, and Power

Courtesy of GENERAL MOTORS CORP.

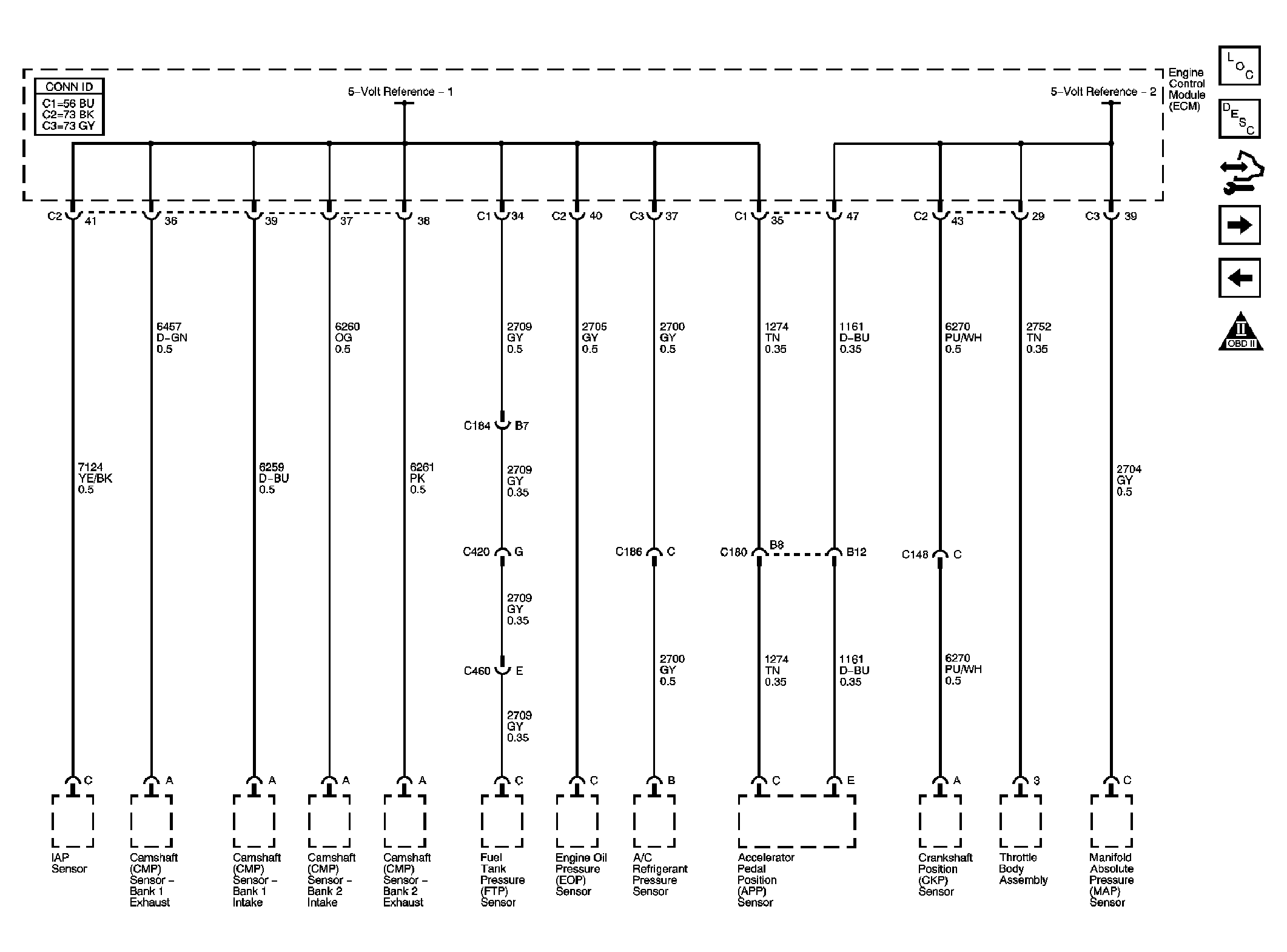

Fig 2: 5-Volt Reference Bussing

Courtesy of GENERAL MOTORS CORP.

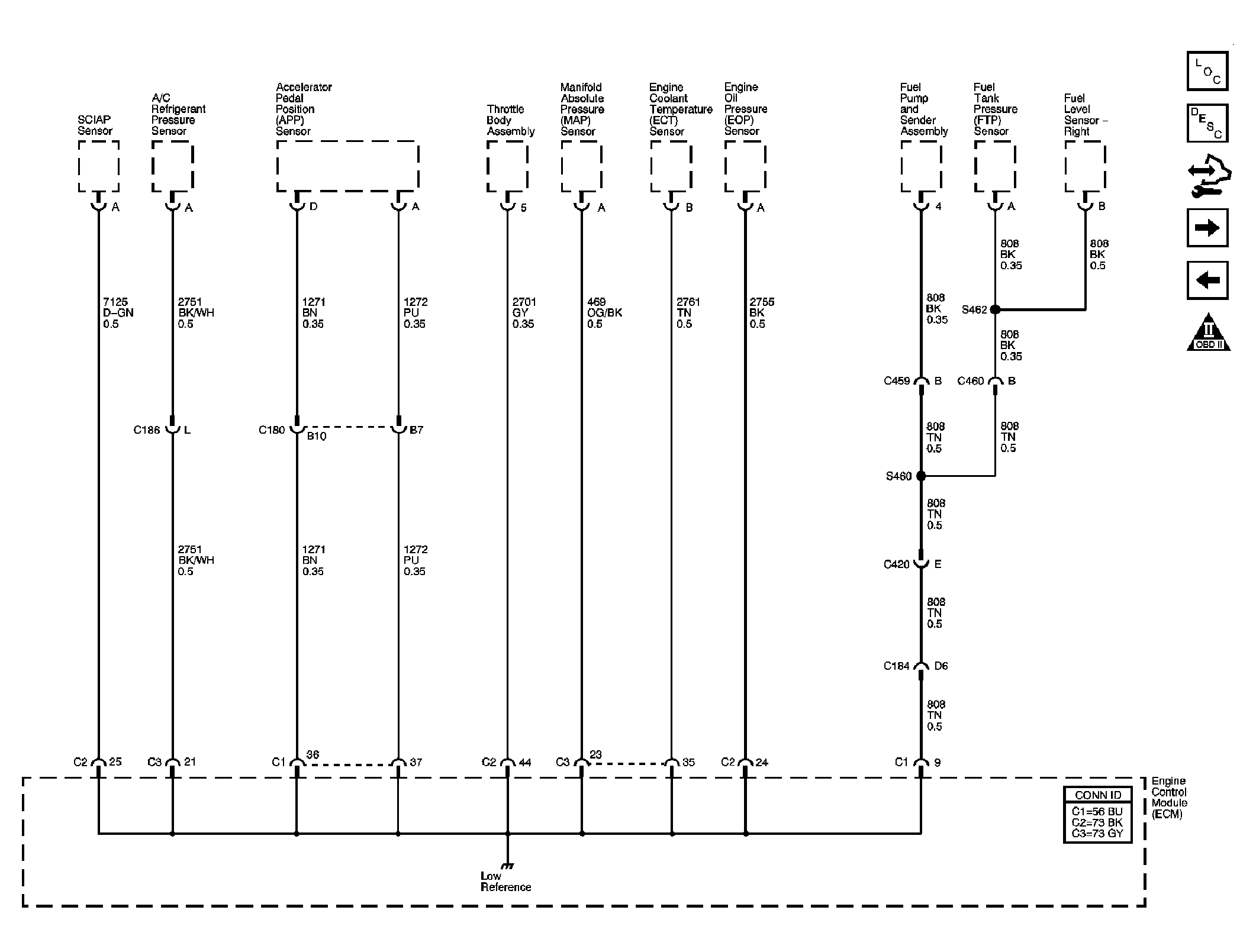

Fig 3: Low Reference Bussing

Courtesy of GENERAL MOTORS CORP.

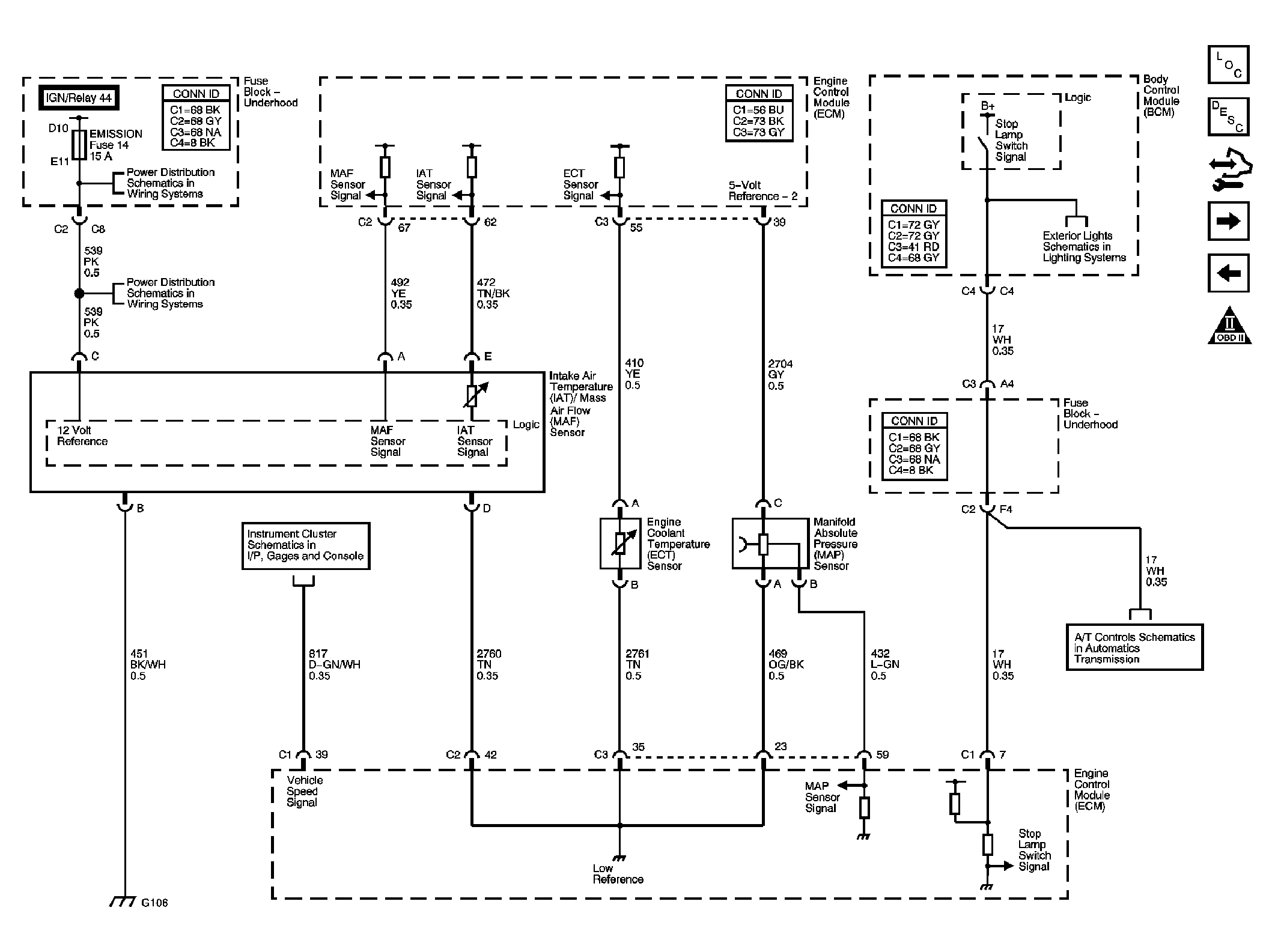

Fig 4: Engine Data Sensors - ECT, MAP & MAF/IAT

Courtesy of GENERAL MOTORS CORP.

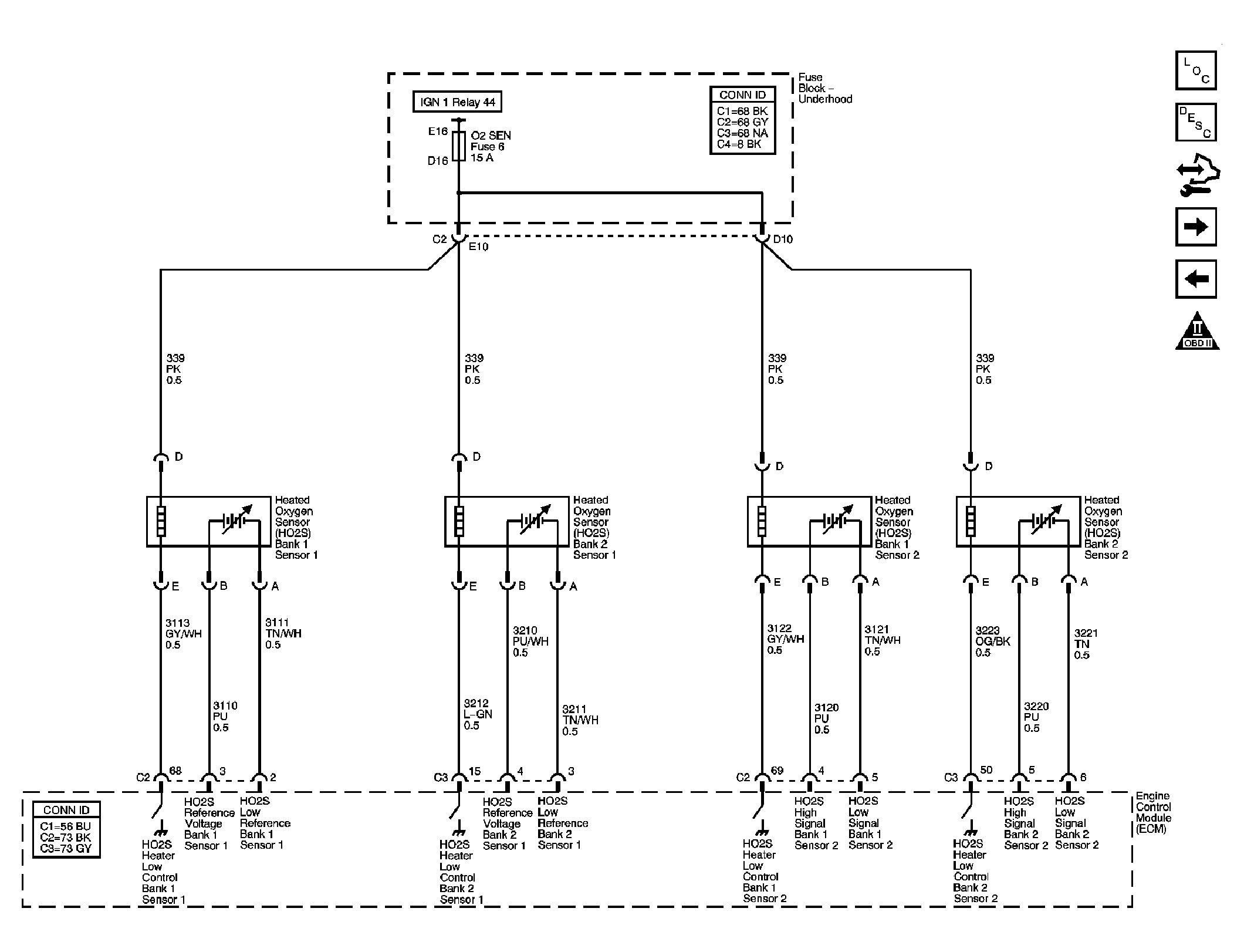

Fig 5: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

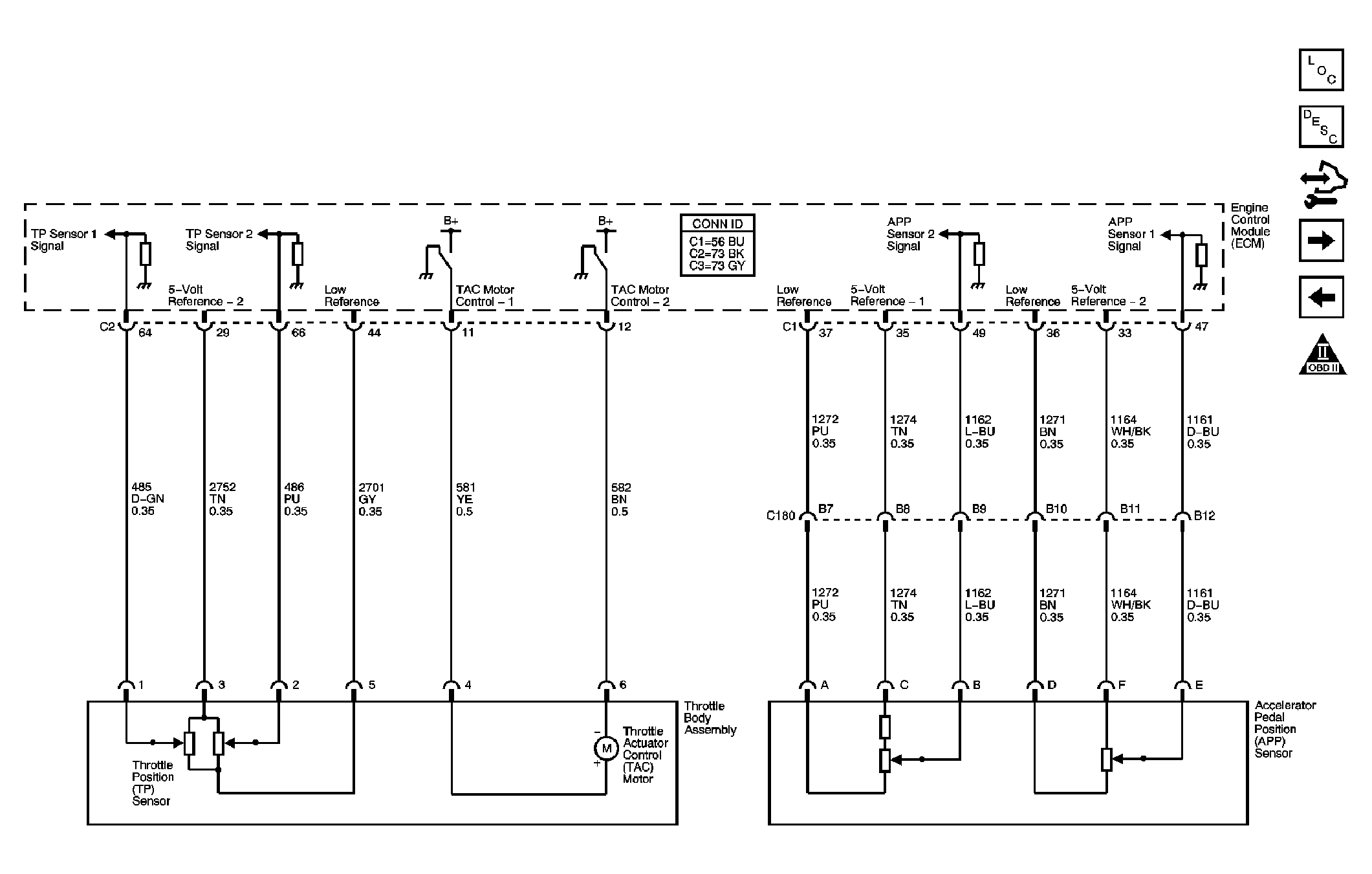

Fig 6: Engine Data Sensors - Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

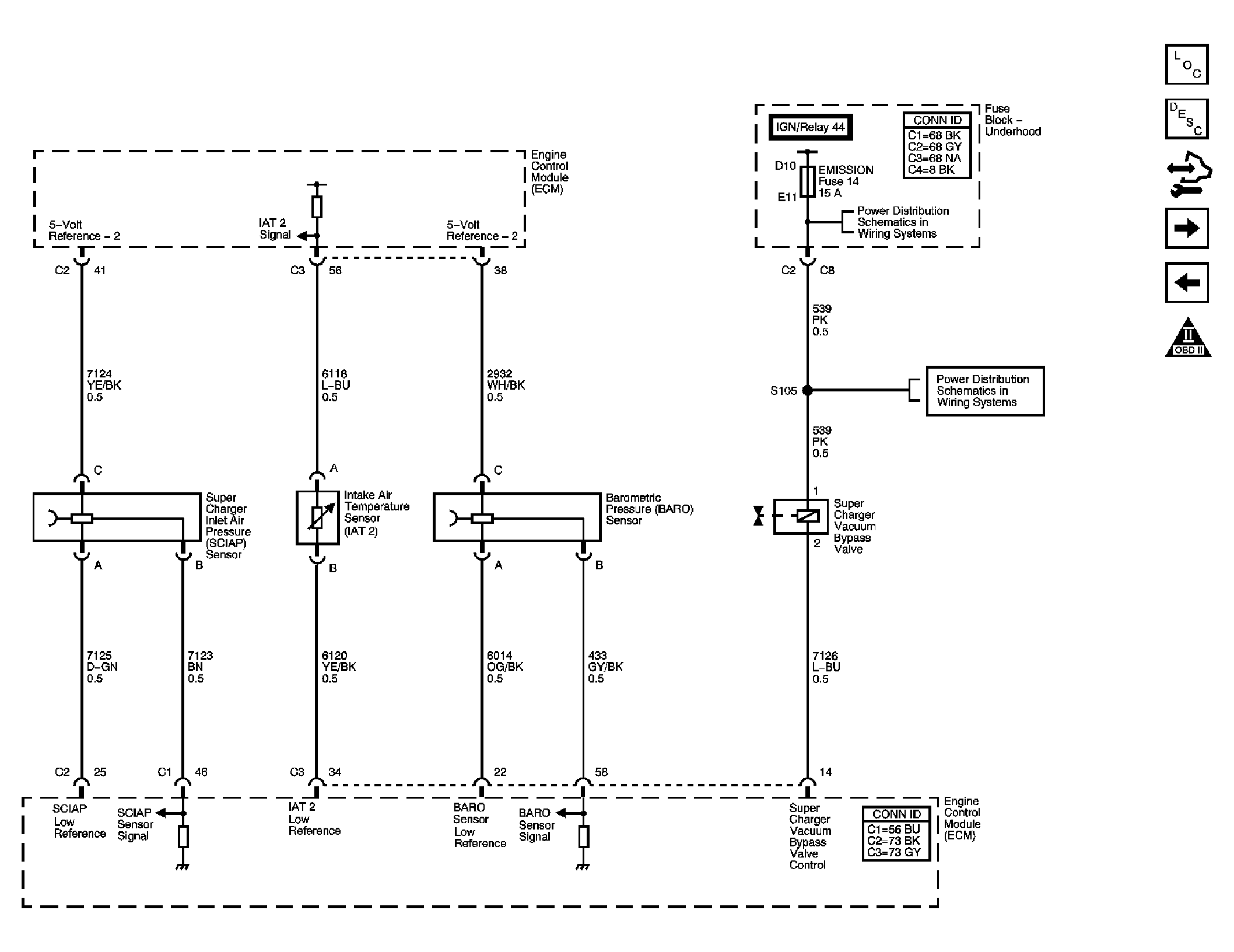

Fig 7: Engine Data Sensors - SCIAP, IAT2, BARO and Supercharger Vacuum Bypass Valve

Courtesy of GENERAL MOTORS CORP.

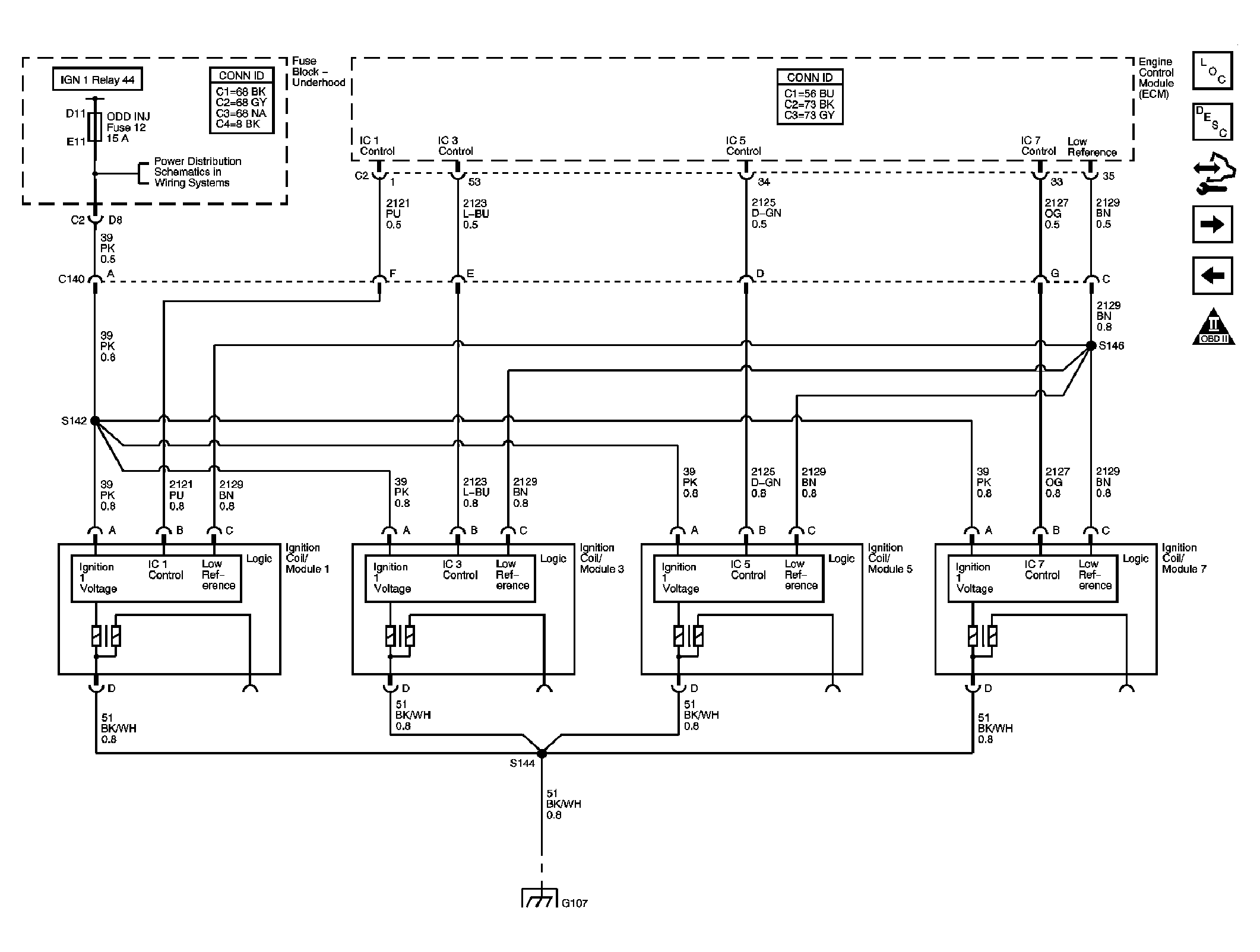

Fig 8: Ignition System - Bank 1

Courtesy of GENERAL MOTORS CORP.

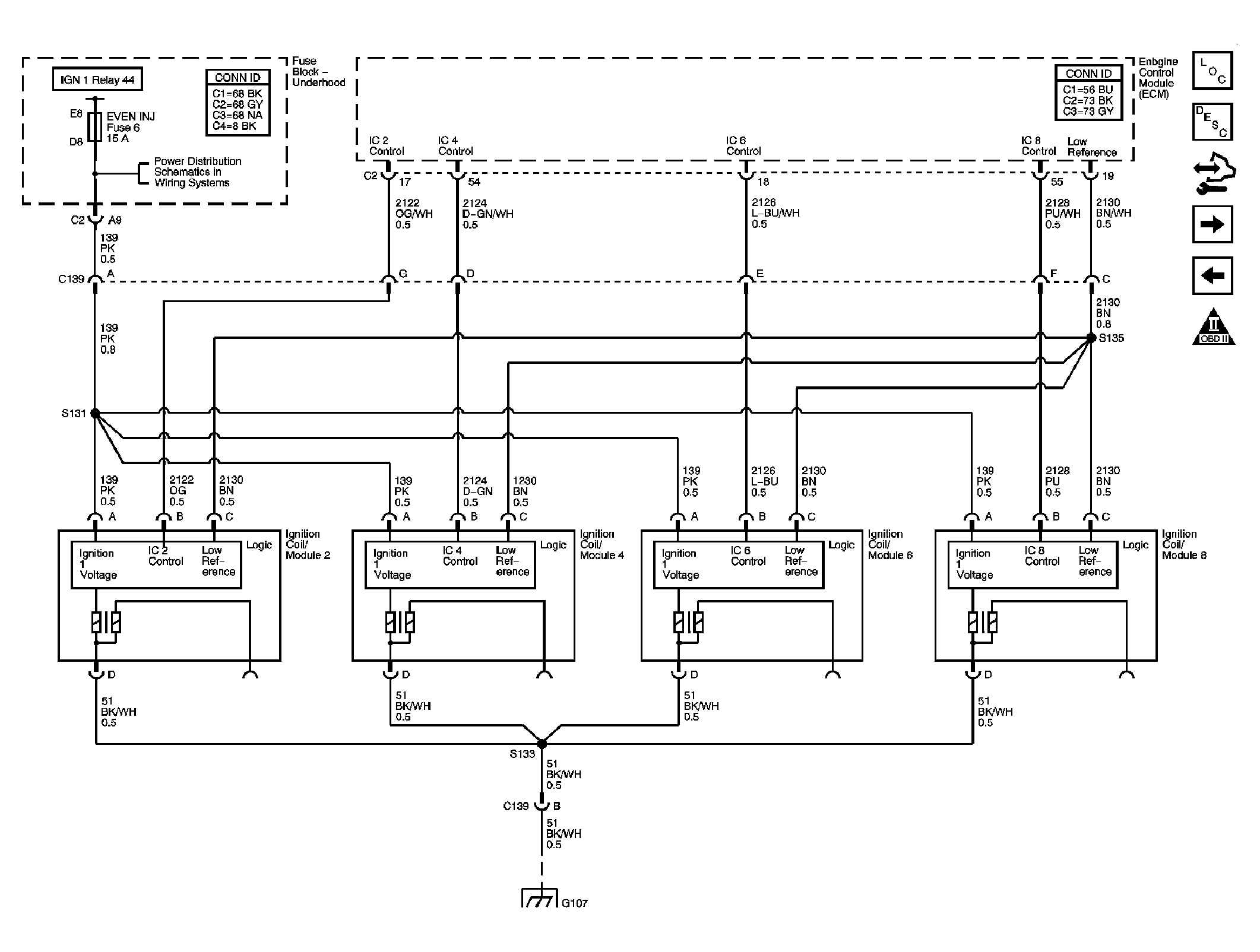

Fig 9: Ignition System - Bank 2

Courtesy of GENERAL MOTORS CORP.

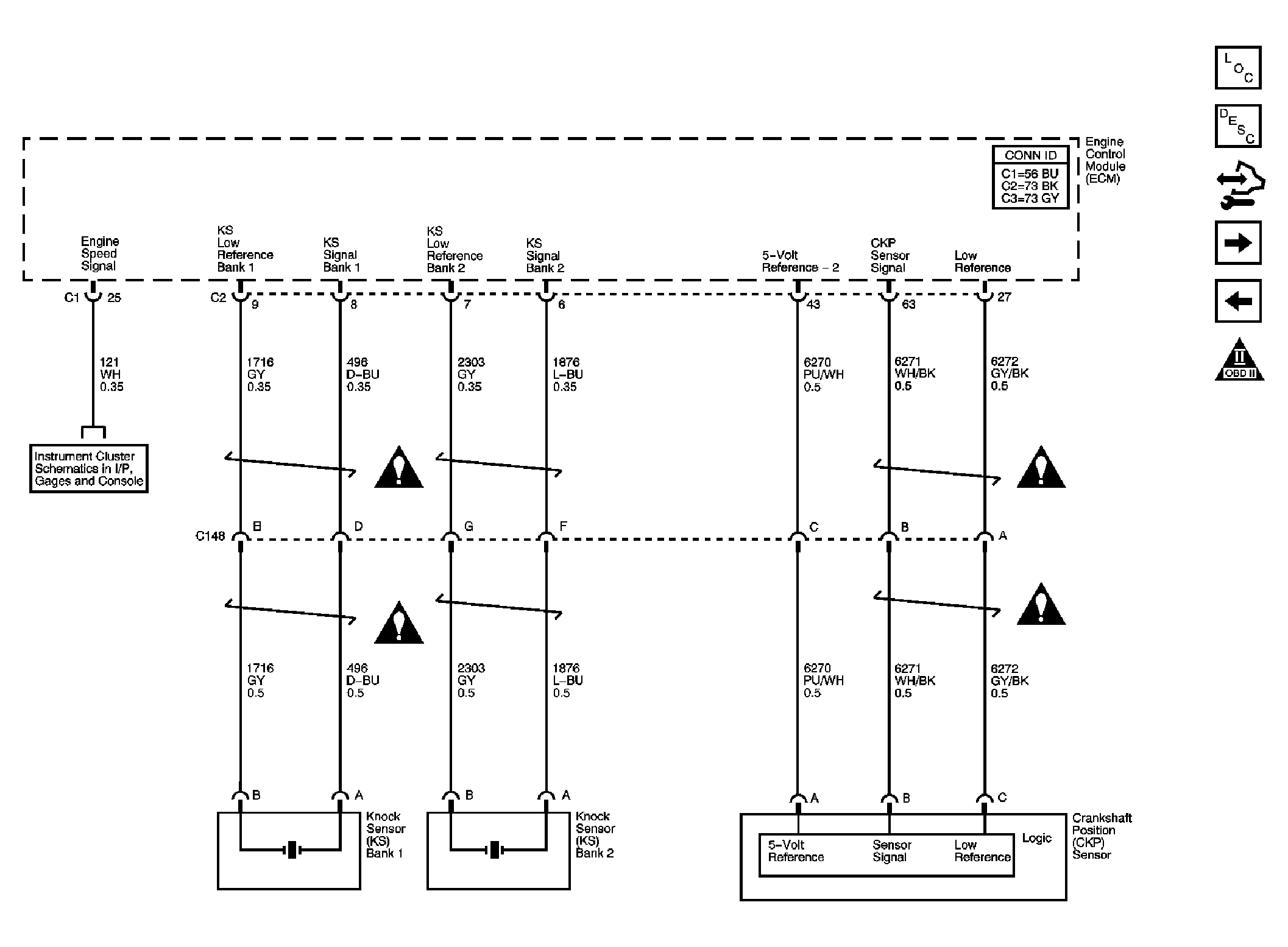

Fig 10: Ignition Controls - CKP and KS Sensors

Courtesy of GENERAL MOTORS CORP.

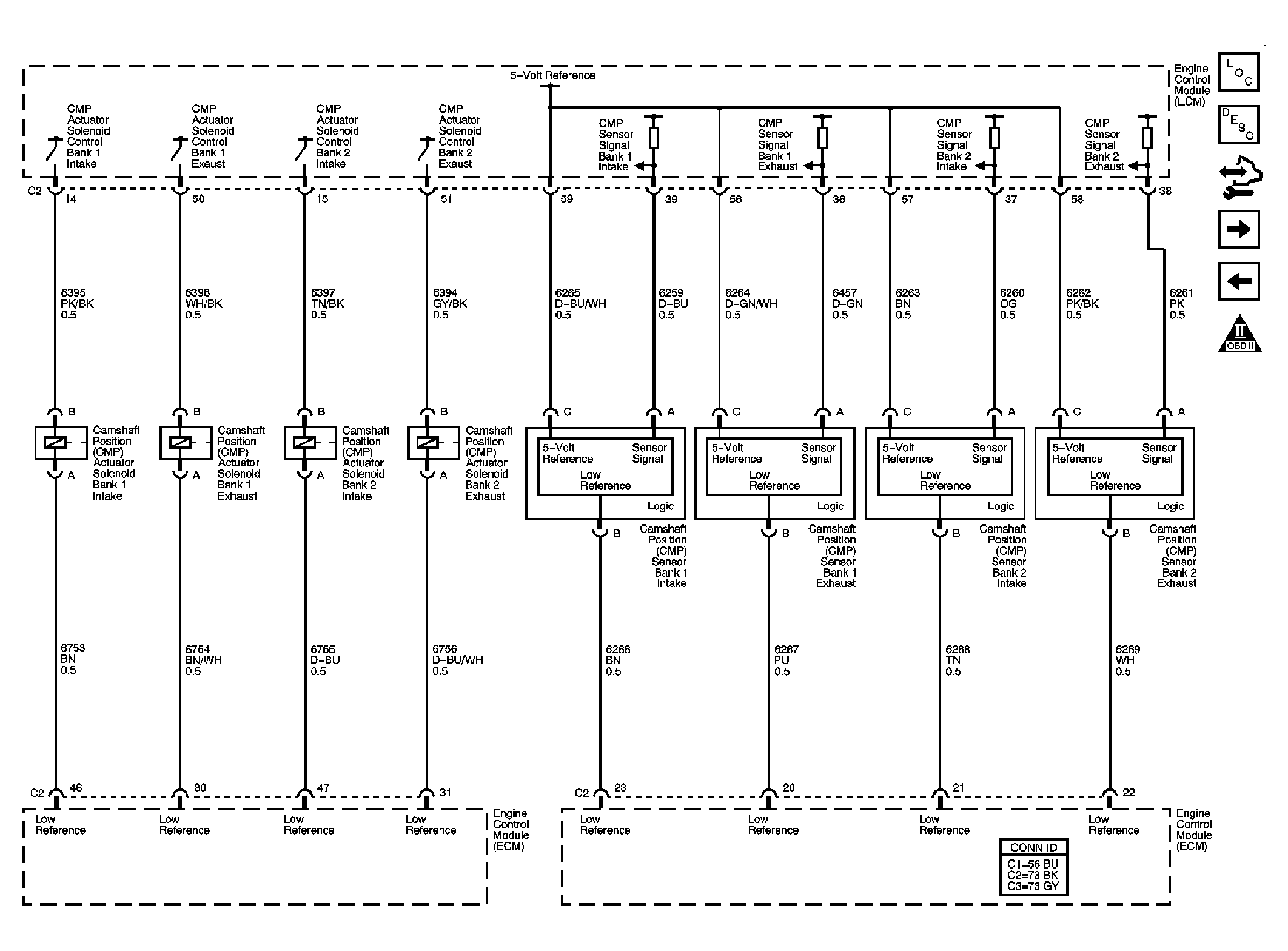

Fig 11: Ignition Controls - CMP Sensors and Solenoids

Courtesy of GENERAL MOTORS CORP.

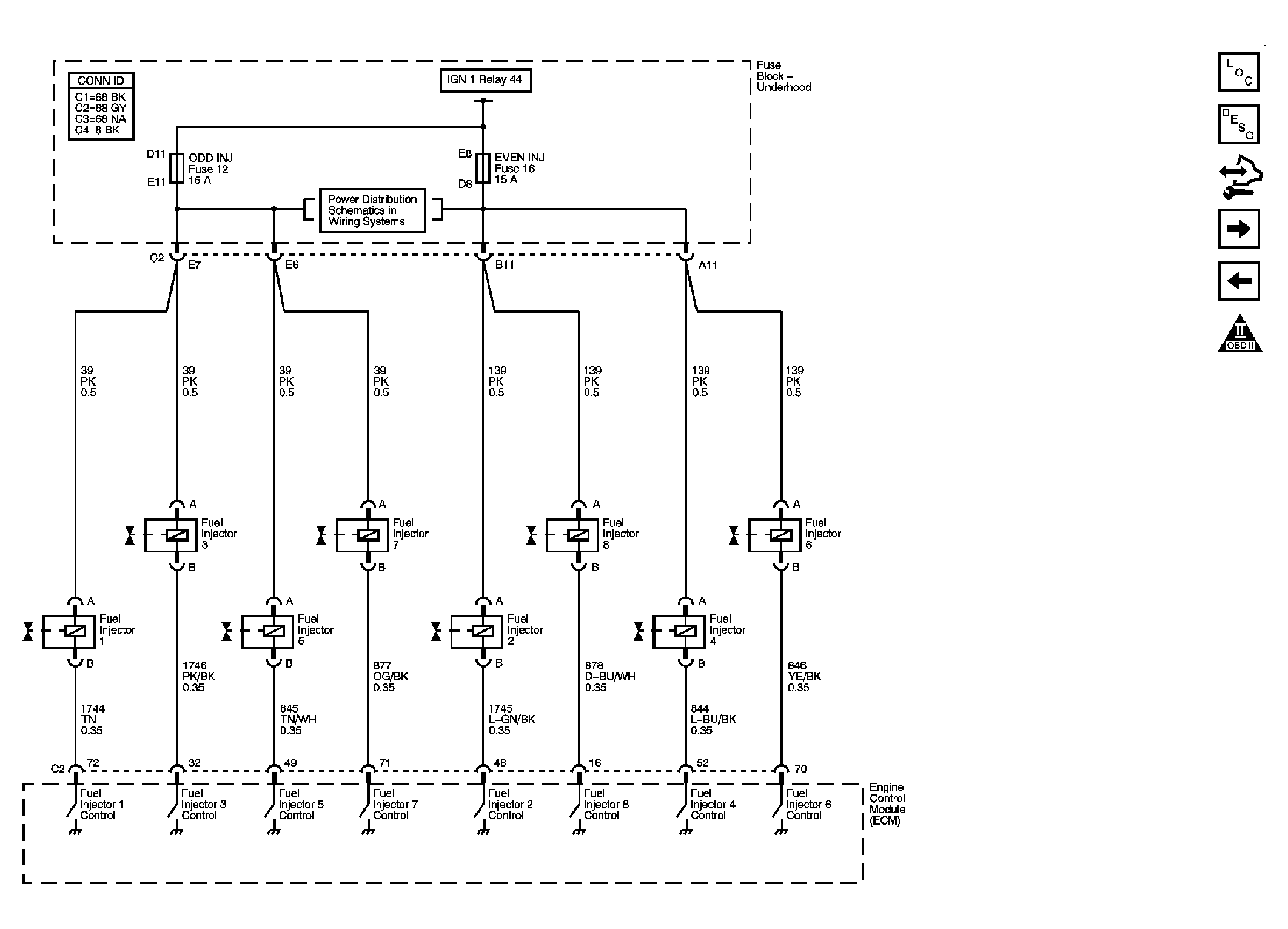

Fig 12: Fuel Controls - Fuel Injectors and Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

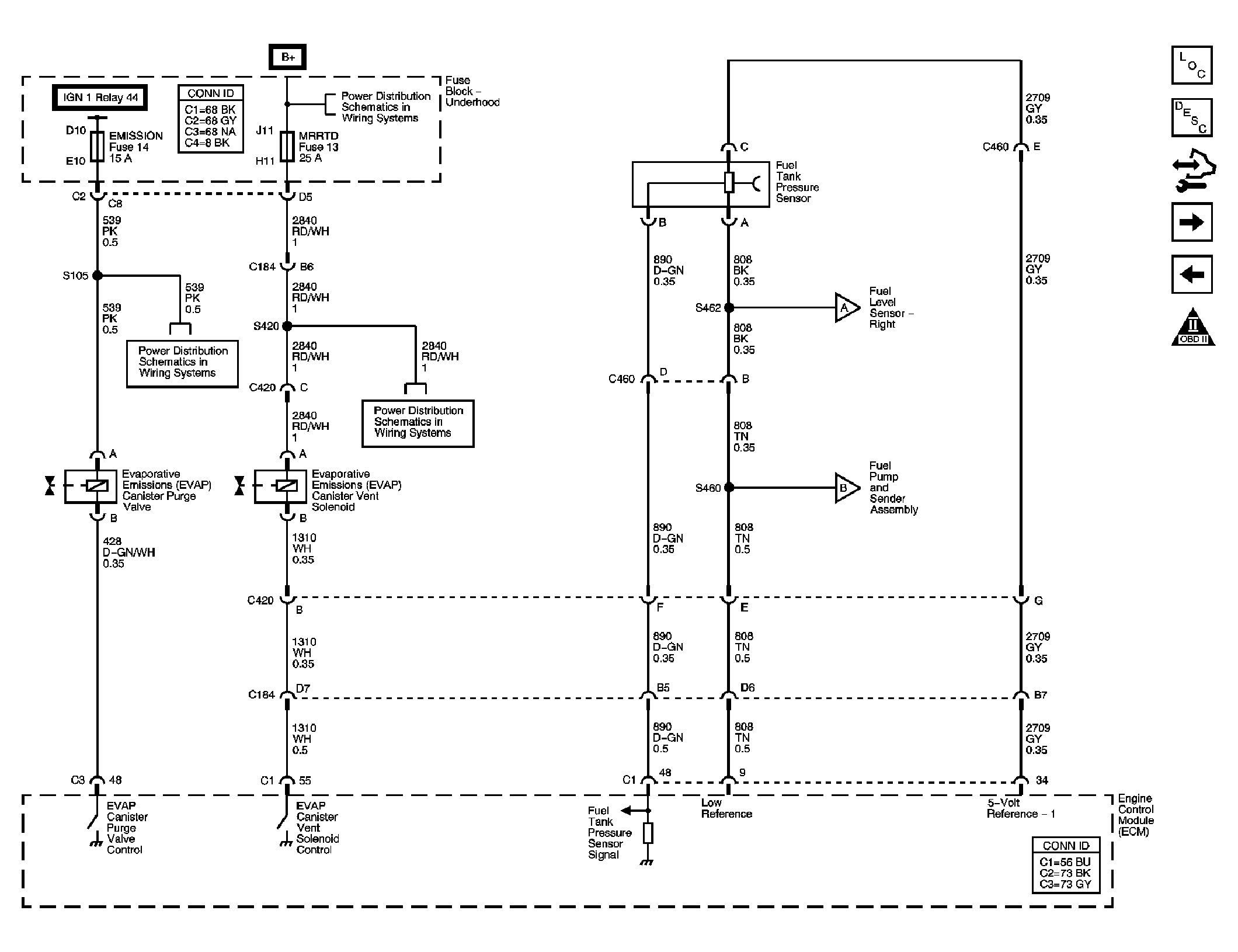

Fig 13: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

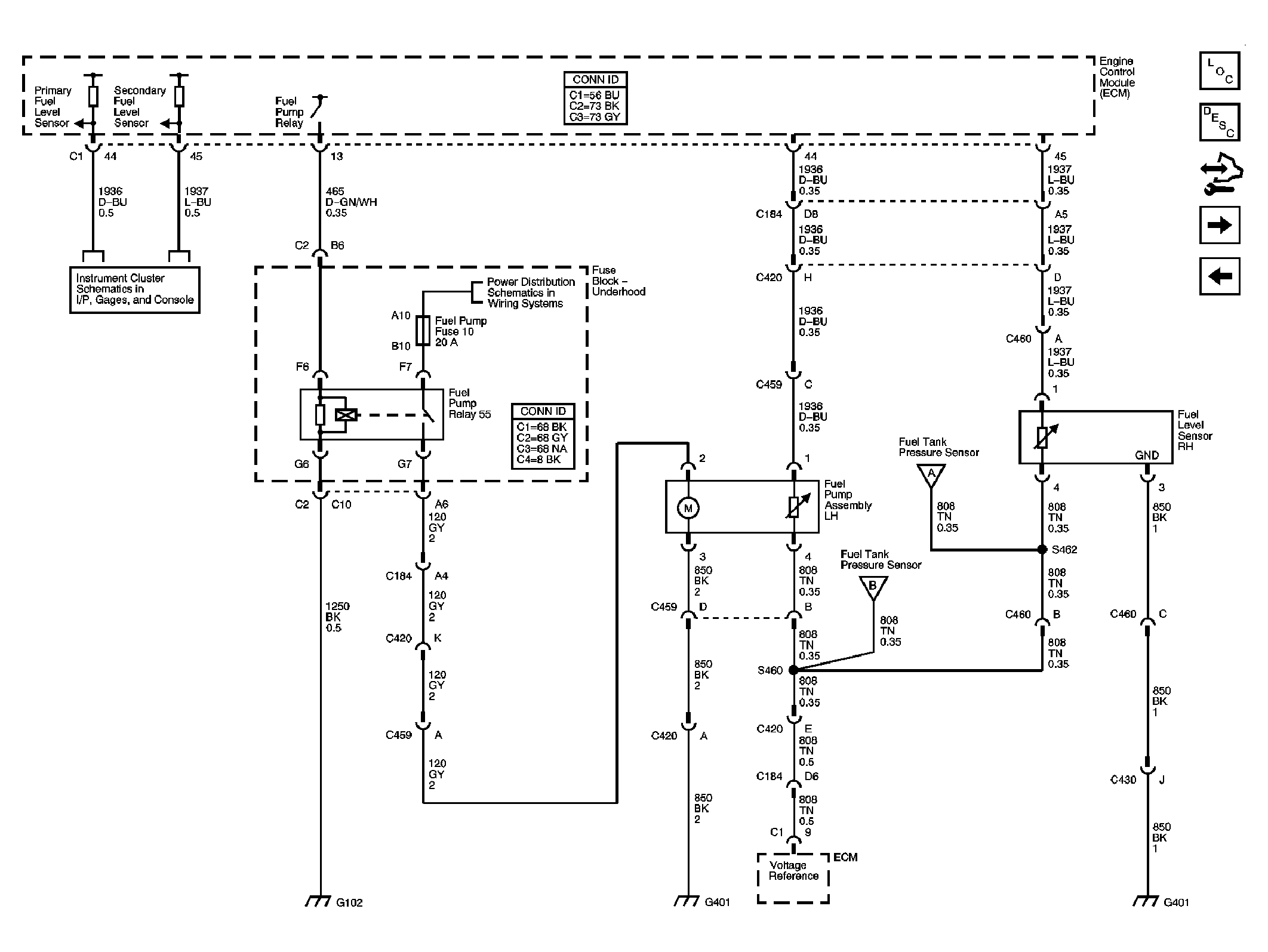

Fig 14: Fuel Controls - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

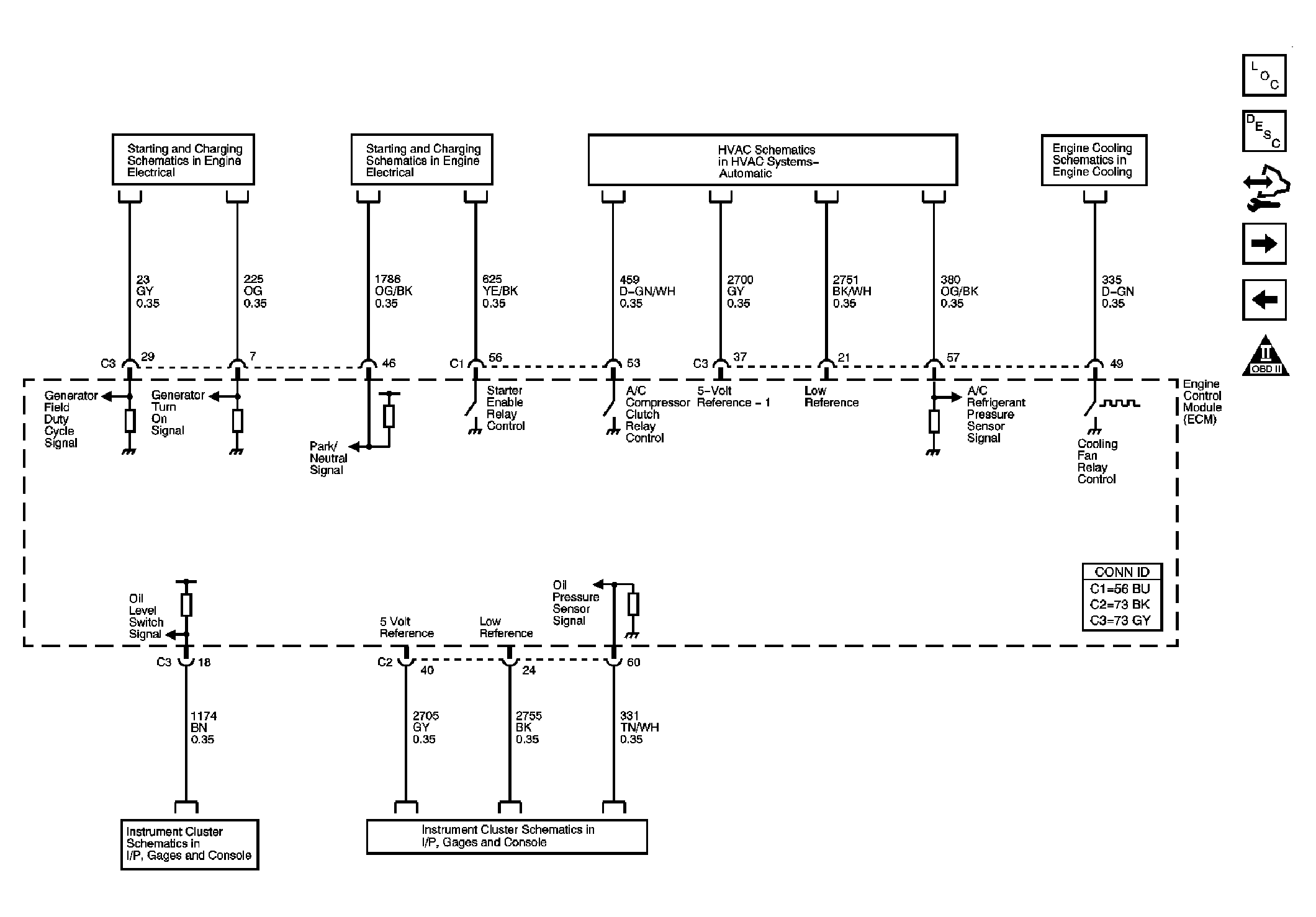

Fig 15: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

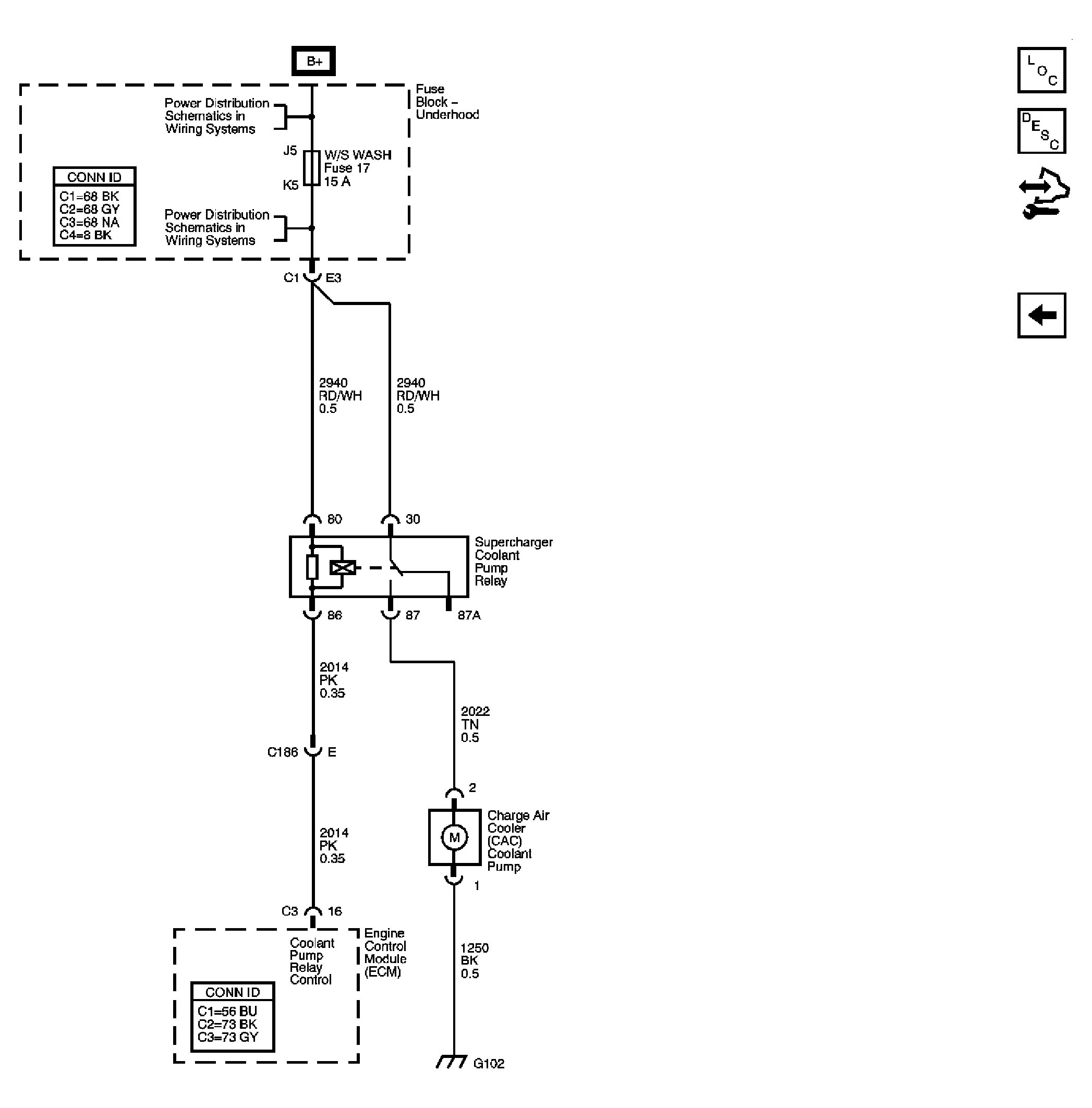

Fig 16: Charge Air Cooler (CAC) Coolant Pump

Courtesy of GENERAL MOTORS CORP.
