Engine Cooling Schematics

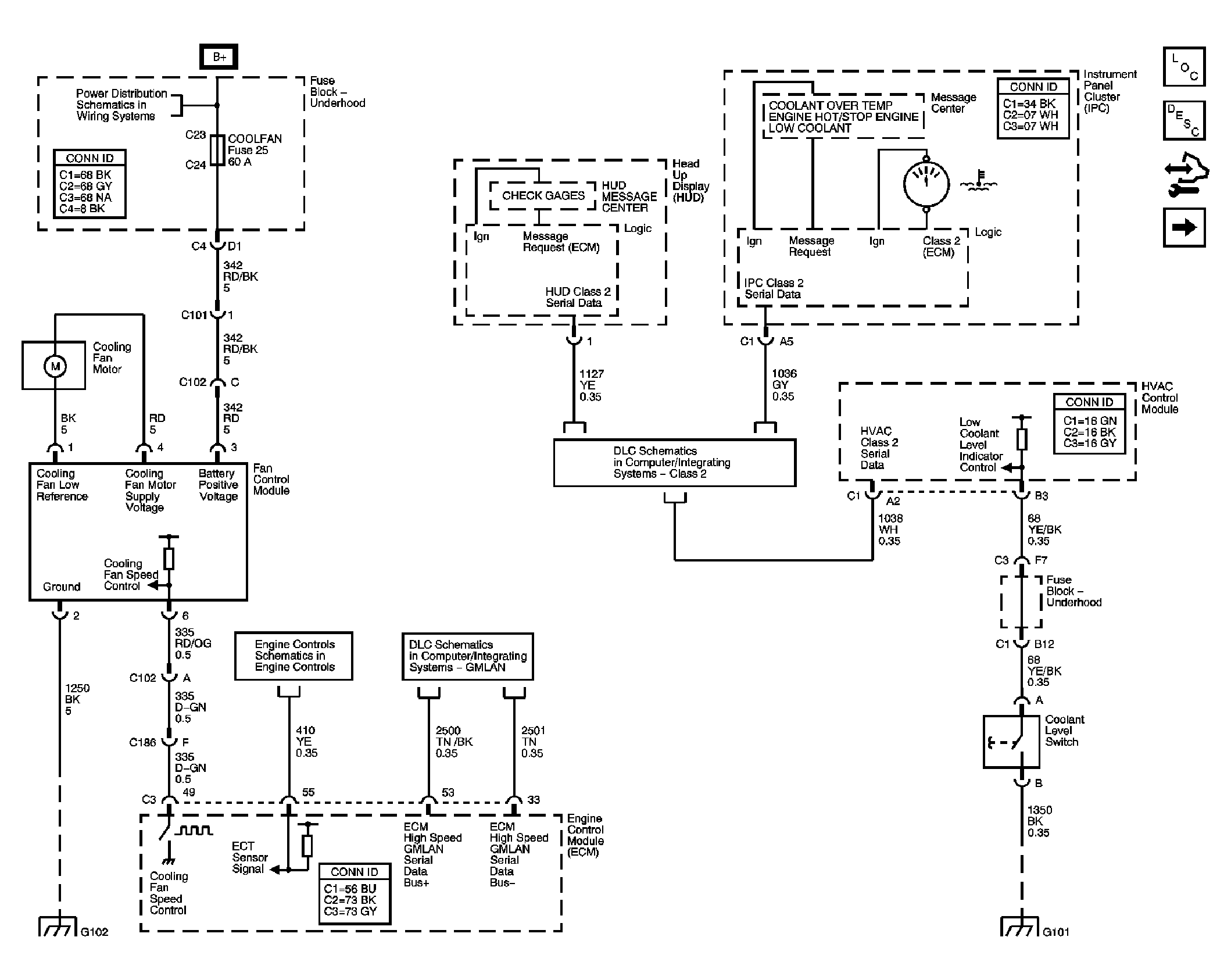

Fig 1: Engine Cooling Schematic - LC3

GM1658054

Courtesy of GENERAL MOTORS CORP.

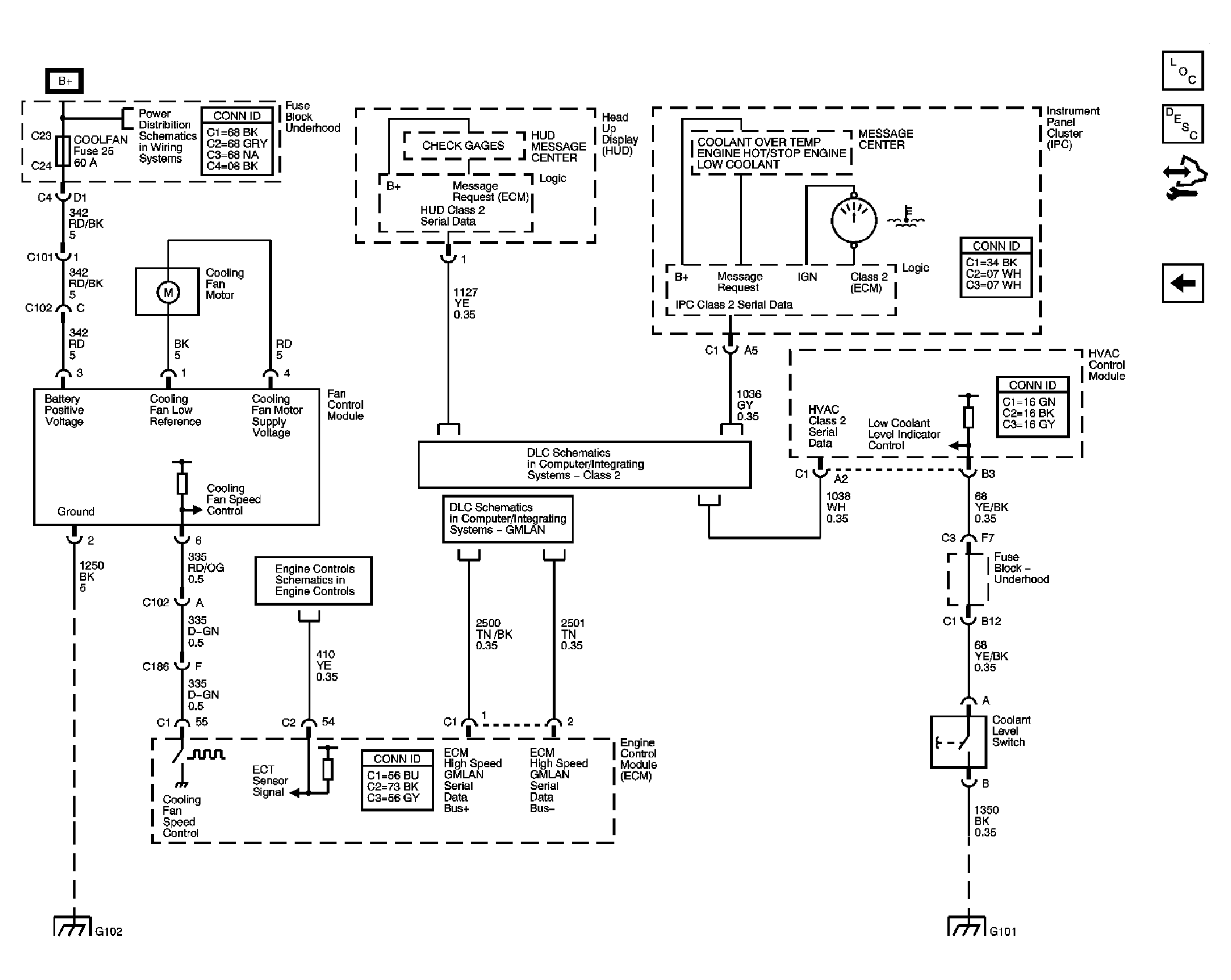

Fig 2: Engine Cooling Schematic - LH2

GM1593918

Courtesy of GENERAL MOTORS CORP.
