Instrument Cluster Schematics

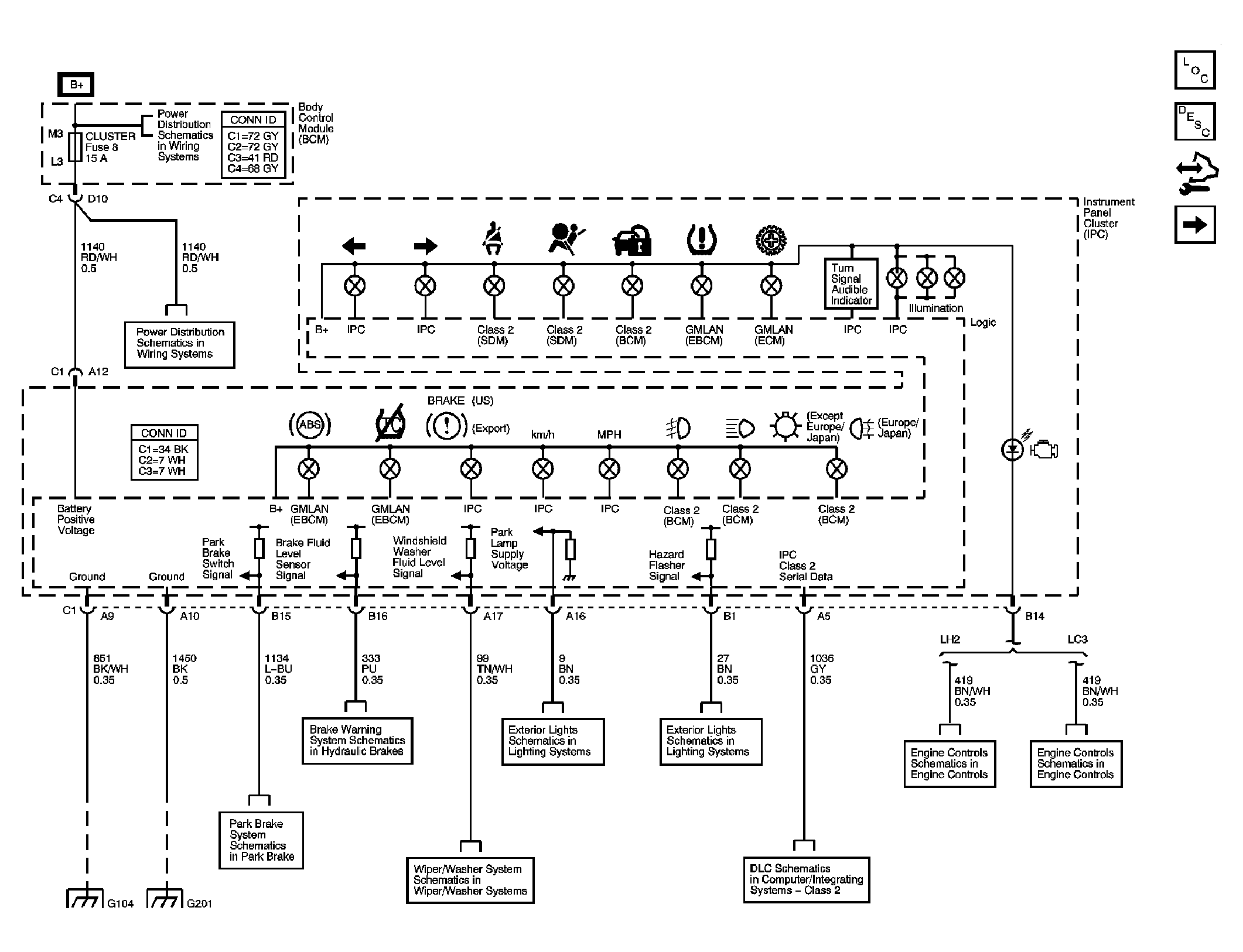

Fig 1: DLC, Ground, Indicators and Power
GM1709746Courtesy of GENERAL MOTORS CORP.

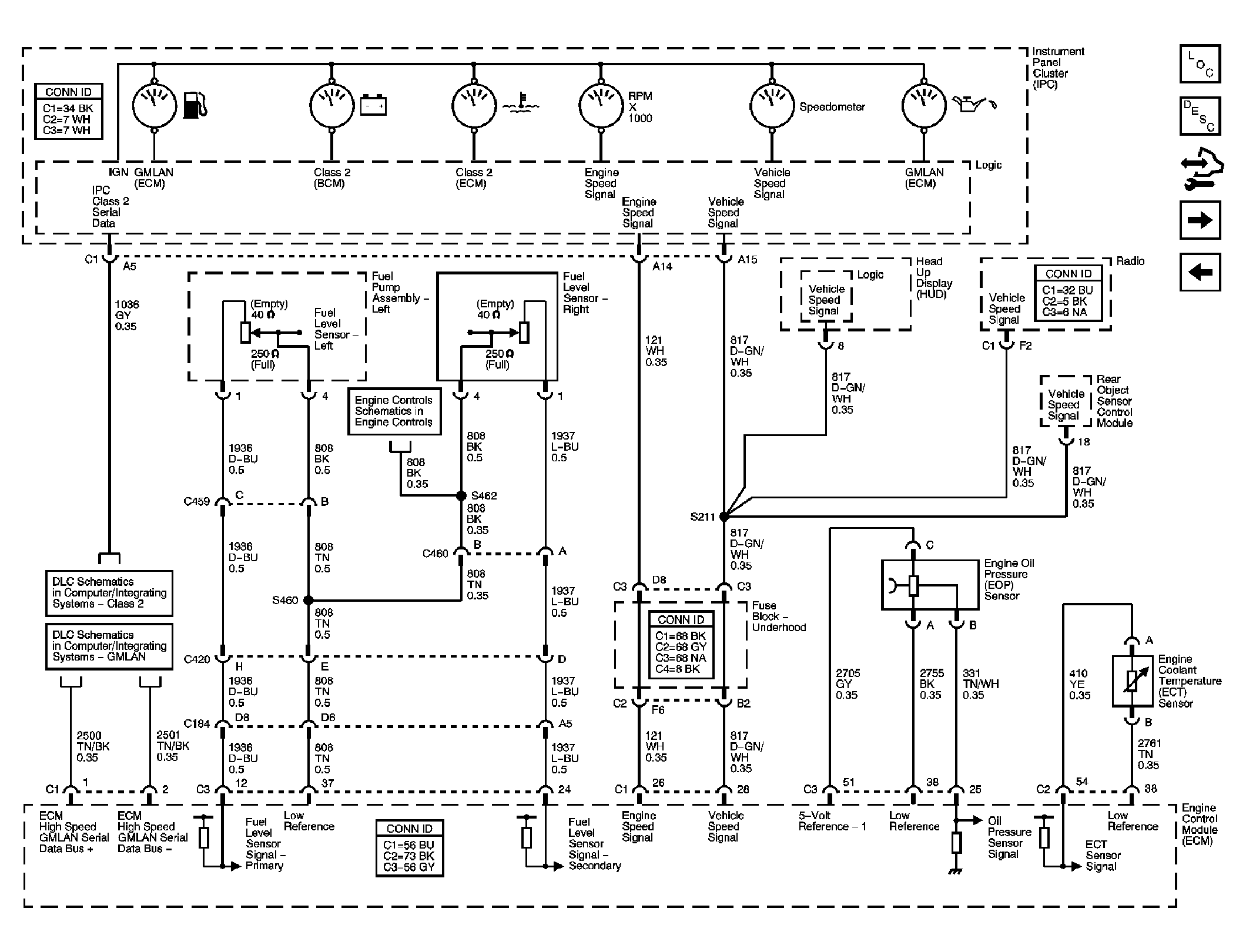

Fig 2: Gages (LH2)
GM1687358Courtesy of GENERAL MOTORS CORP.

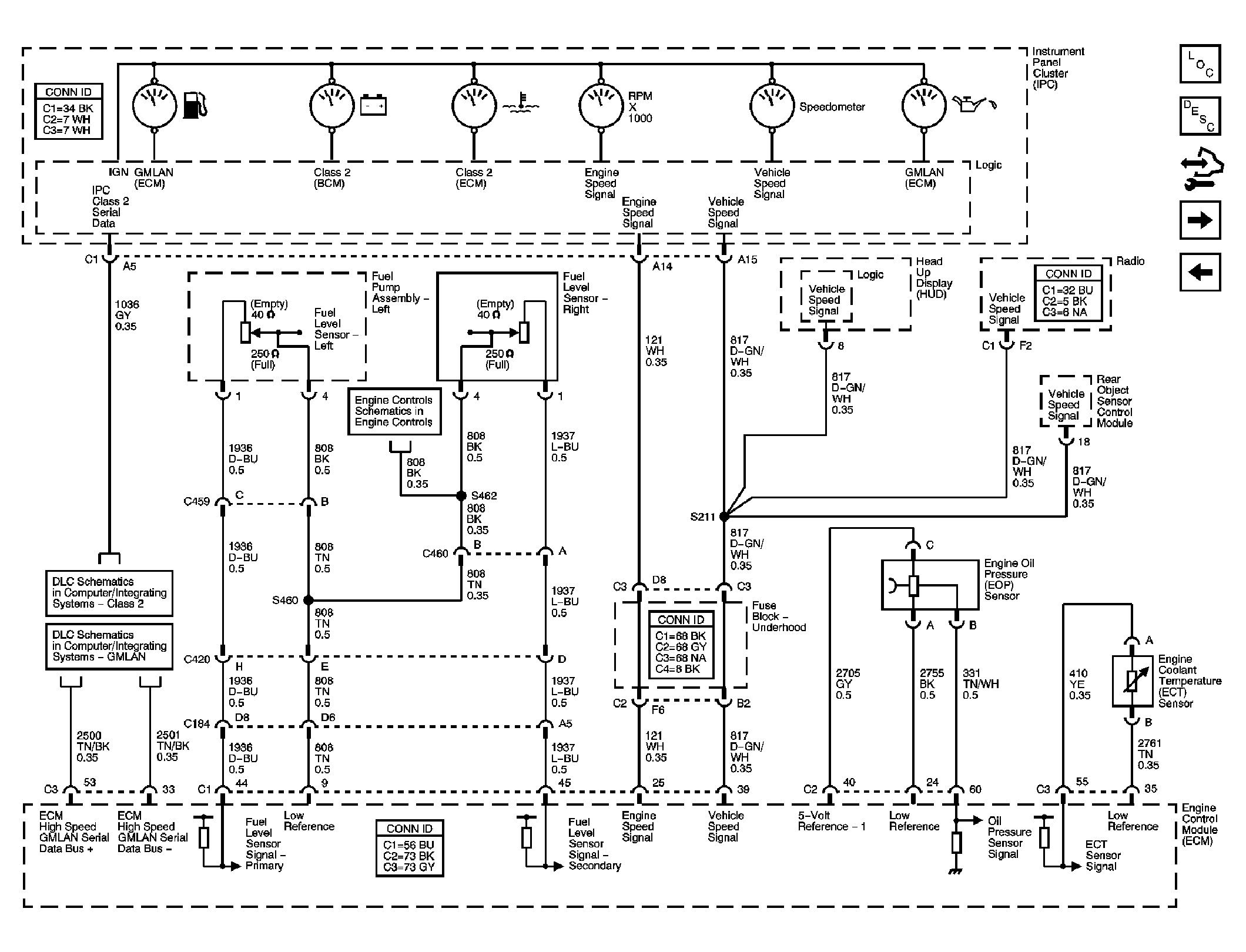

Fig 3: Gages (LC3)
GM1658059Courtesy of GENERAL MOTORS CORP.

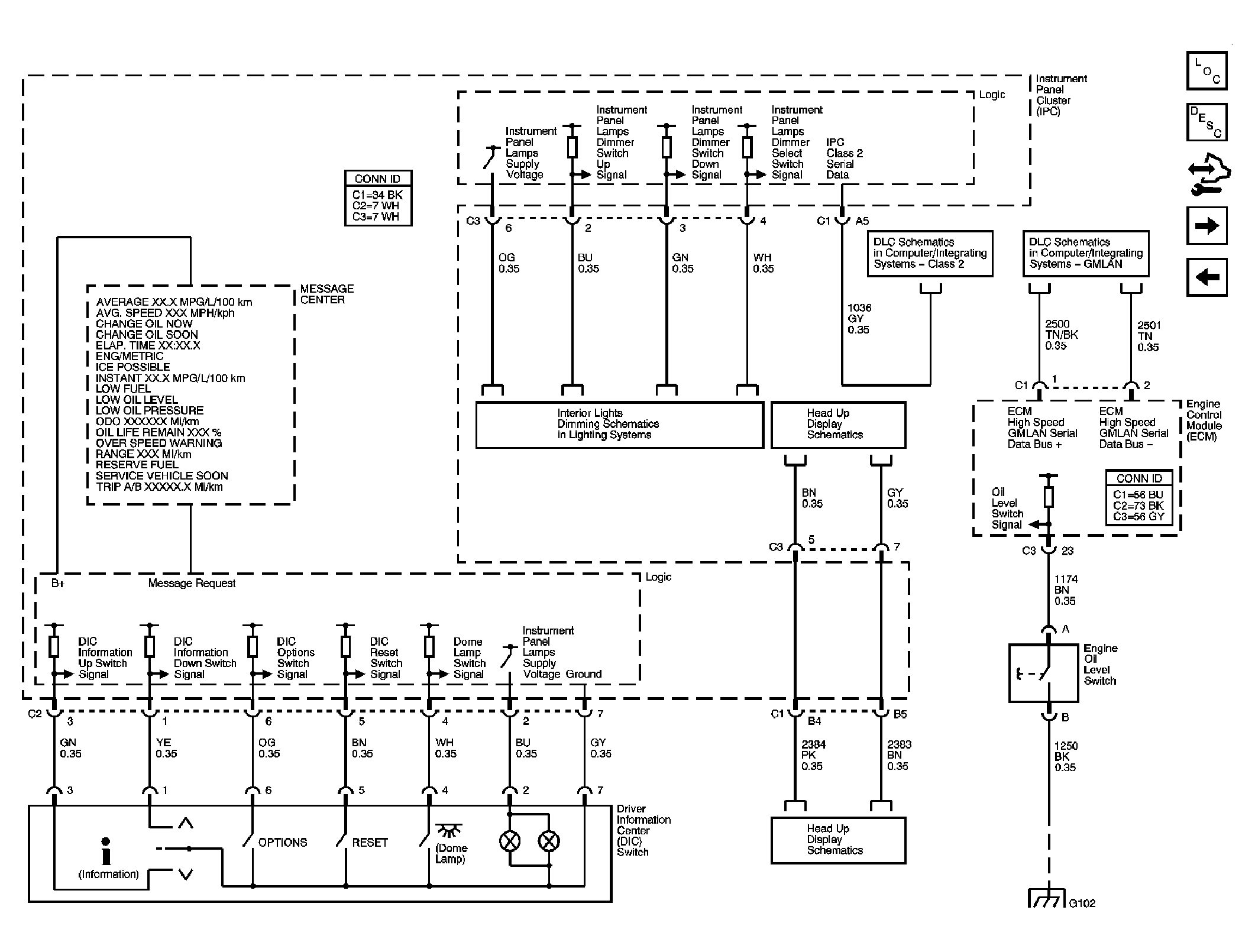

Fig 4: Messages (LH2)
GM1687353Courtesy of GENERAL MOTORS CORP.

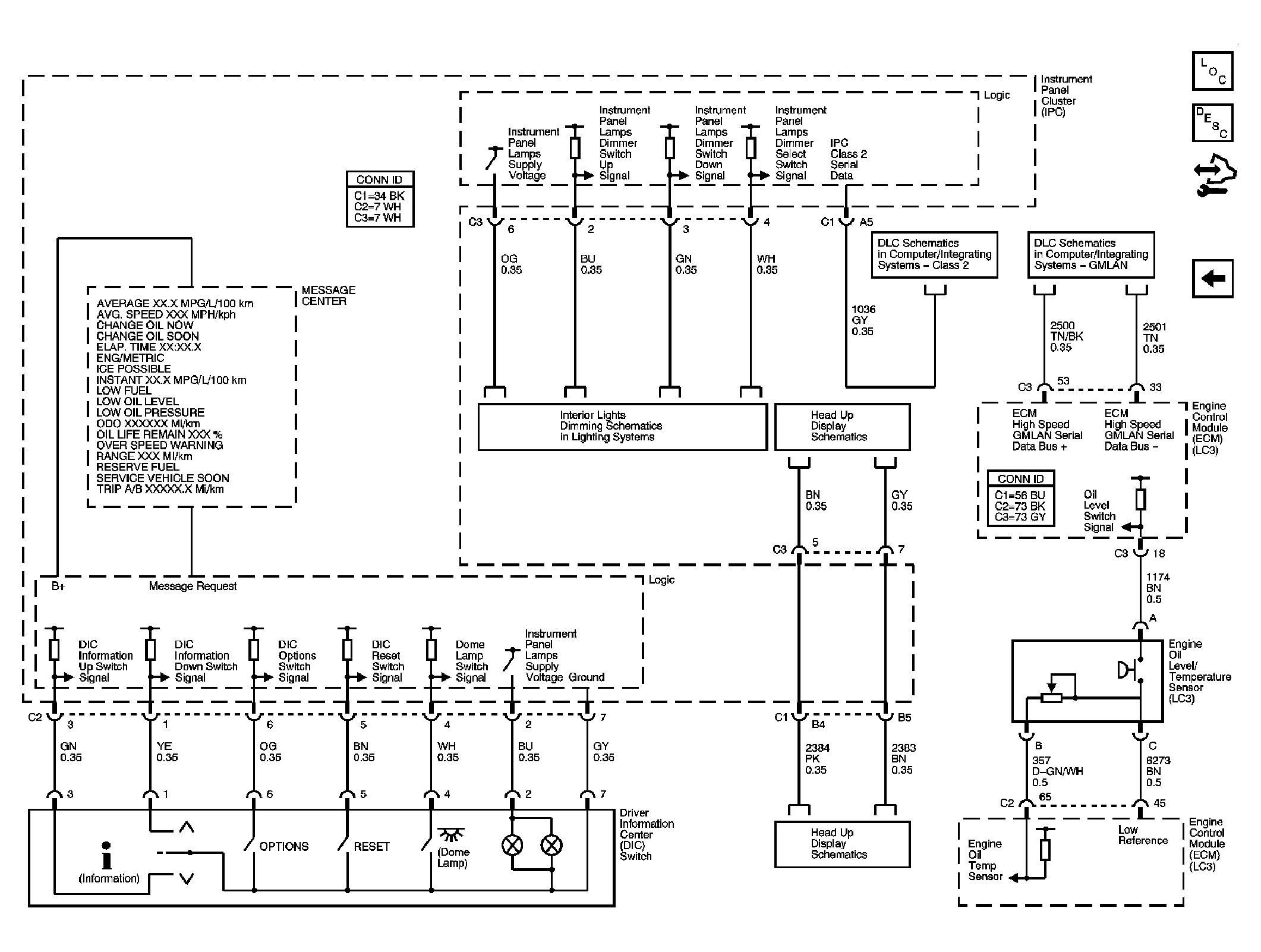

Fig 5: Messages (LC3)
GM1658067Courtesy of GENERAL MOTORS CORP.
