Head Up Display Schematics

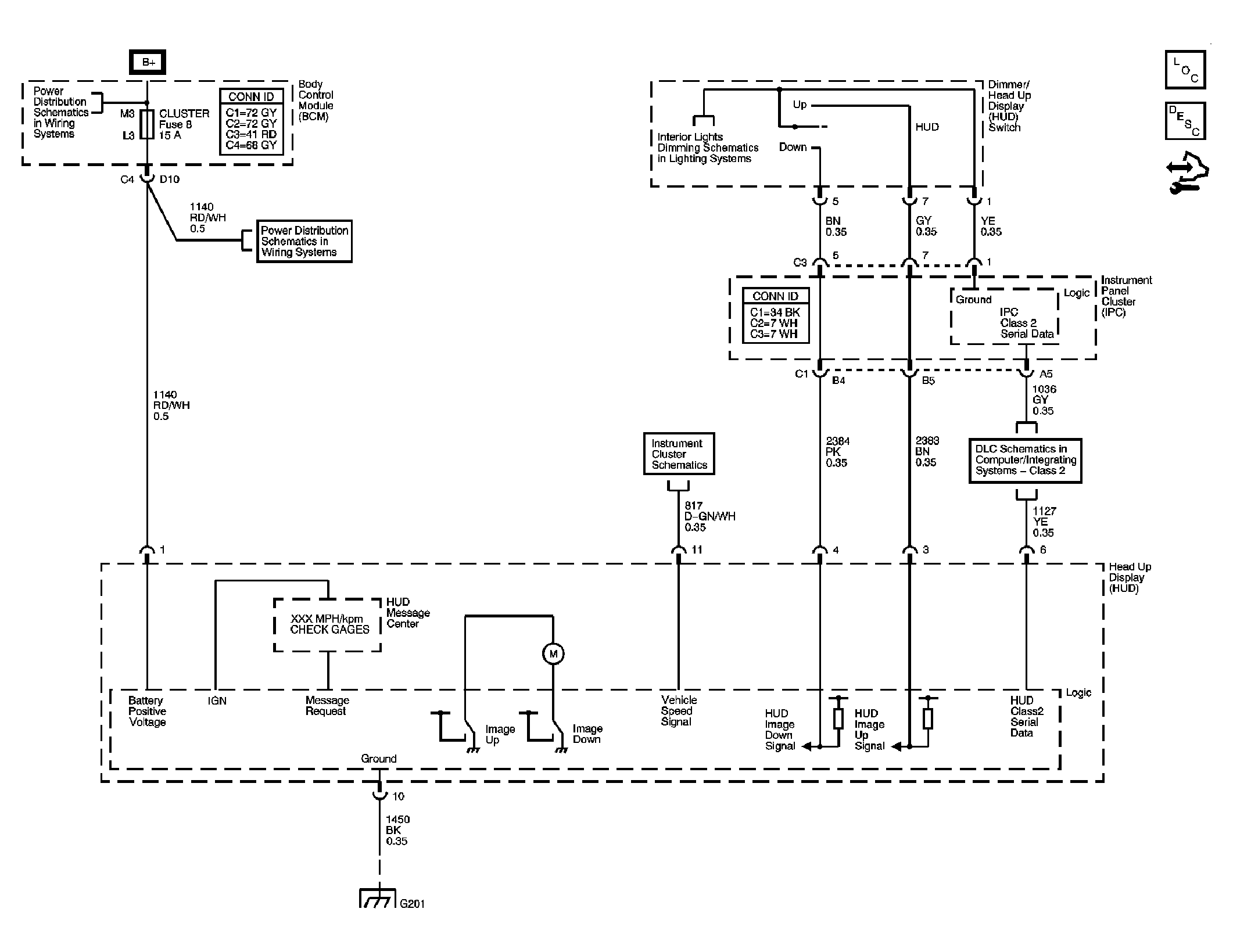

Fig 1: Head Up Display Schematic

GM1672334

Courtesy of GENERAL MOTORS CORP.
