Folding Top Schematics

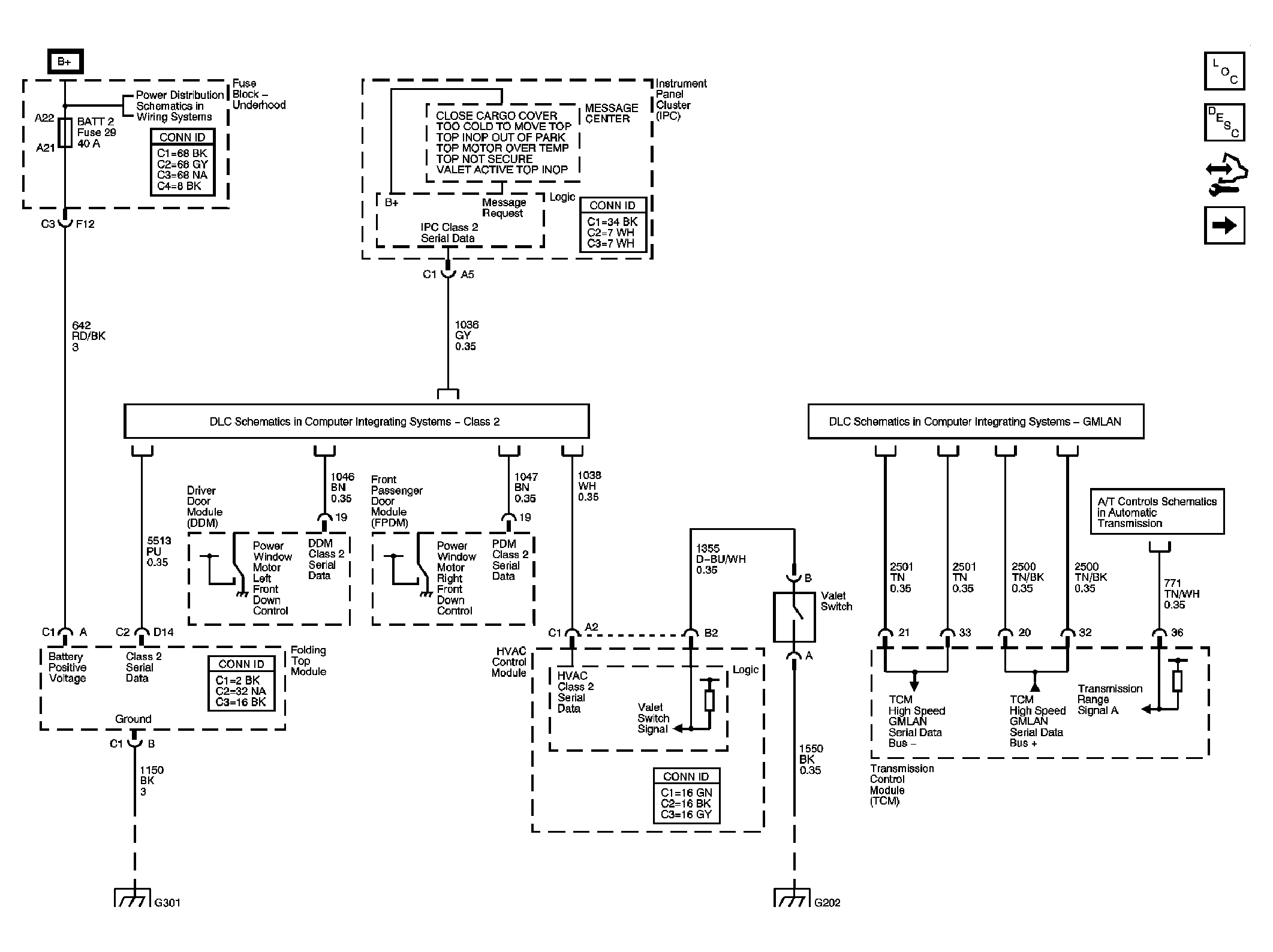

Fig 1: Power, Ground, DLC and Messages
GM1480744Courtesy of GENERAL MOTORS CORP.

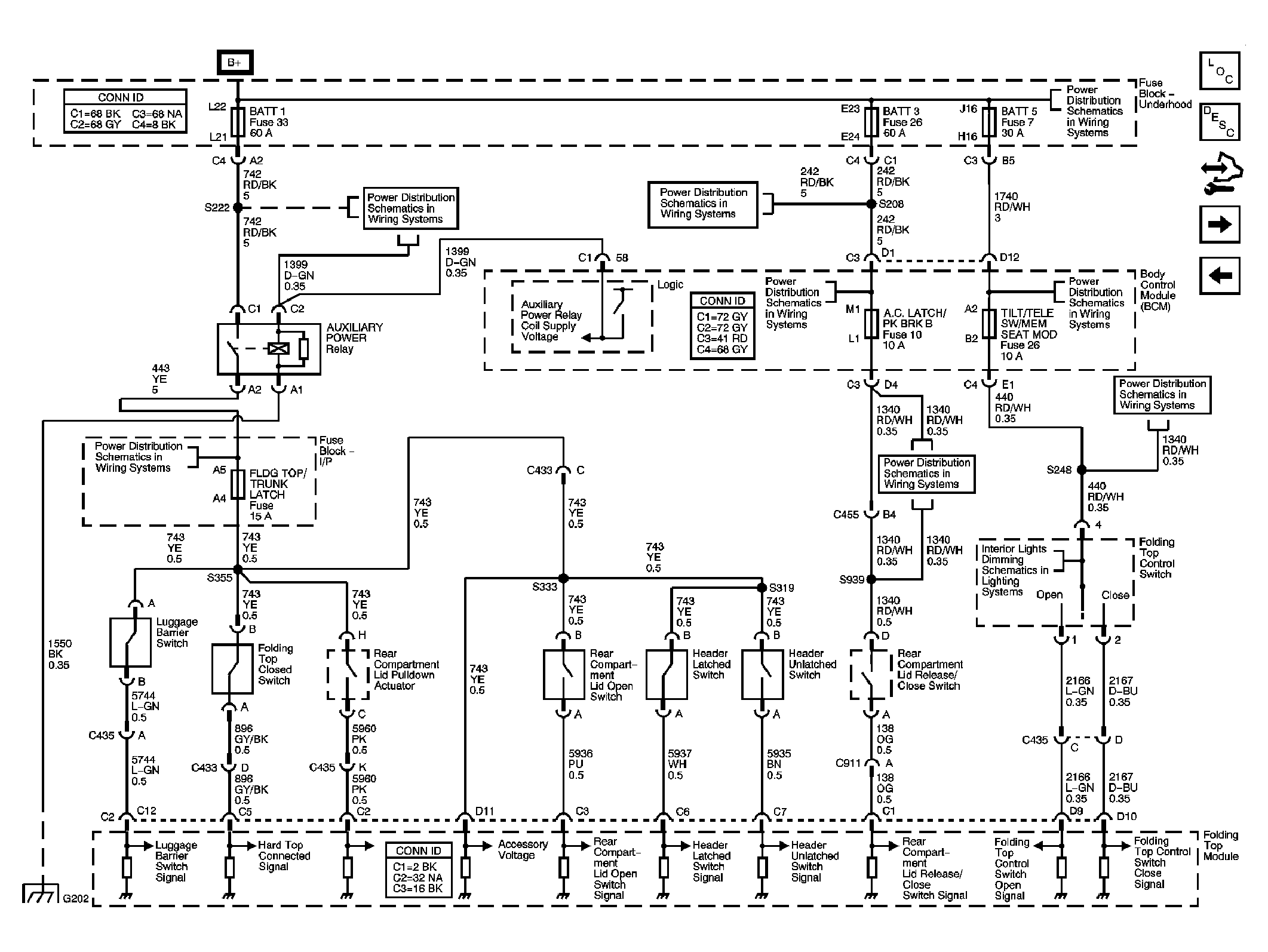

Fig 2: Switches
GM1480747Courtesy of GENERAL MOTORS CORP.

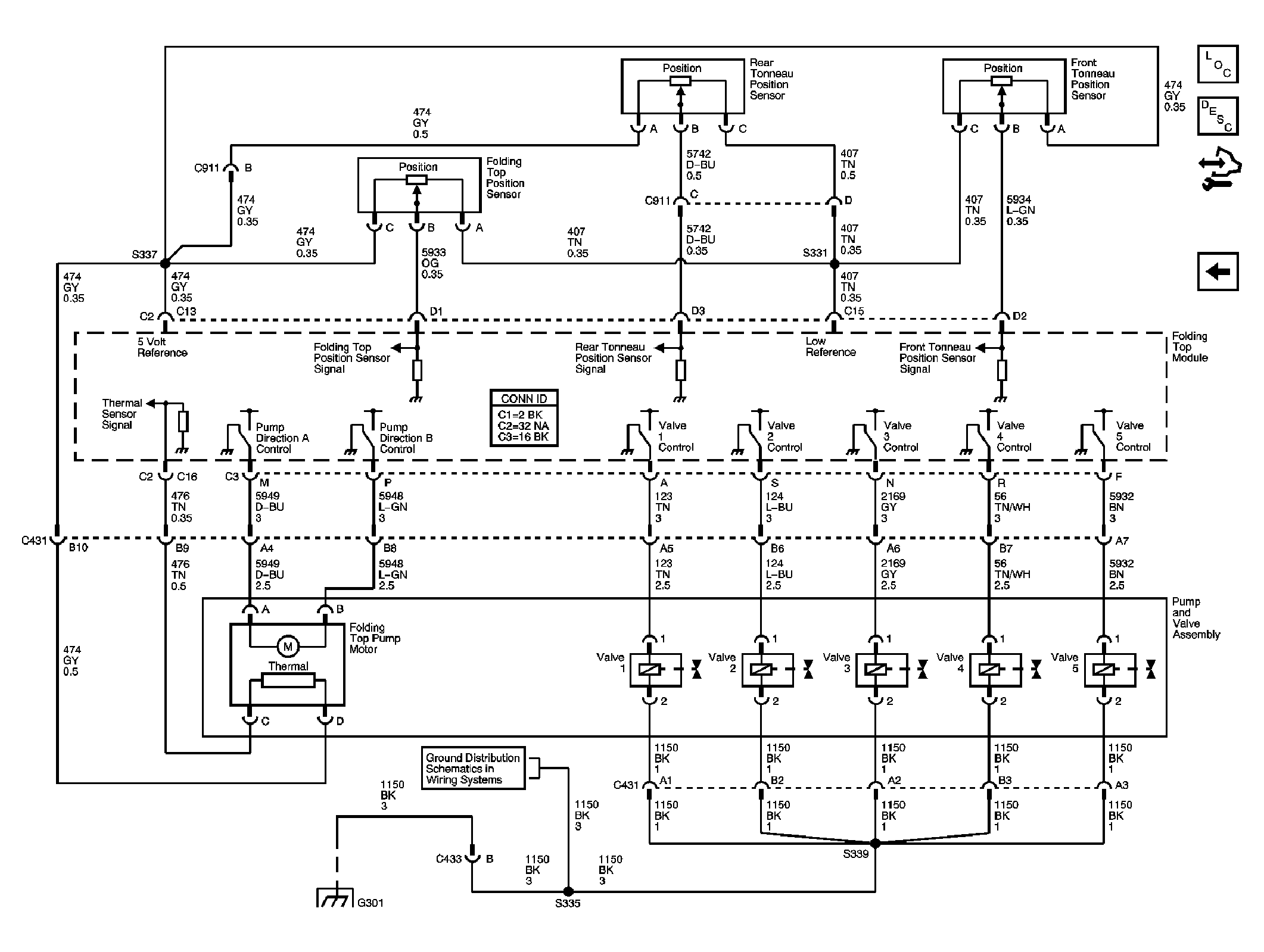

Fig 3: Sensors, Valves and Pump
GM1480750Courtesy of GENERAL MOTORS CORP.
