Passenger Seat Schematics

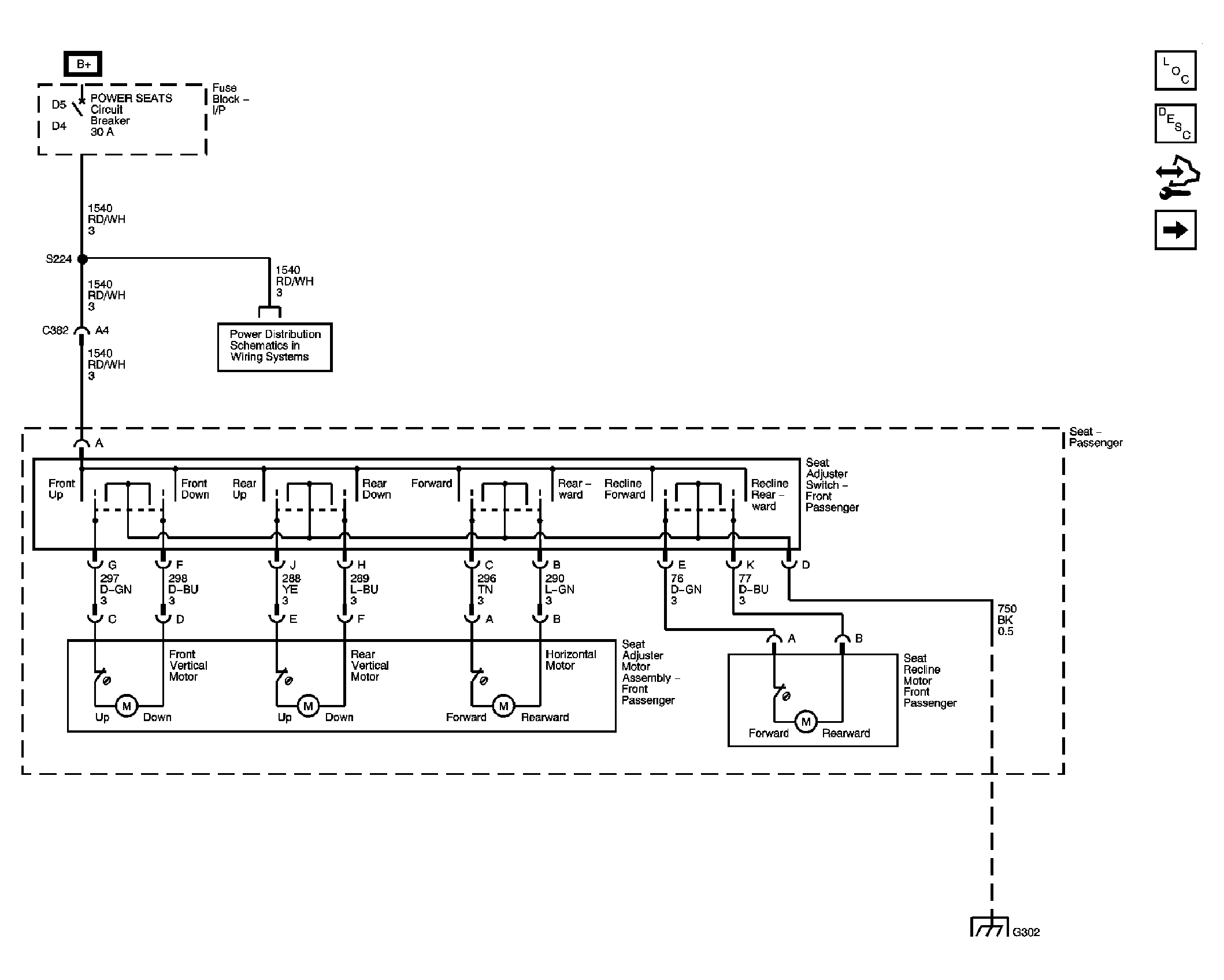

Fig 1: 8-Way Power Seat Controls
GM1480921Courtesy of GENERAL MOTORS CORP.

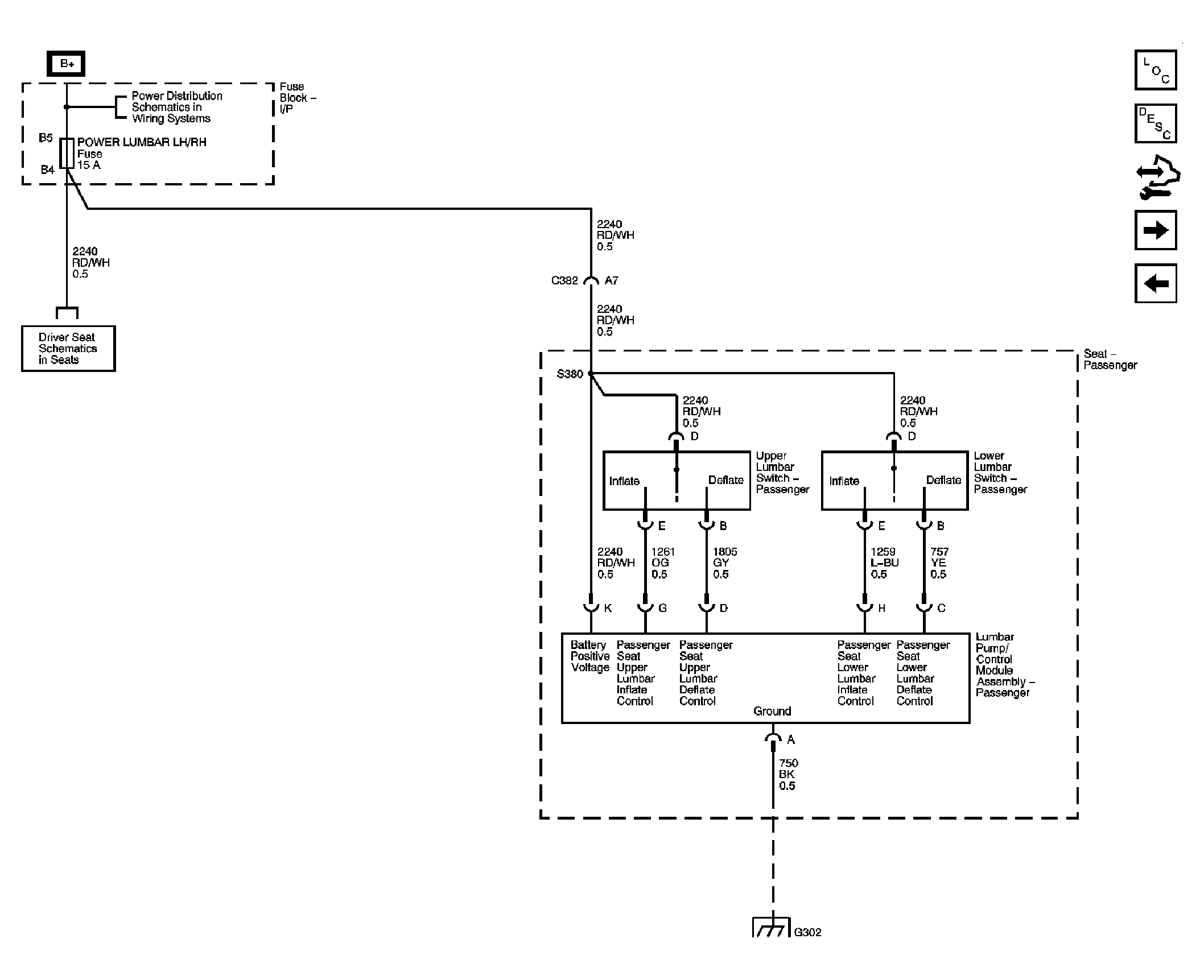

Fig 2: Lumbar Support
GM1482022Courtesy of GENERAL MOTORS CORP.

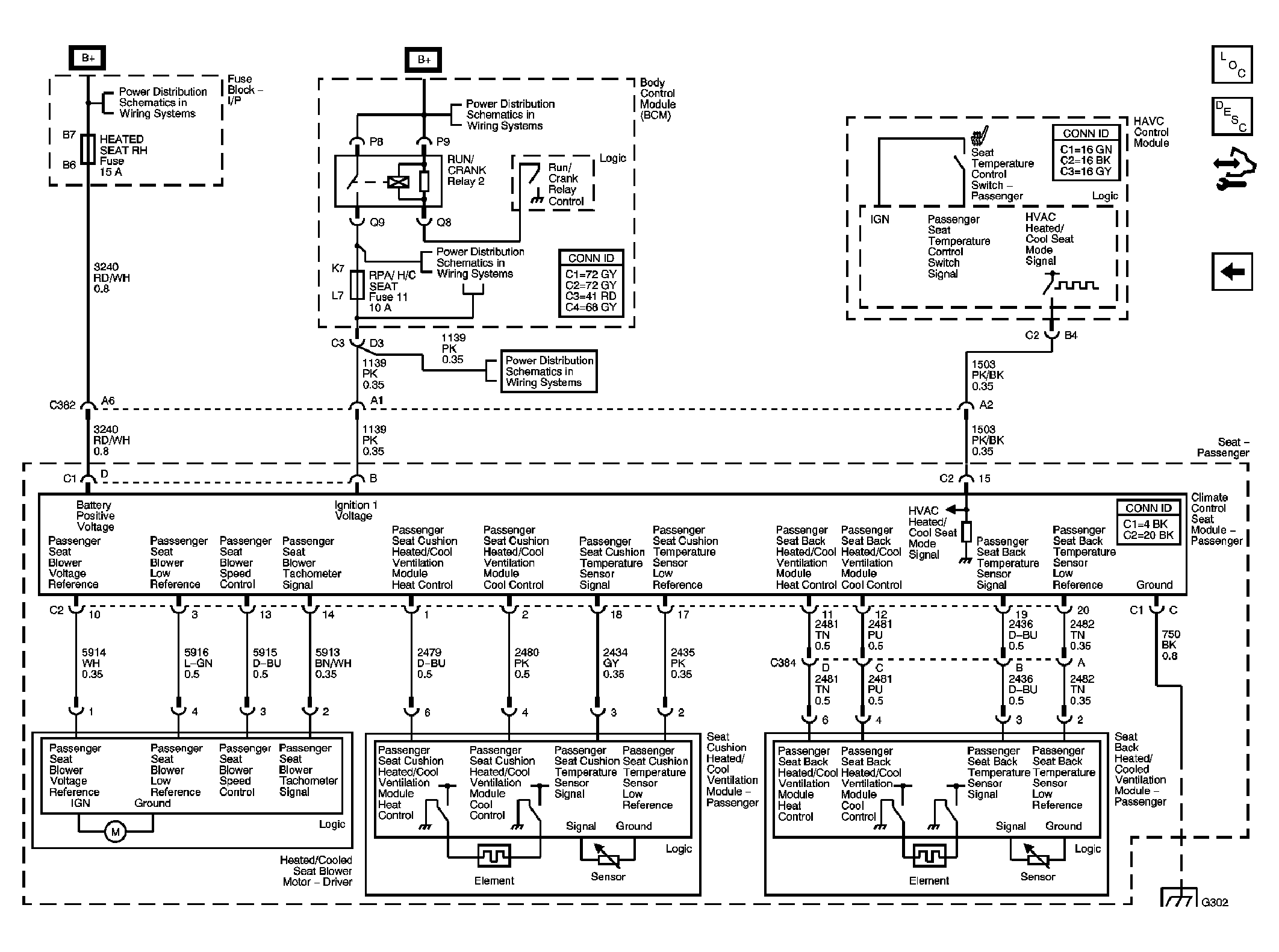

Fig 3: Heated/Cooled Seats
GM1480771Courtesy of GENERAL MOTORS CORP.
