Driver Seat Schematics

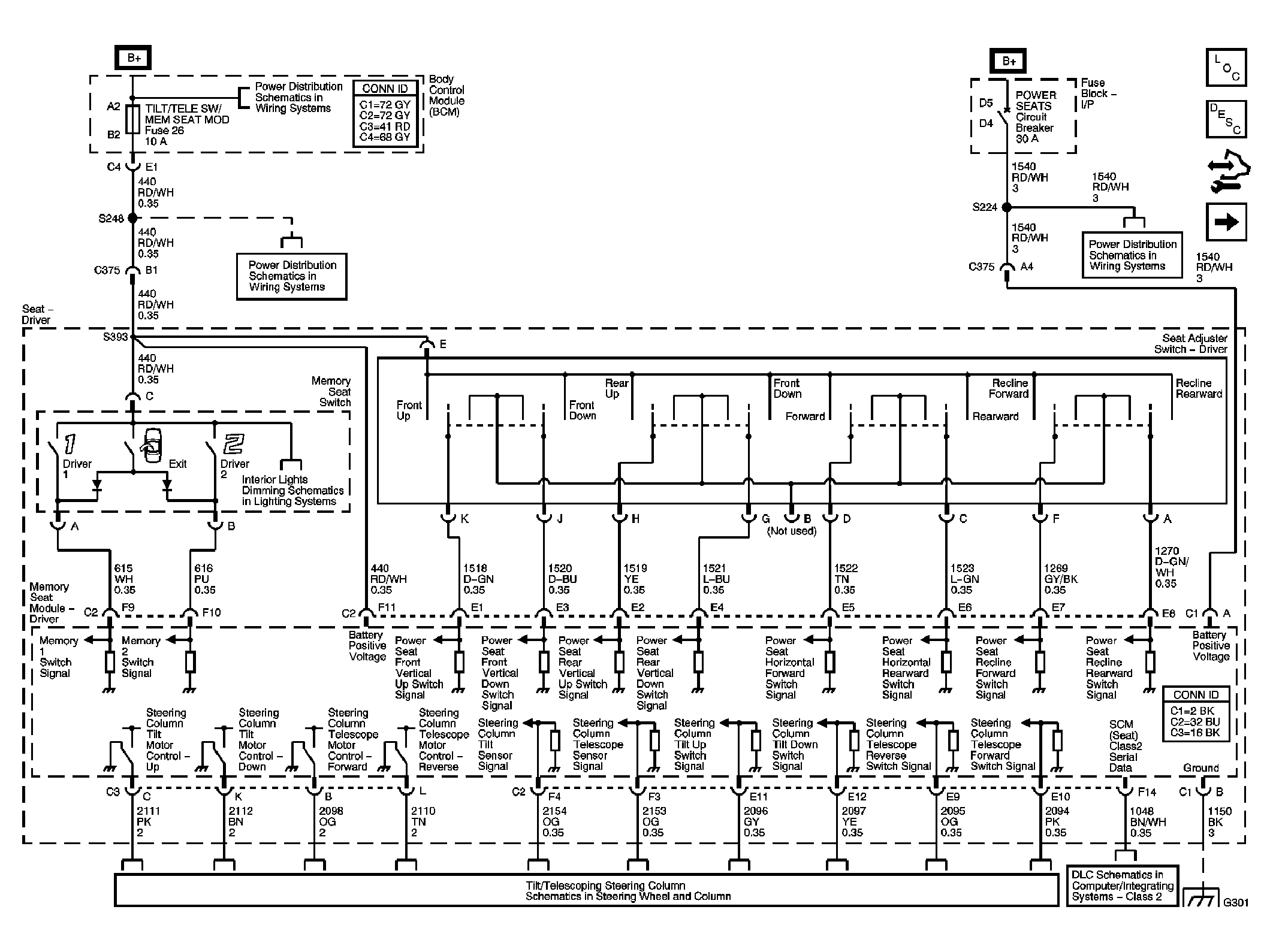

Fig 1: DLC, Ground, Power, Switches and References to Tilt/Telescope Steering
GM1480753Courtesy of GENERAL MOTORS CORP.

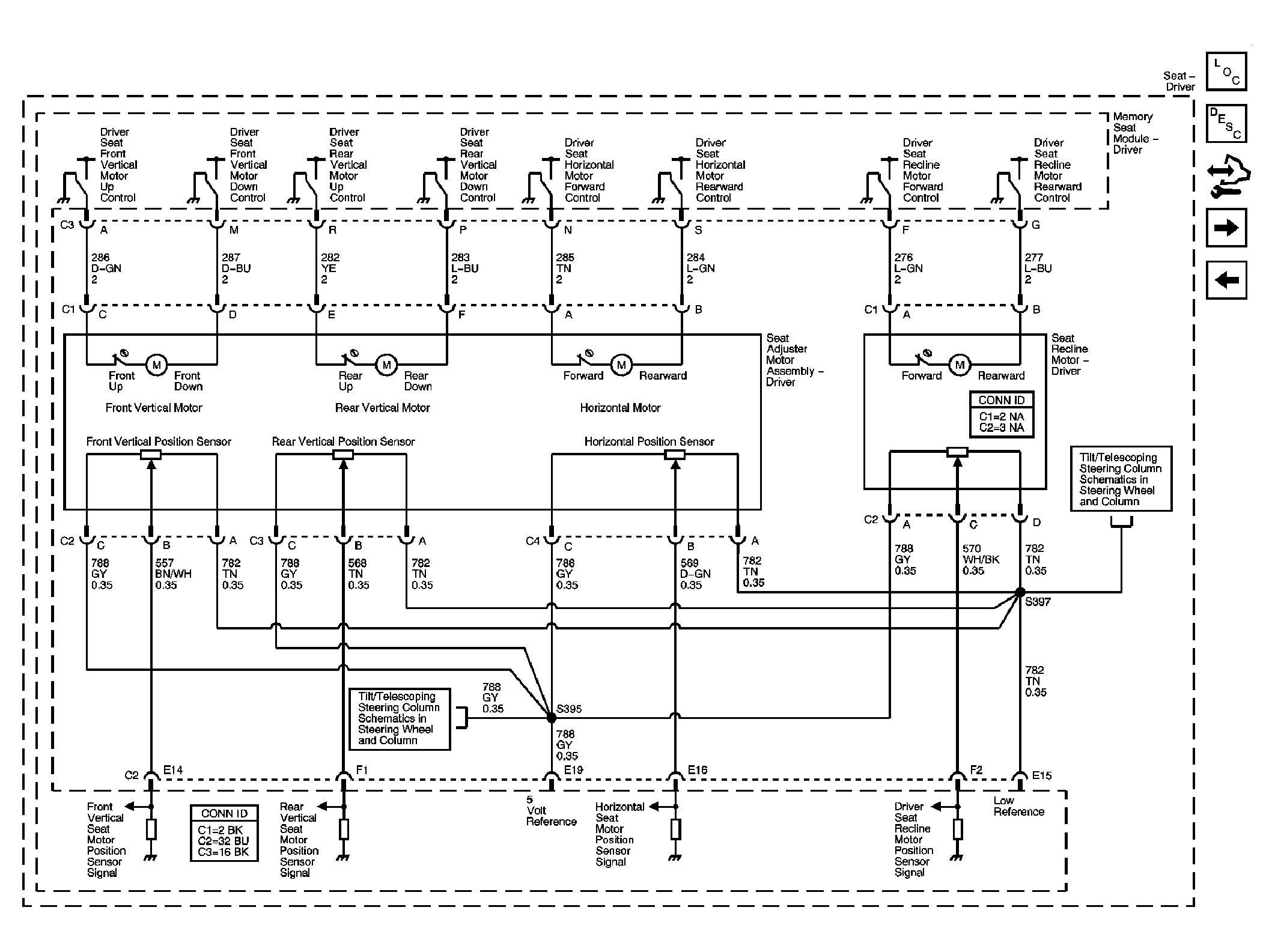

Fig 2: Motors
GM1480756Courtesy of GENERAL MOTORS CORP.
Fig 3: Lumbar Support
GM1480764Courtesy of GENERAL MOTORS CORP.

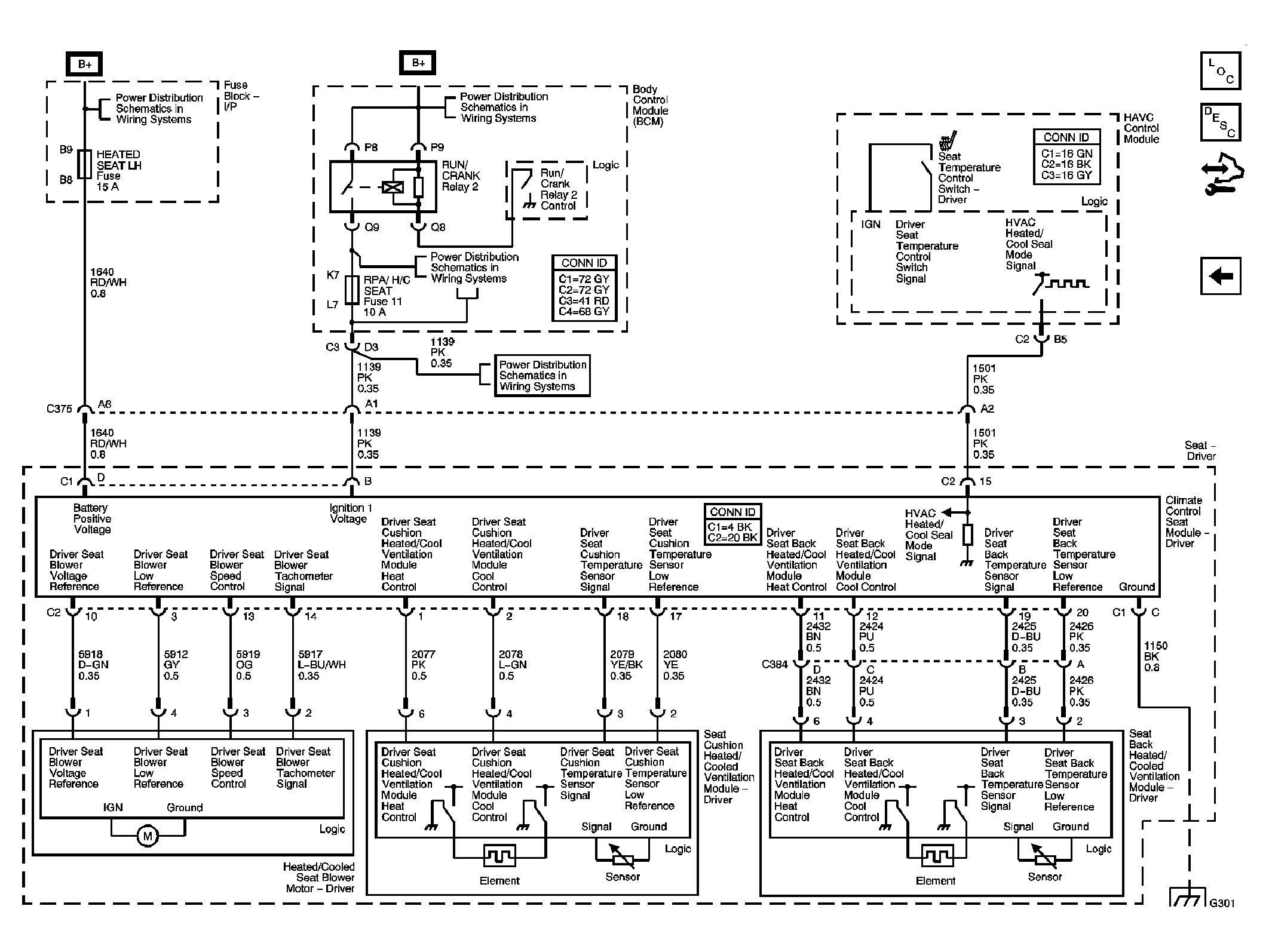

Fig 4: Heated/Cooled Seats
GM1480768Courtesy of GENERAL MOTORS CORP.
