Interior Lights Dimming Schematics

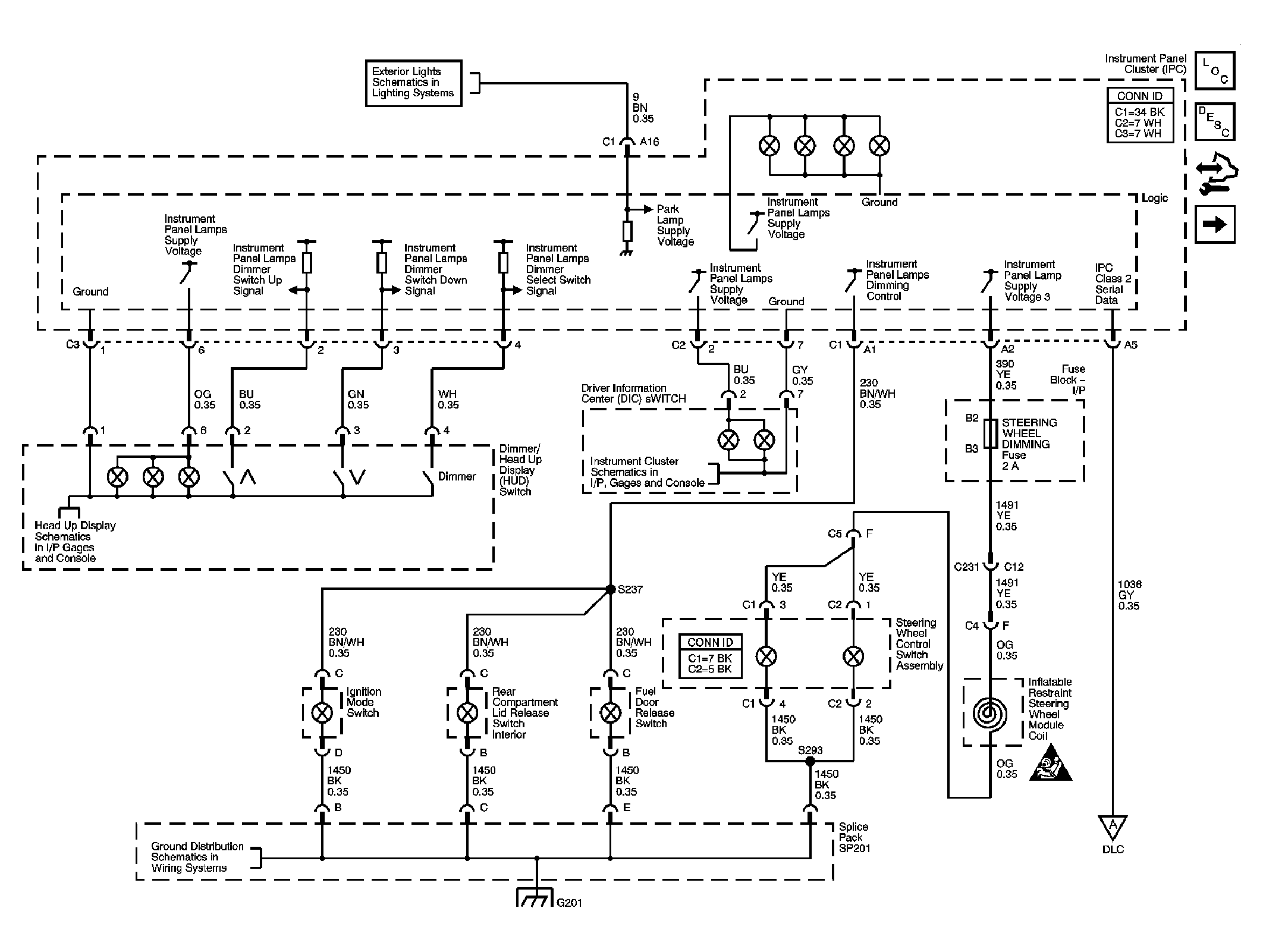

Fig 1: Dimmer Controls, IPC, Switches and DLC

GM1480738

Courtesy of GENERAL MOTORS CORP.

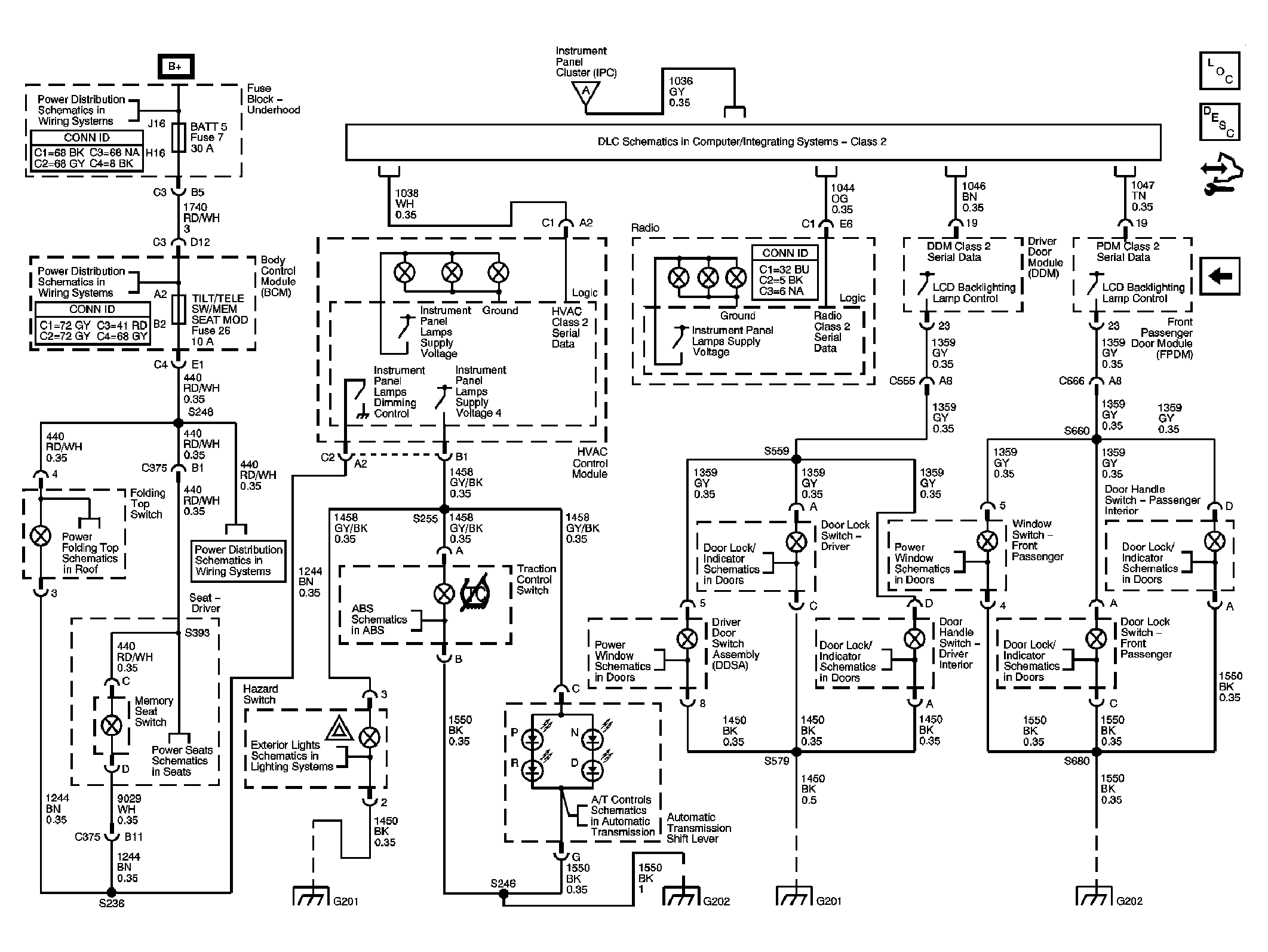

Fig 2: DLC, HVAC Control Module, Radio and Switches

GM1480741

Courtesy of GENERAL MOTORS CORP.
