Headlights/Daytime Running Lights (DRL) Schematics

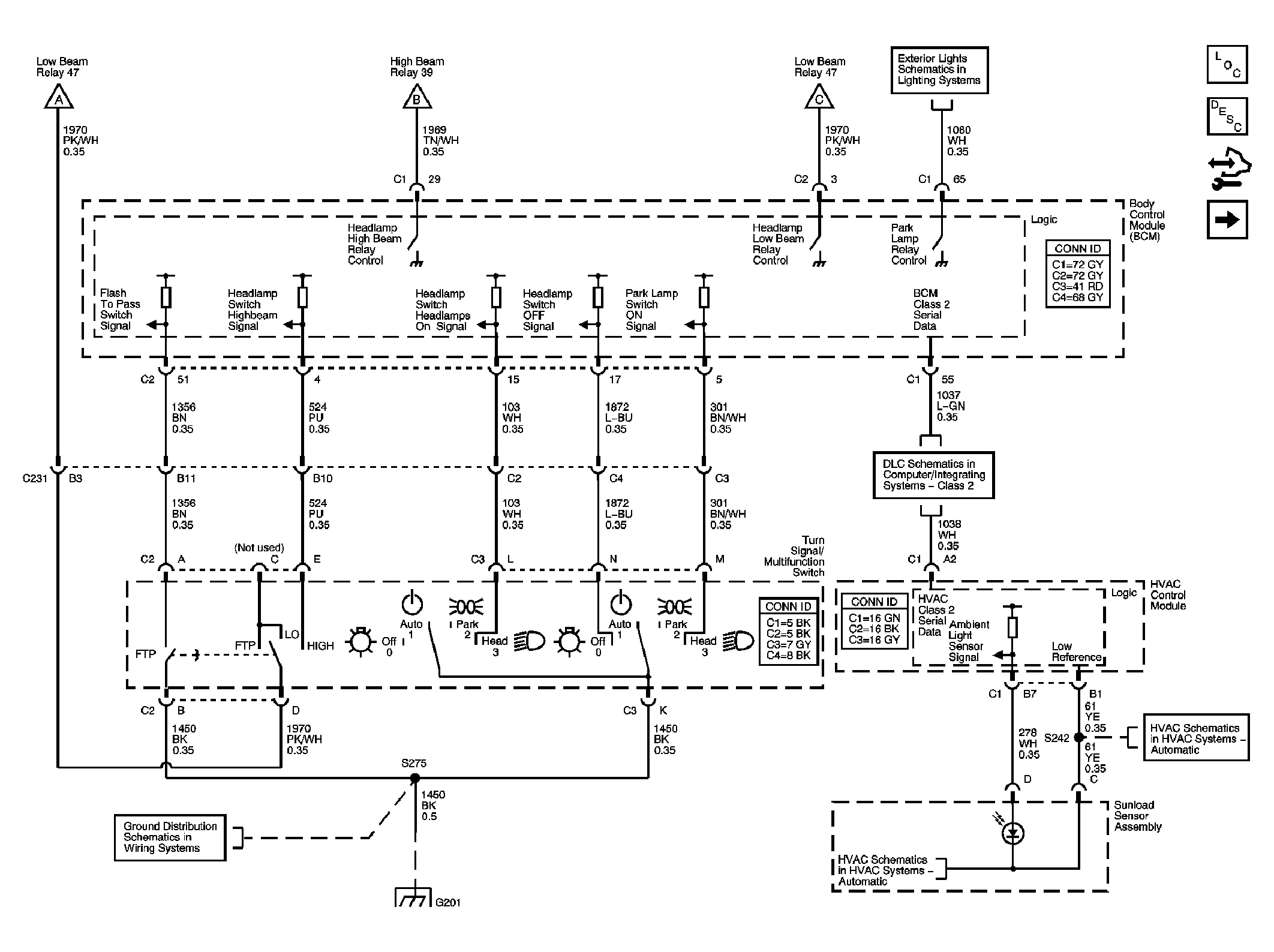

Fig 1: Headlamp/DRL Controls
GM1480725Courtesy of GENERAL MOTORS CORP.

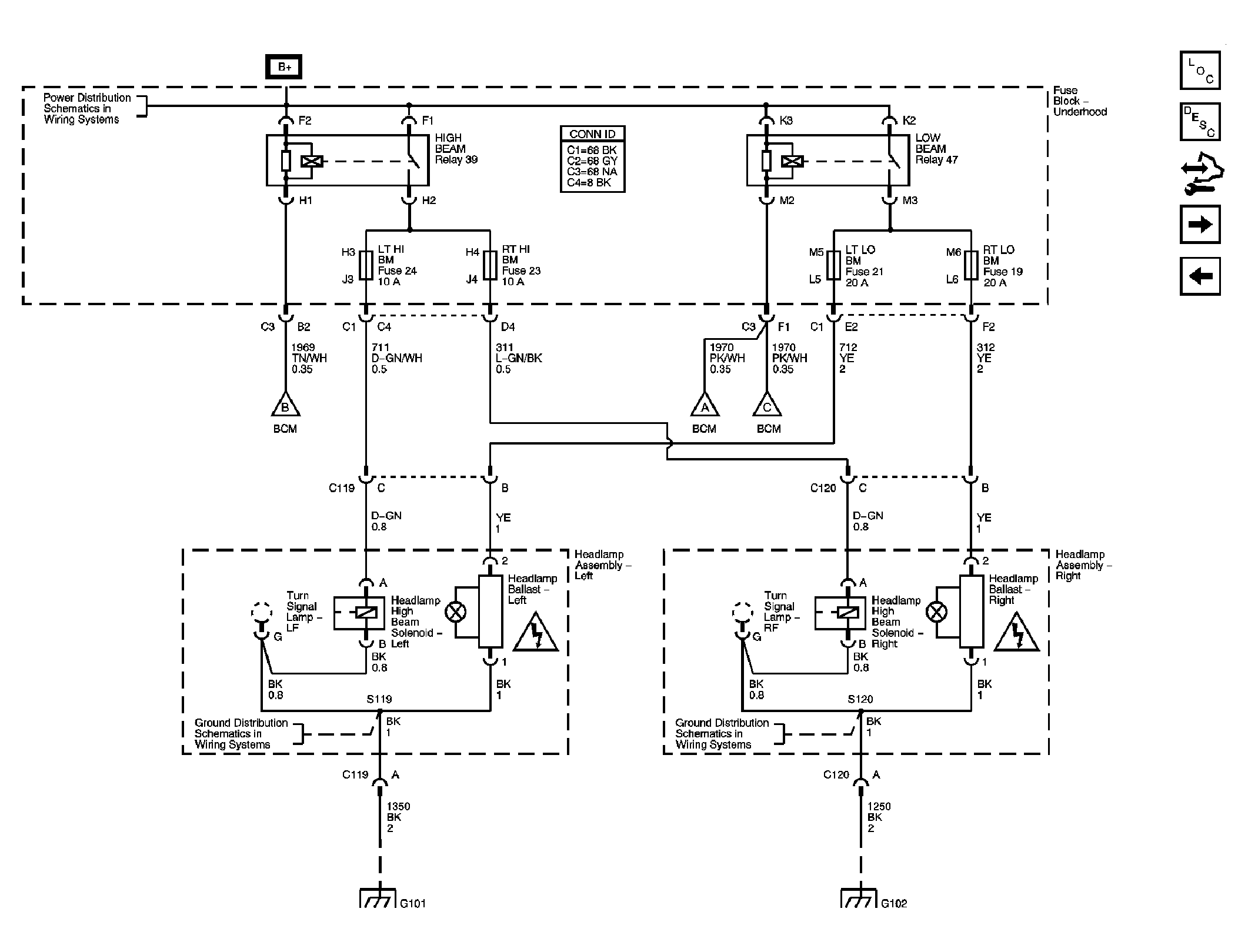

Fig 2: Headlamps
GM1789051Courtesy of GENERAL MOTORS CORP.

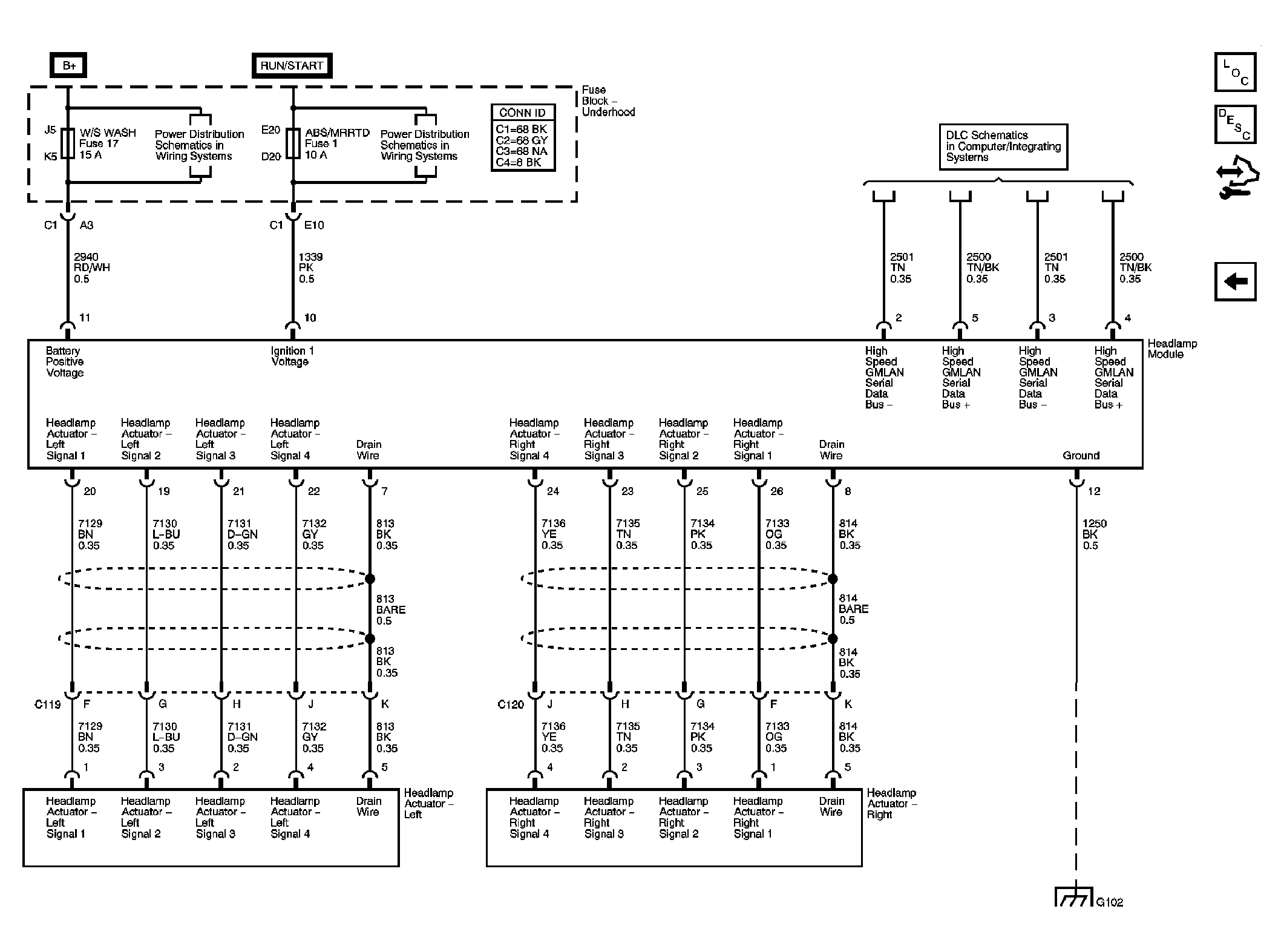

Fig 3: Adaptive Forward Lighting System (AFS) - Except Japan and Europe
GM1788113Courtesy of GENERAL MOTORS CORP.
