Headlamp Control Module Replacement
Headlamp Control Module Replacement

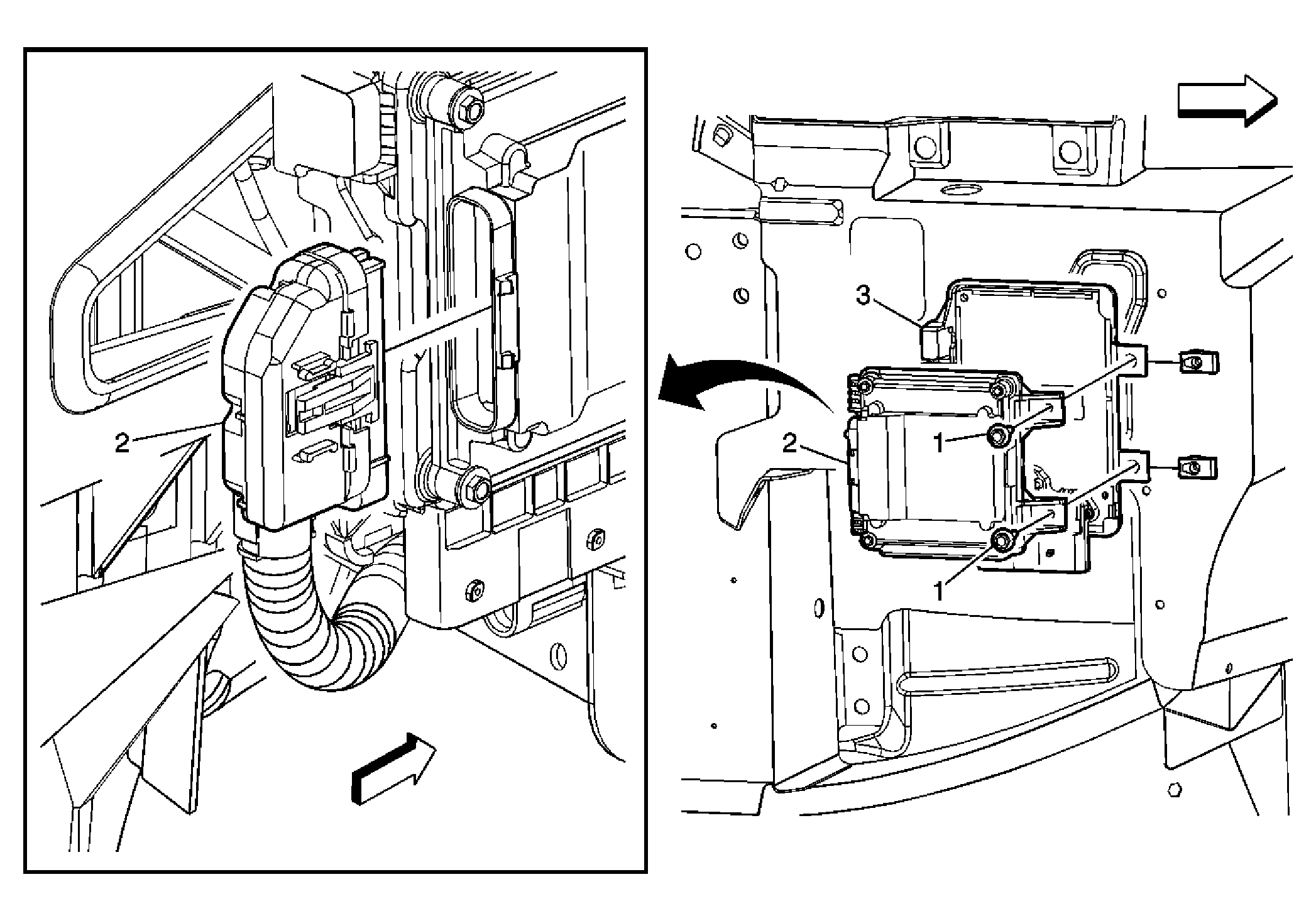

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the right front wheelhouse liner in order to access the headlamp control module. Refer to Wheelhouse Filler Replacement . |
|
| 1 | Headlamp Control Module Screws (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 4 N.m (35 lb in) |
| 2 | Headlamp Control Module Forward Lamp Harness Connector Tip: Disengage the connector from the headlamp control module. |
| 3 | Headlamp Control Module Bracket Refer to Control Module References for programming and setup information. Tip: Remove the headlamp control module from the bracket. |
