Radio/Audio System Schematics

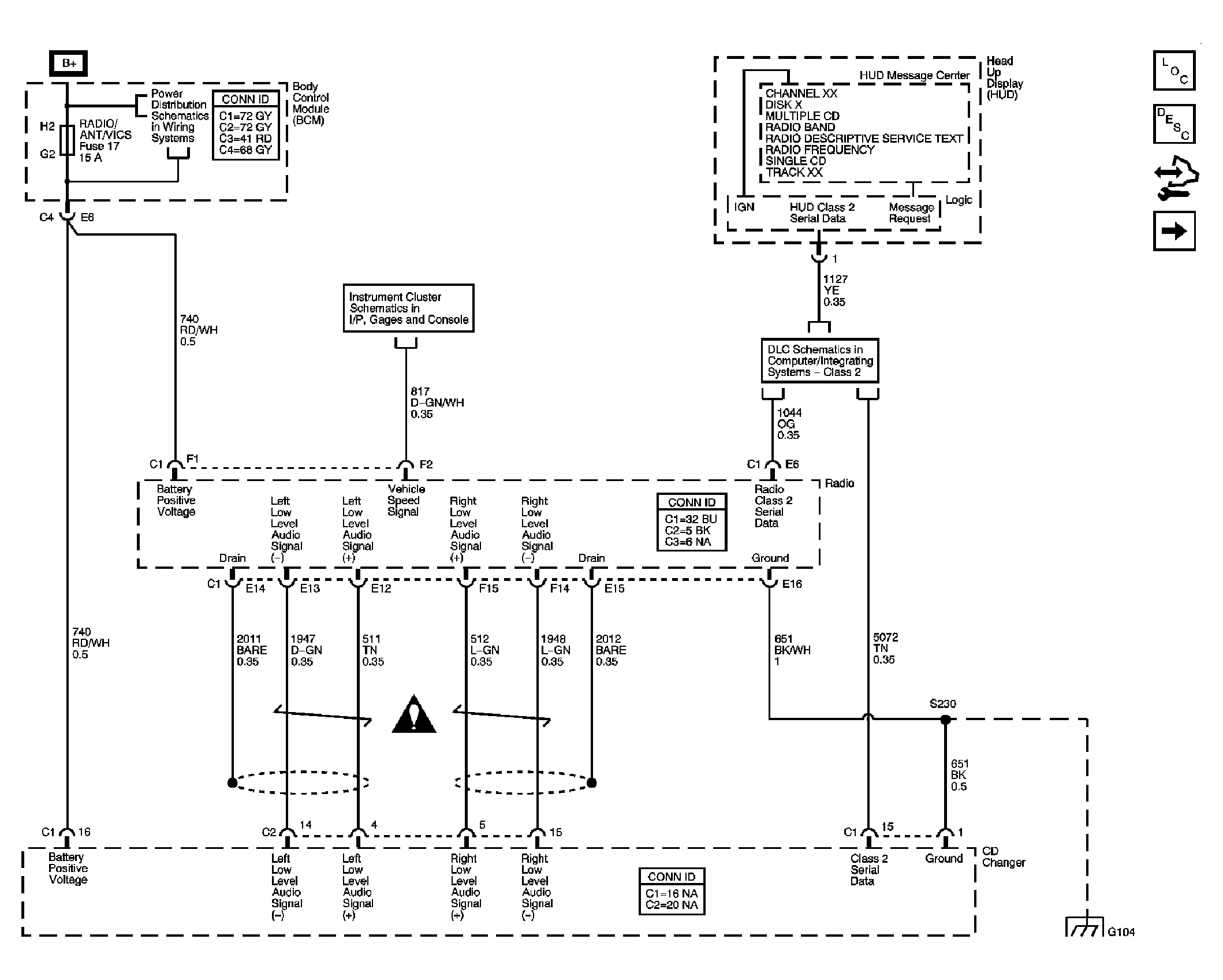

Fig 1: CD Player and Radio Audio Signals, Ground, Messages, and Power

Courtesy of GENERAL MOTORS CORP.

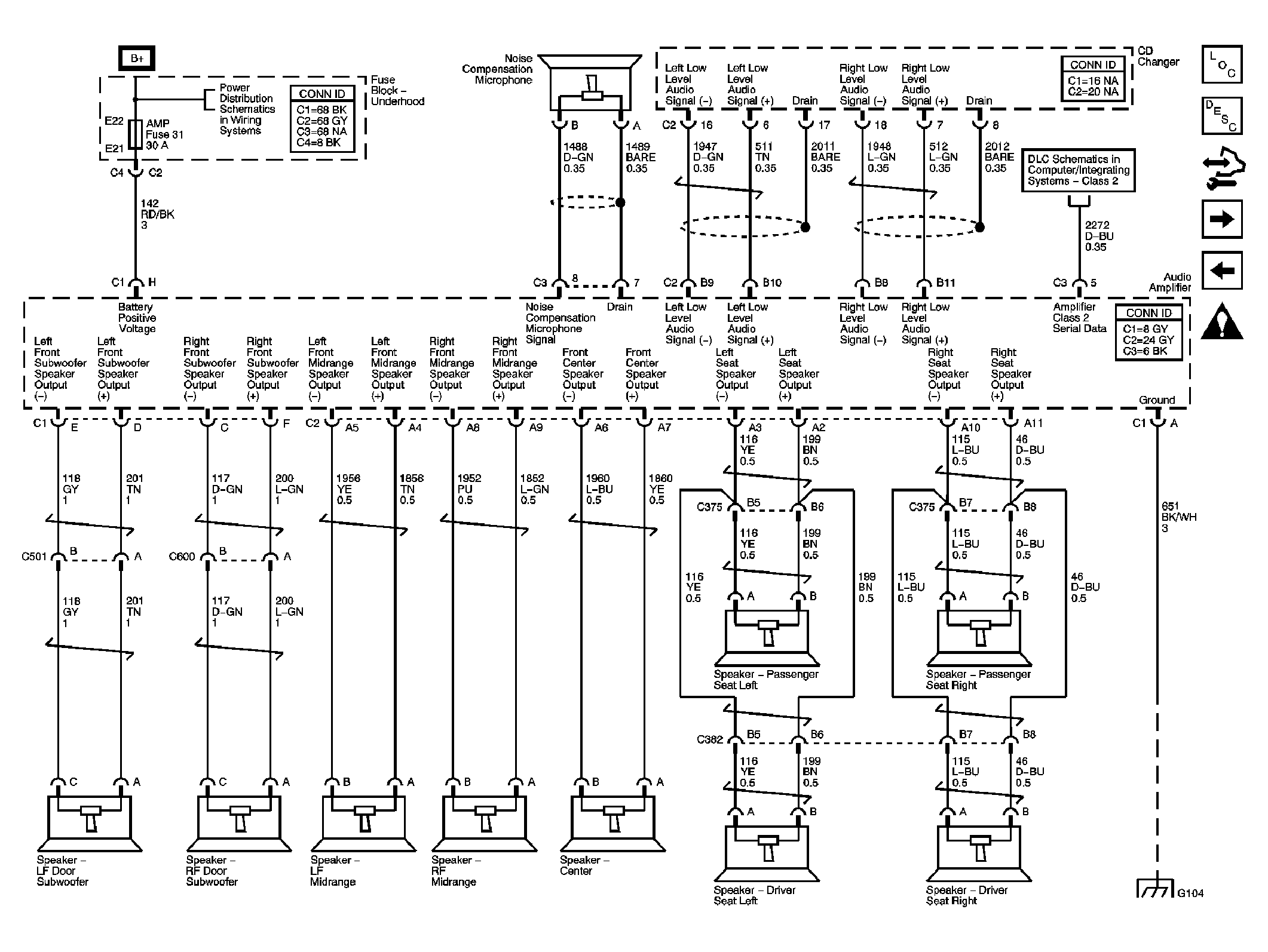

Fig 2: Amplification

Courtesy of GENERAL MOTORS CORP.

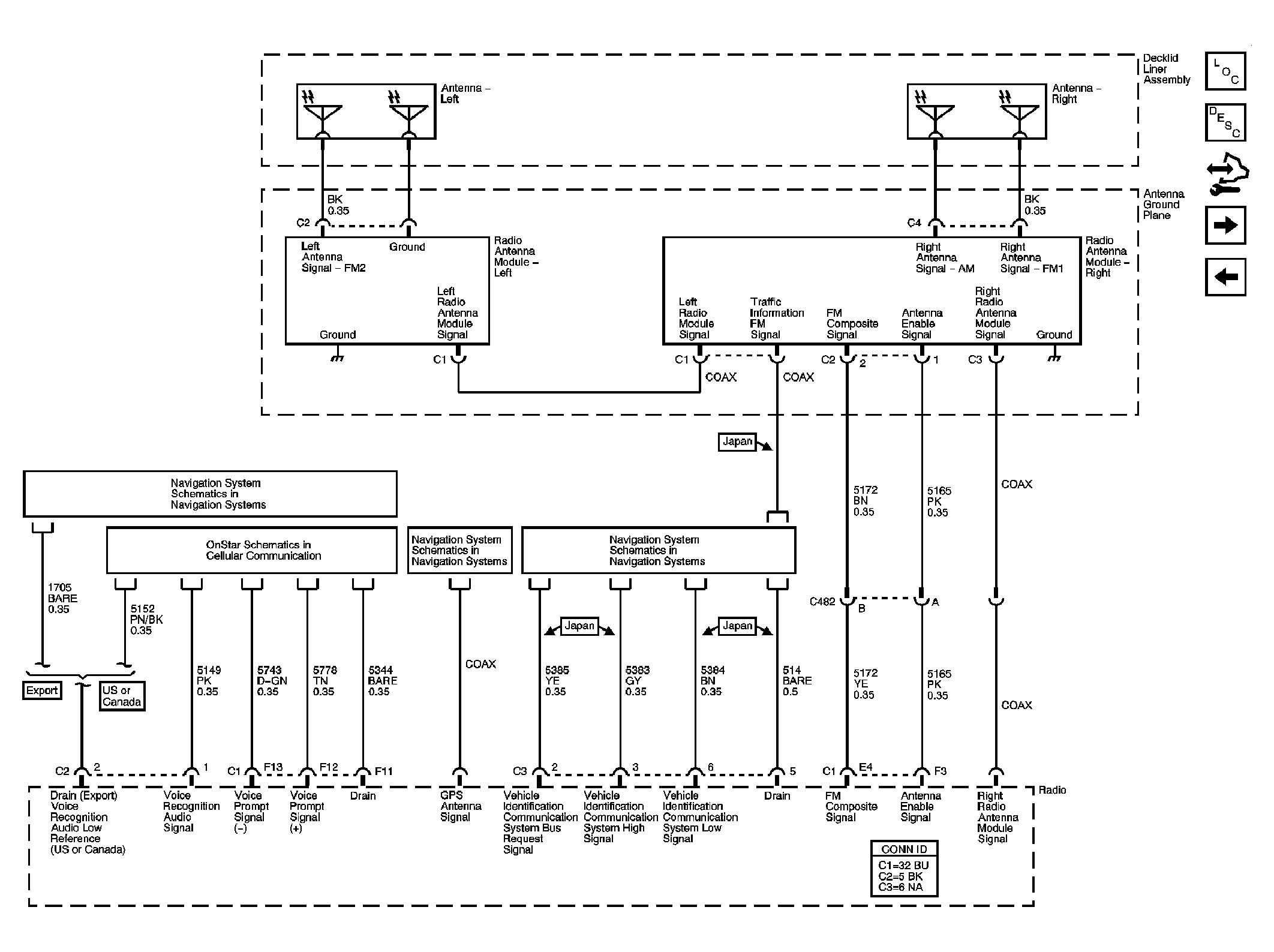

Fig 3: Antennas Except S-Band, and References to Navigation and OnStar

Courtesy of GENERAL MOTORS CORP.

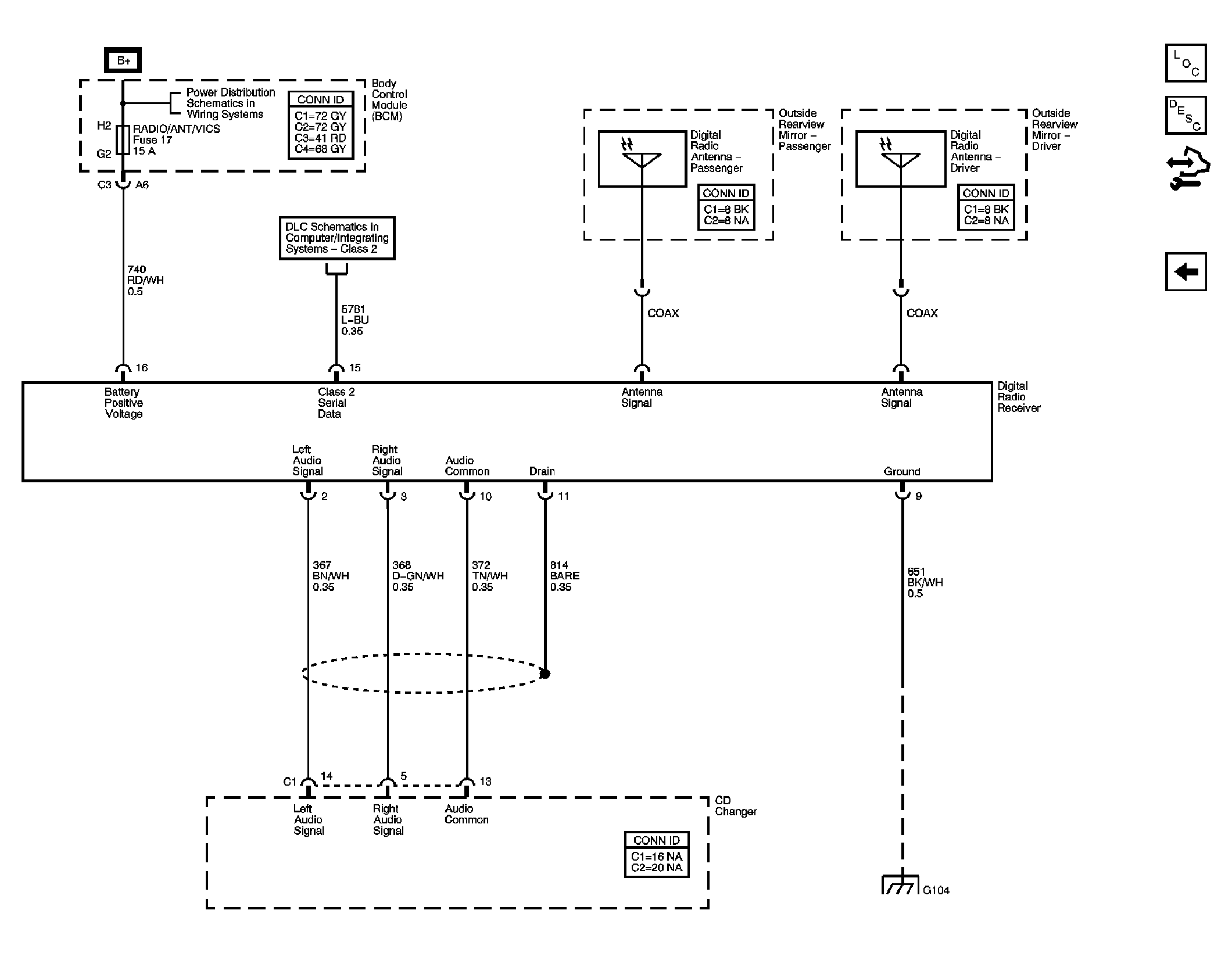

Fig 4: Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

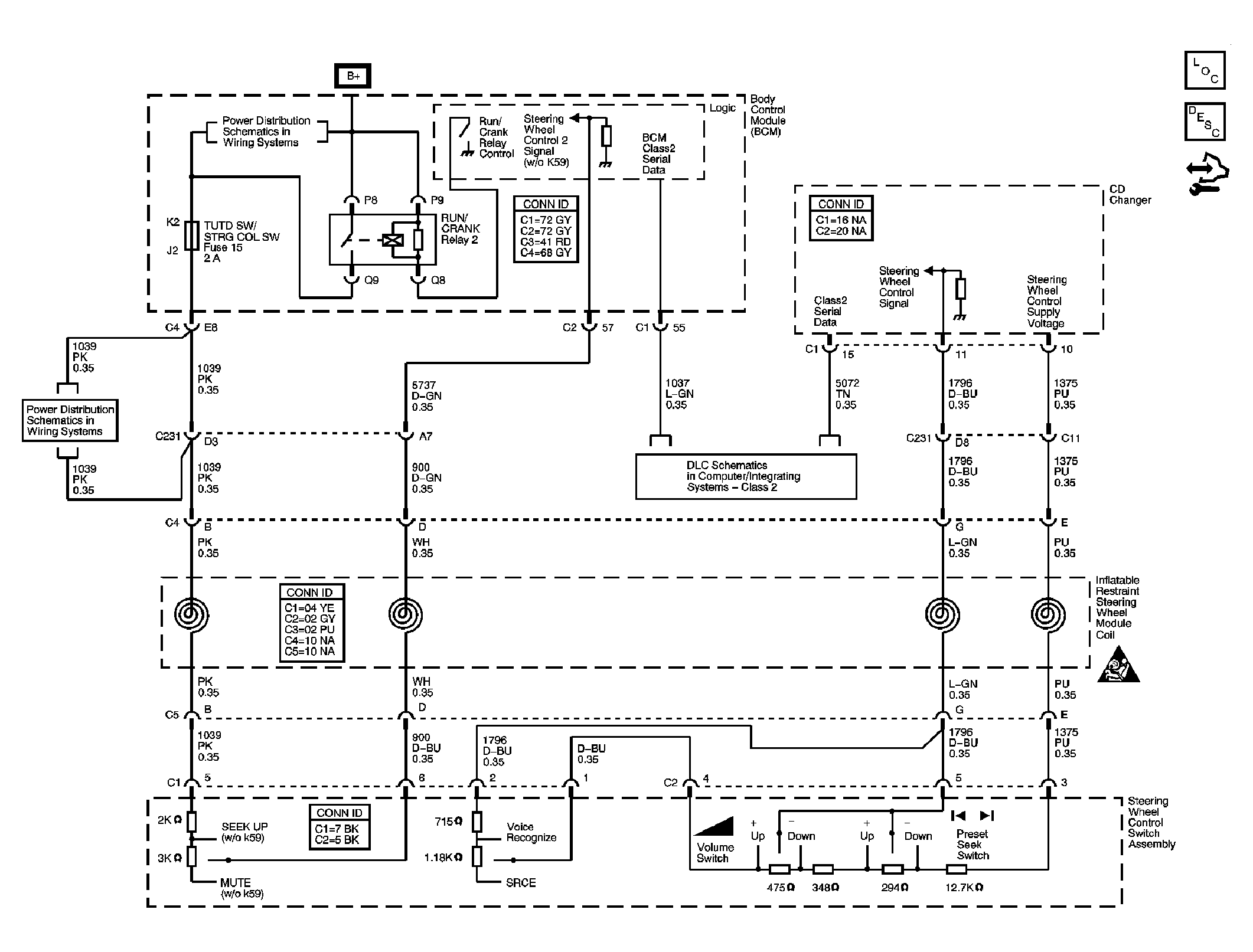

Fig 5: Redundant Steering Wheel Controls

Courtesy of GENERAL MOTORS CORP.
