Cadillac
>>
2006
>>
XLR Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Cellular Communication Systems
>>
Schematic and Routing Diagrams
>>
OnStar Schematics
OnStar Schematics

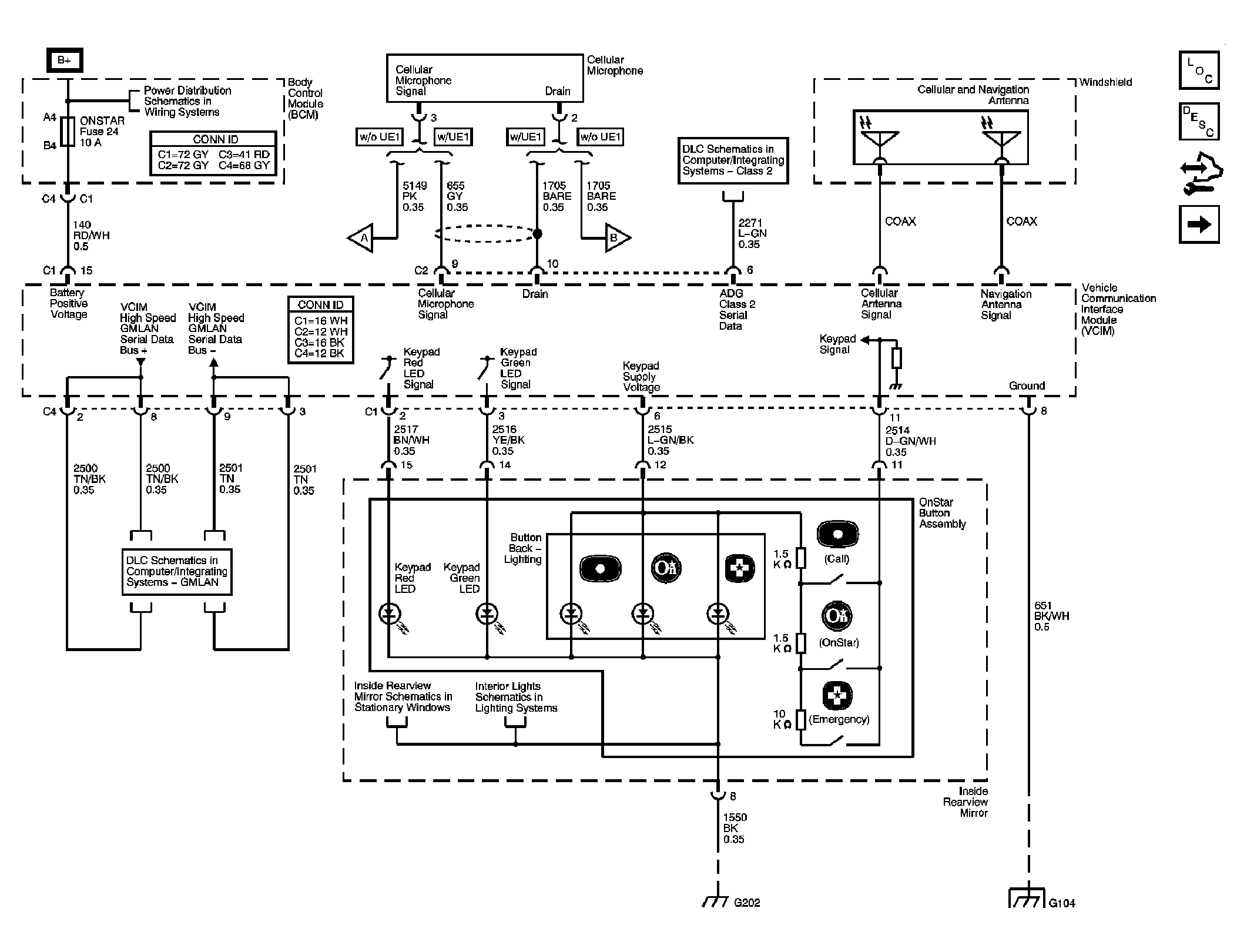

Fig 1: Antenna, DLC, Ground, Power, and User Inputs
Courtesy of GENERAL MOTORS CORP.

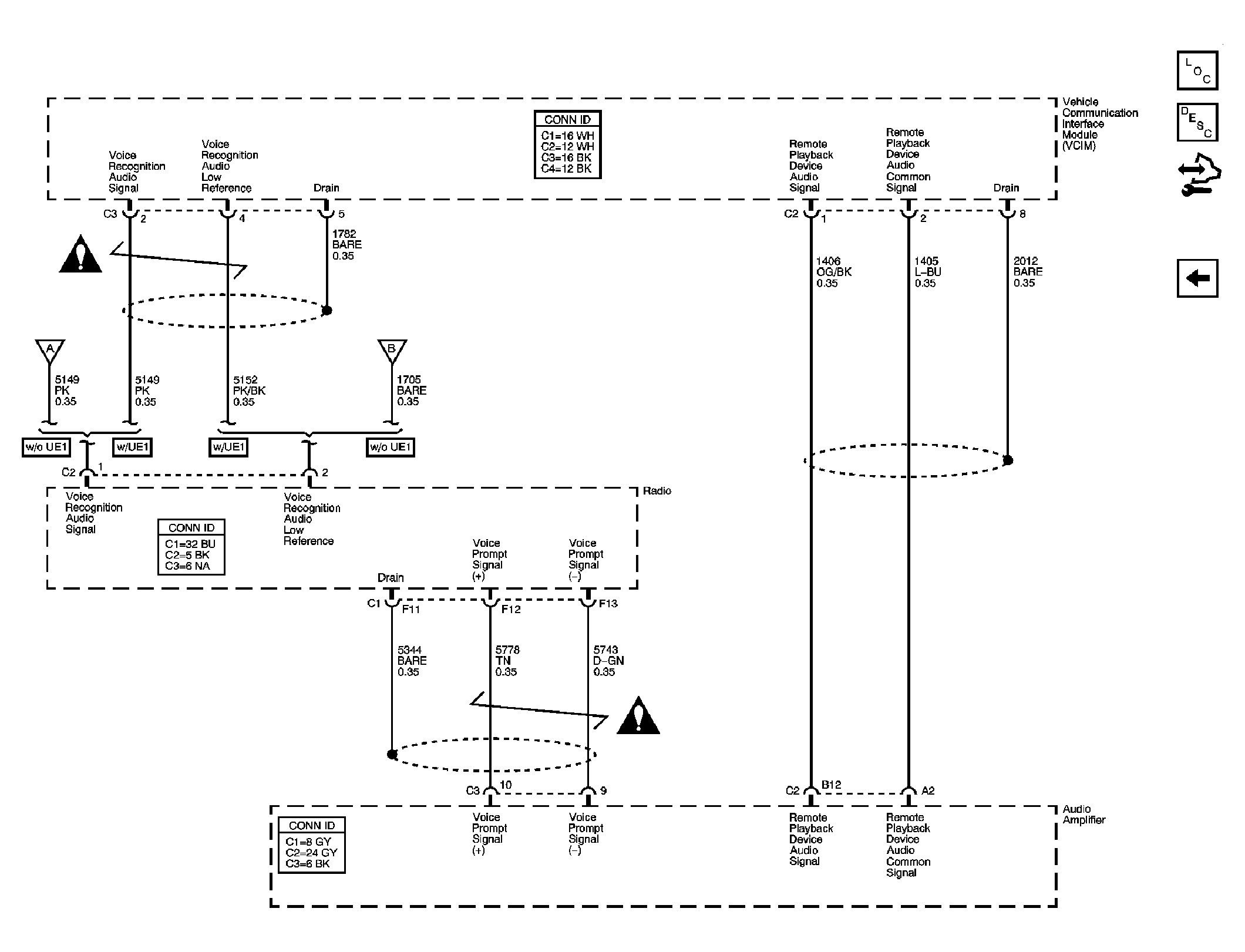

Fig 2: Audio Output
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
