Installation Procedure

    Fig 1: View Of DIC Switch Pod
    GM1224702Courtesy of GENERAL MOTORS CORP.
  1. Install the electrical switches to the I/P trim panel.
  2. Connect the electrical connections to the I/P trim panel.
  3. Push on the right trim panel to engage the retaining clips to the I/P carrier.

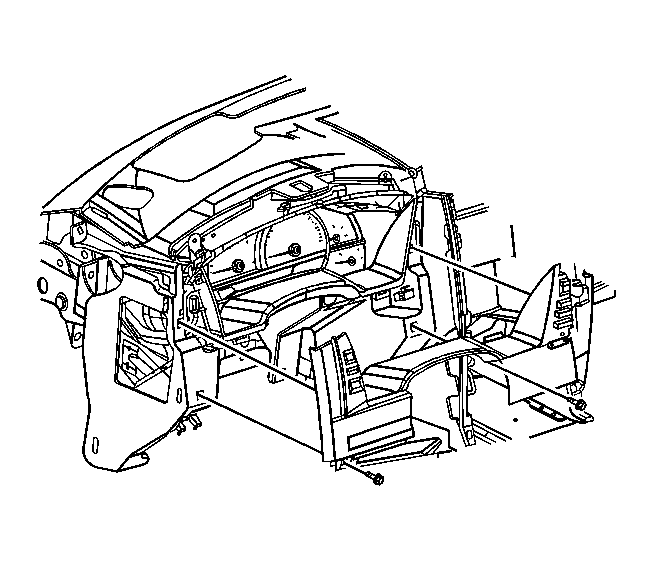

    4. Fig 2: View Of Trim Panel & I/P Carrier
    GM1224717Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the retaining screw at the bottom of the trim panel.

    Tighten:  Tighten the screw to 1.9 N.m (17 lb in).

  5. Install the knee bolster trim panel. Refer to Driver Knee Bolster Panel Replacement .
