Installation Procedure

  1. Connect the inside air temperature sensor electrical connector.

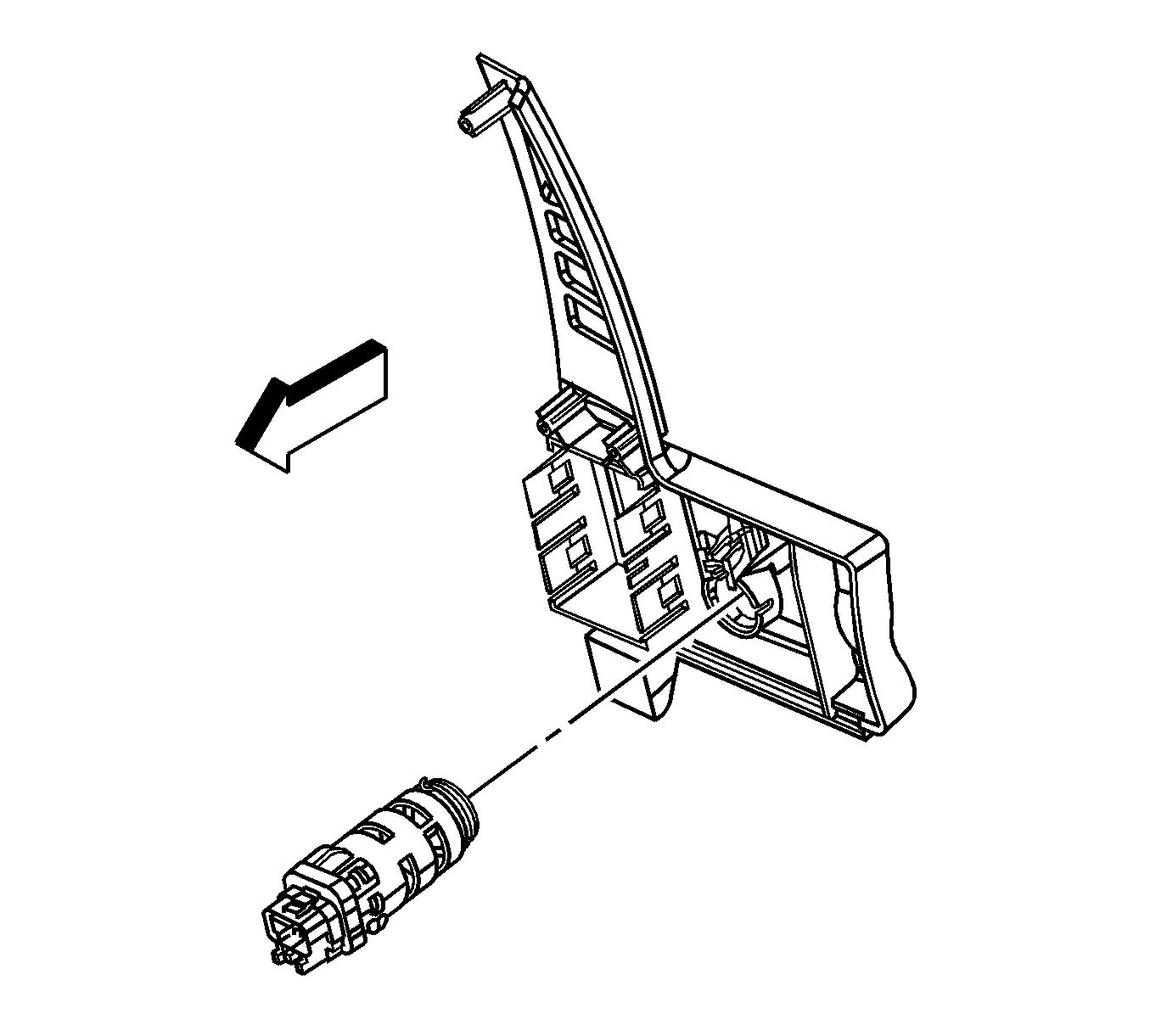

    2. Fig 1: View Of Inside Air Temperature Sensor Electrical Connector
    GM922611Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the inside temperature sensor is fully seated into the DIC bezel.
  2. Install the inside air temperature sensor.
  3. Connect driver information center to the I/P.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the driver information center retaining screw.

    Tighten:  Tighten the screw to 1.9 N.m (17 lb in).

  5. Install the knee bolster. Refer to Driver Knee Bolster Panel Replacement .
