Cruise Control Schematics

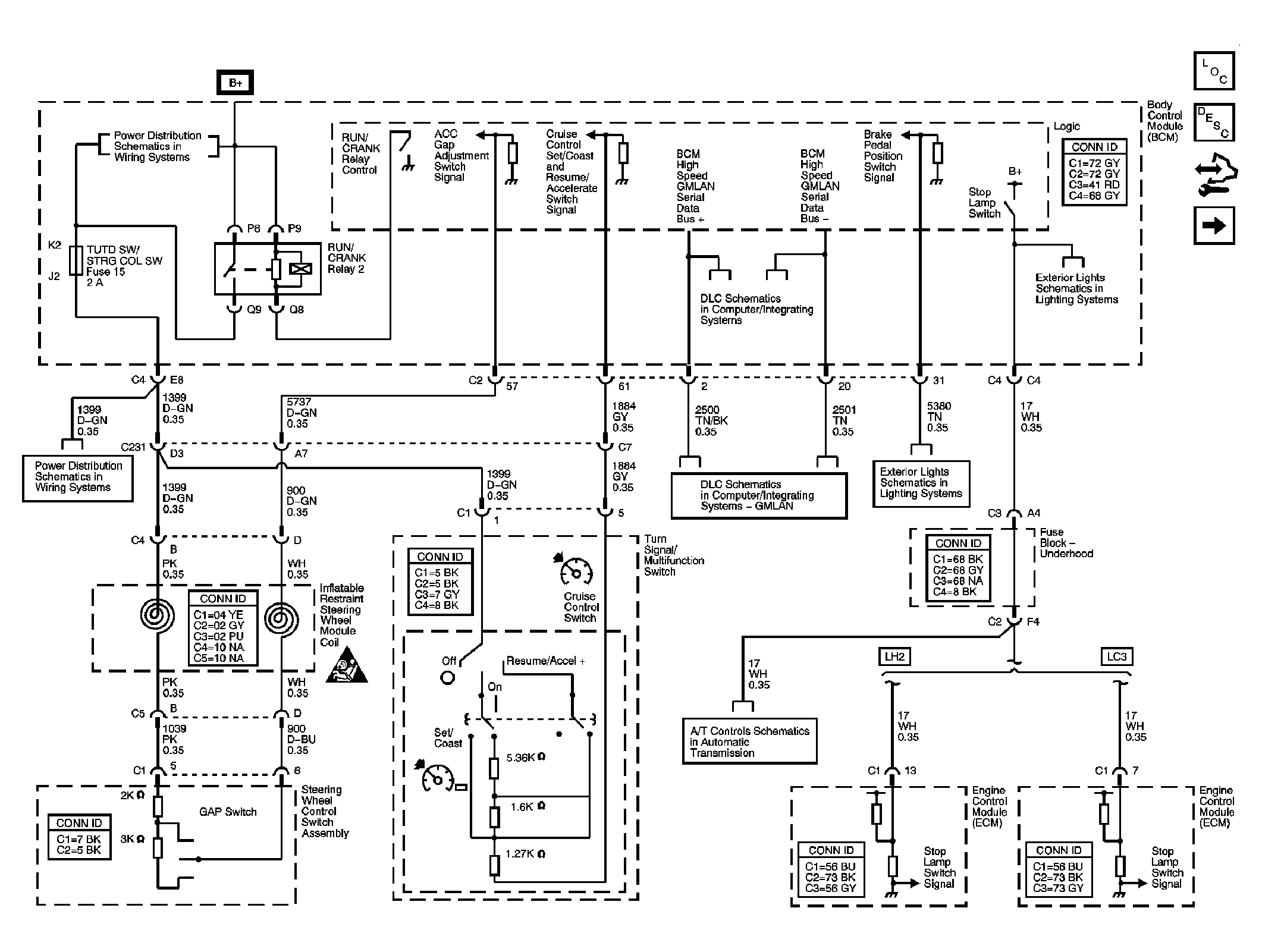

Fig 1: Driver Controls
GM1658959Courtesy of GENERAL MOTORS CORP.

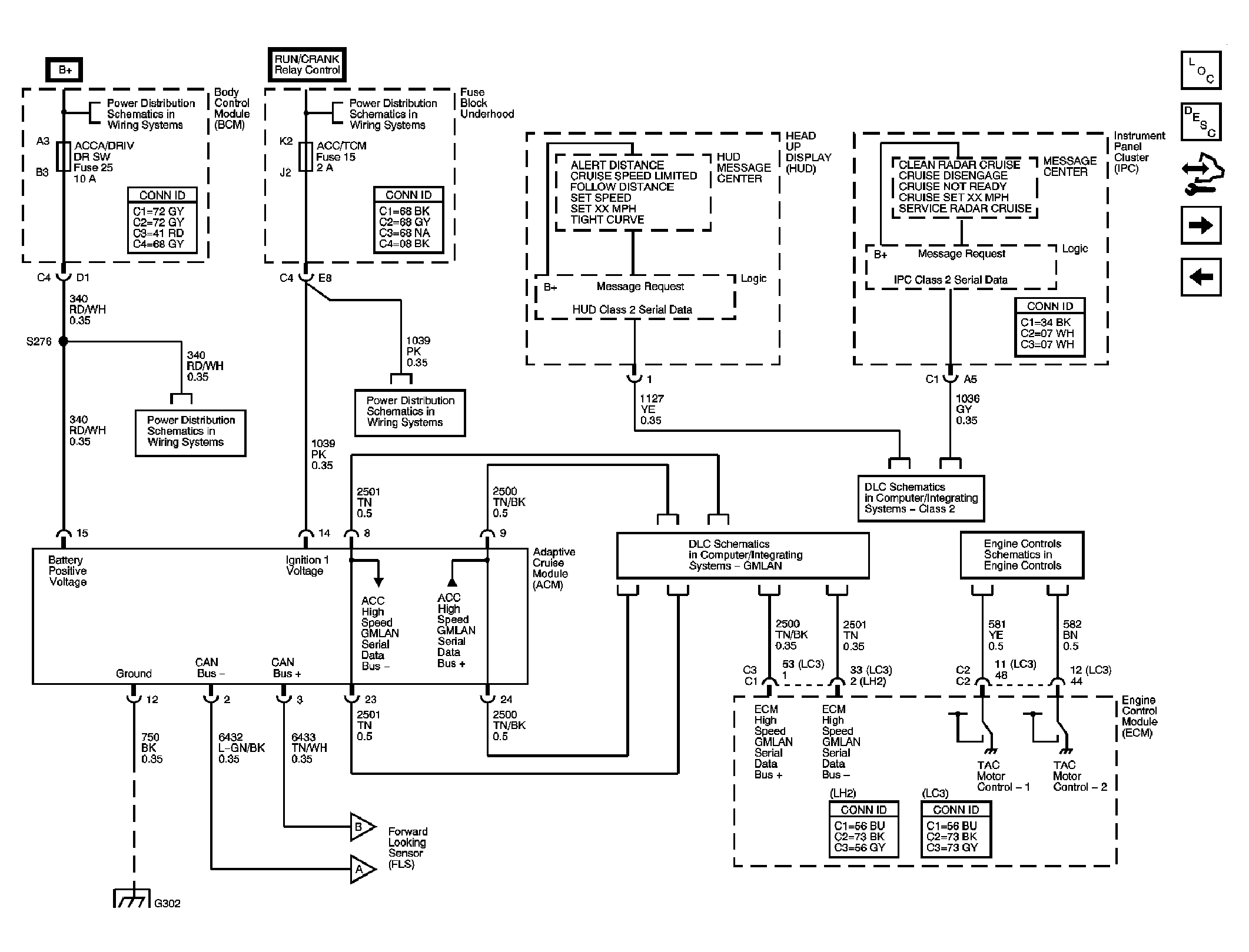

Fig 2: Computer Controls and Indicators
GM1675001Courtesy of GENERAL MOTORS CORP.

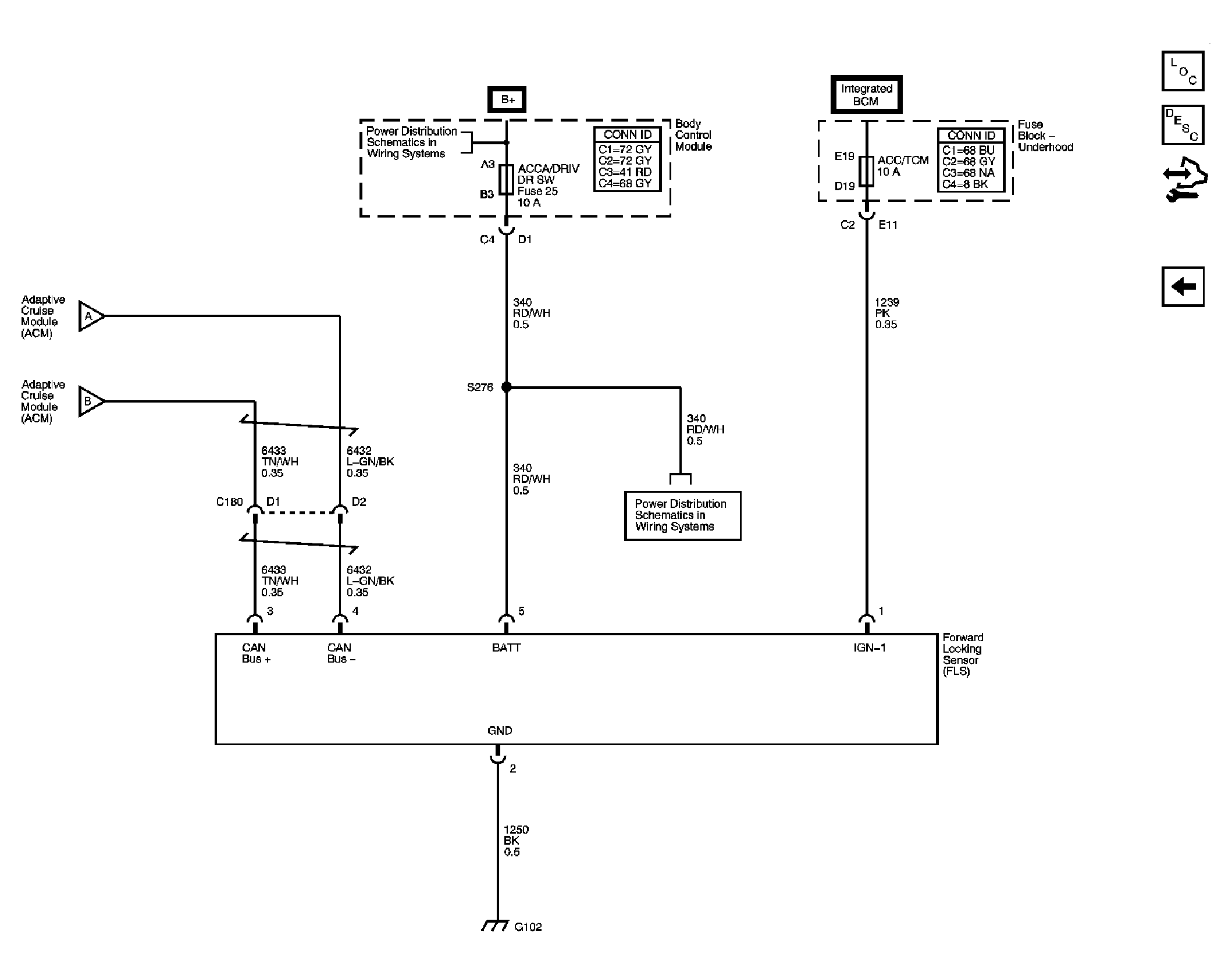

Fig 3: Forward Looking Sensor (FLS)
GM1674999Courtesy of GENERAL MOTORS CORP.
