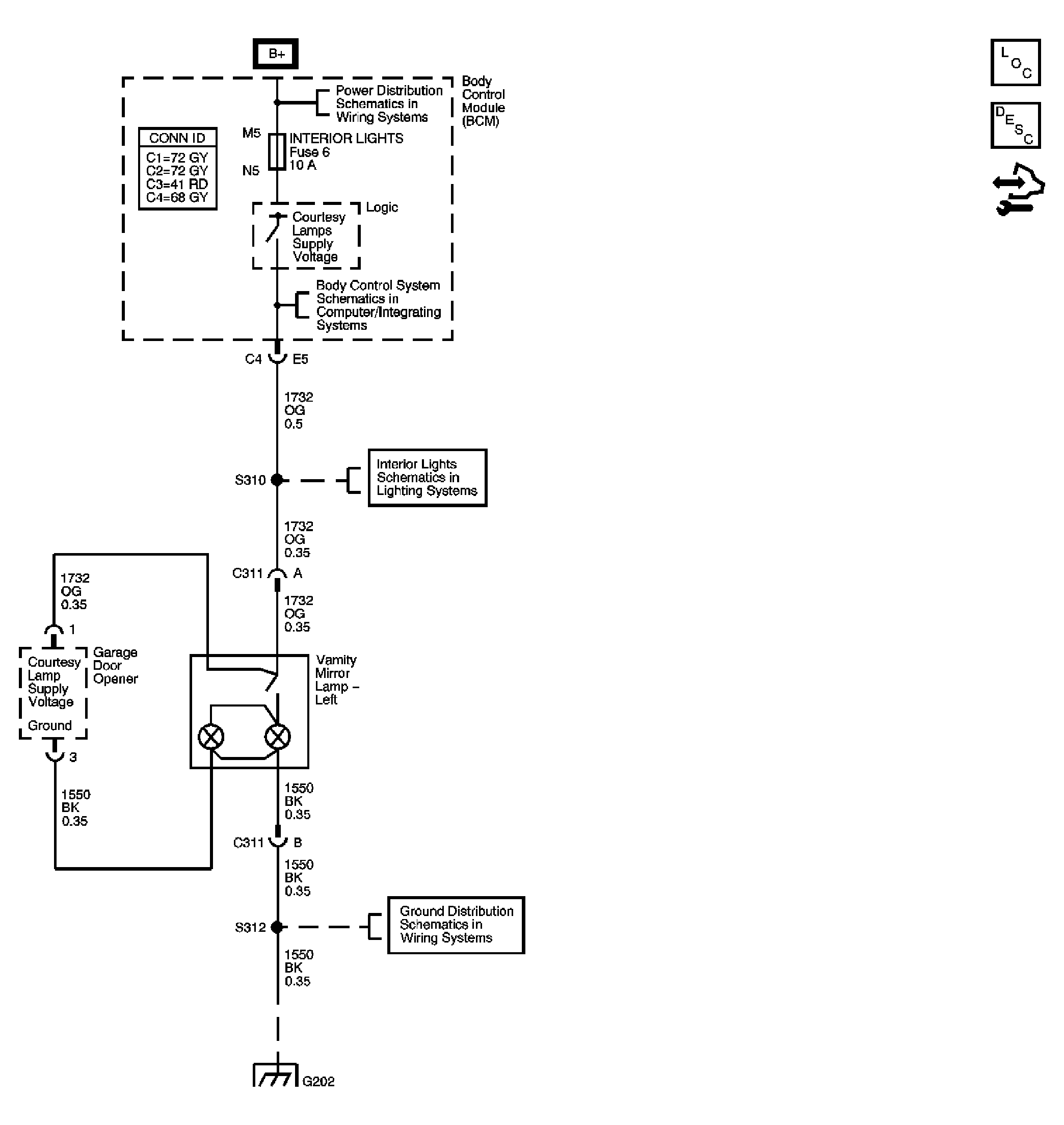

Home >> Cadillac >> 2006 >> XLR Base >> Repair and Diagnosis >> Accessories & Equipment >> Accessories Control Systems >> Garage Door Opener >> Schematic and Routing Diagrams >> Garage Door Opener Schematics
