Front Bumper Fascia Extension Replacement

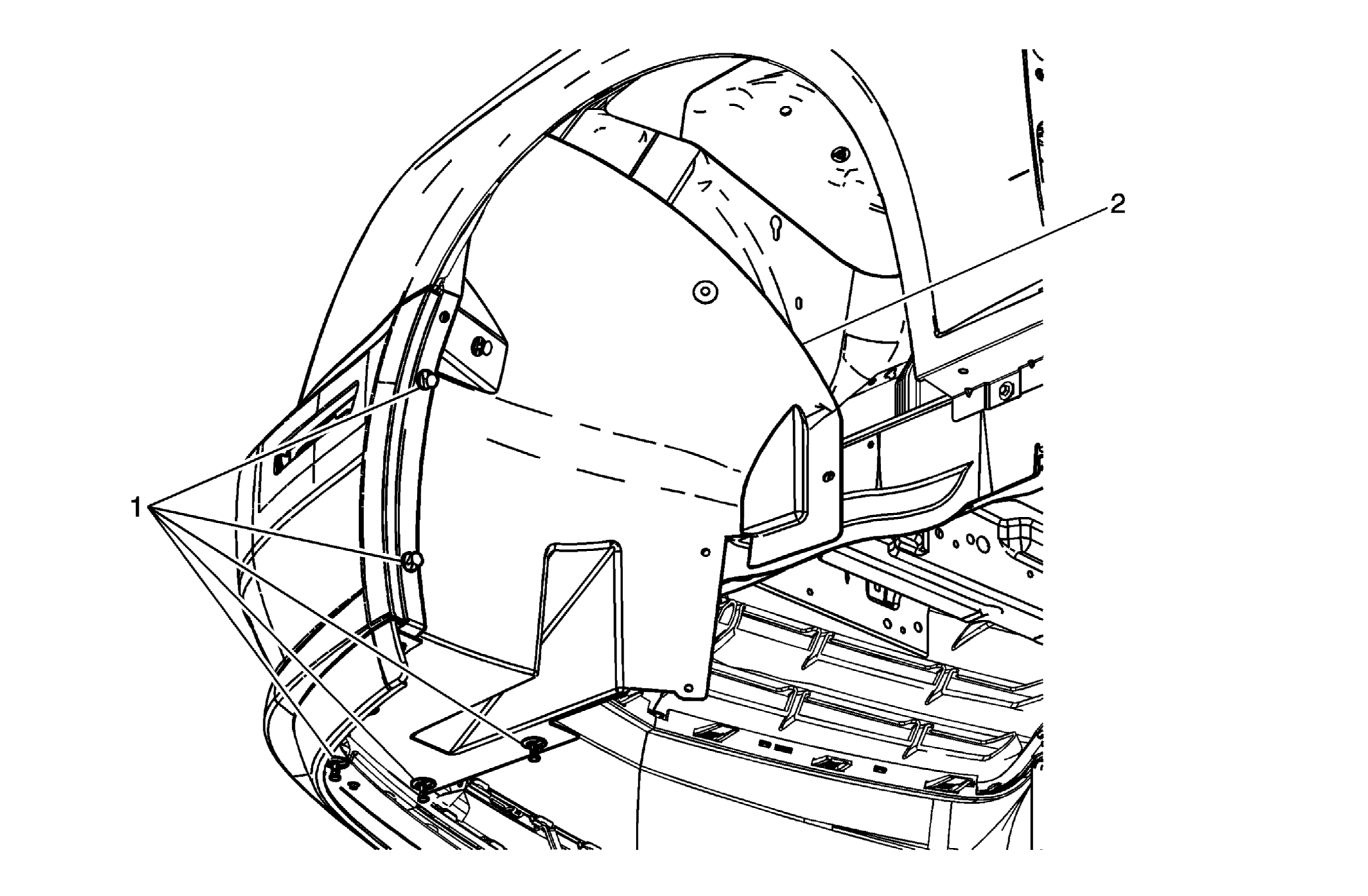

Fig 1: Front Bumper Fascia Extension Replacement

Courtesy of GENERAL MOTORS CORP.

Front Bumper Fascia Extension Replacement

Callout	Component Name
Preliminary Procedure:  Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Front Fascia Extension Plastic Retainers (Qty: 5)
2	Front Fascia Extension
