Installation Procedure

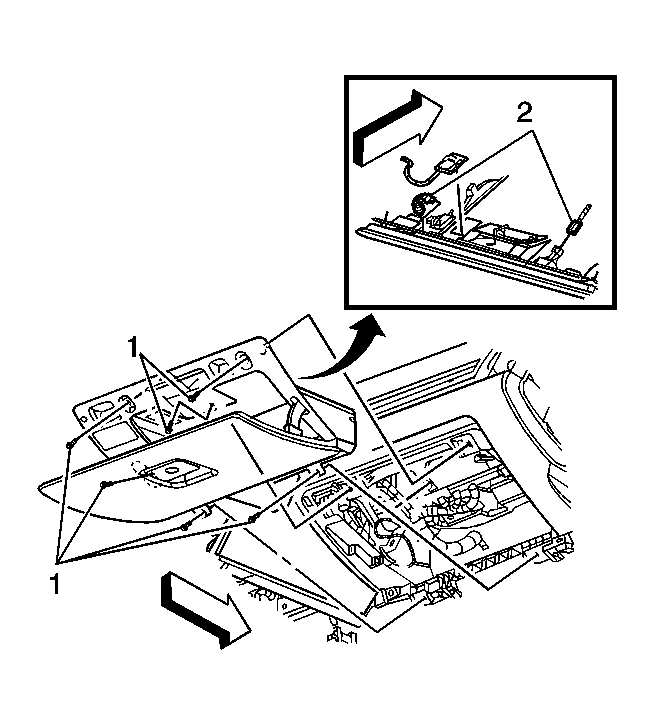

    Fig 1: View Of Instrument Panel Compartment
    GM1386018Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors (2).
  2. Install the 6 screws (1) securing the instrument panel compartment.
  3. Install the instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
