Instrument Panel Compartment Door Latch Release Handle Replacement

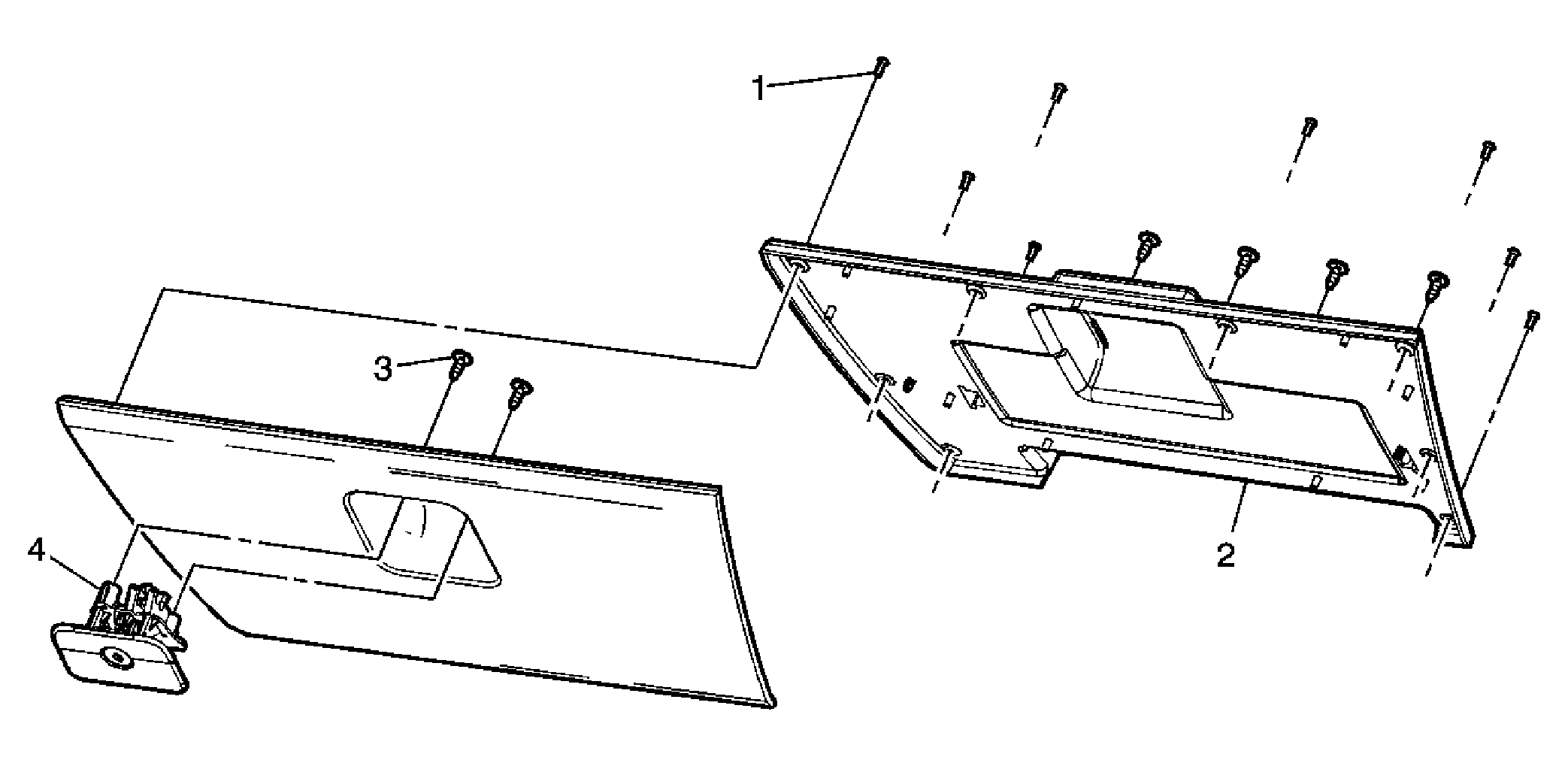

Fig 1: Glove Box Handle Replacement

Courtesy of GENERAL MOTORS CORP.

Instrument Panel Compartment Door Latch Release Handle Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Instrument Panel Compartment Door Inner Panel Screws (Qty: 12) Tighten:  2 N.m (18 lb in)
2	Instrument Panel Compartment Door Inner Panel
3	Instrument Panel Compartment Handle Assembly Screws (Qty: 2) Tighten:  2 N.m (18 lb in)
4	Instrument Panel Compartment Handle Assembly
