Installation Procedure

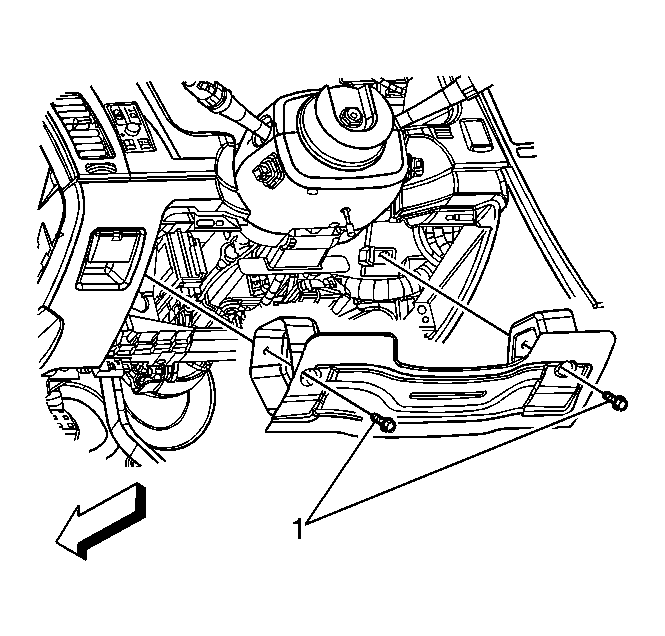

    Fig 1: View Of Knee Bolster Reinforcement
    GM1386652Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the bolts securing the bolster bracket to the instrument panel.

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

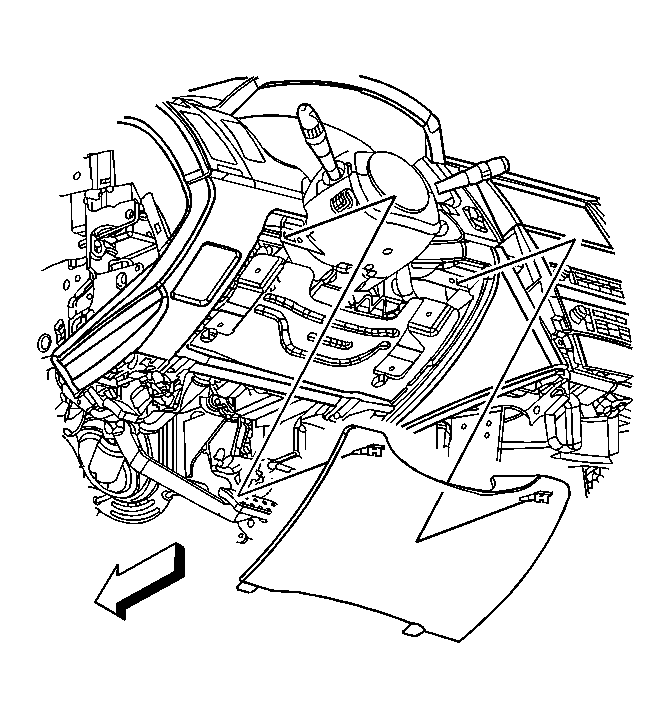

    2. Fig 2: View Of Bolster Trim Panel
    GM1386654Courtesy of GENERAL MOTORS CORP.
  2. Locate the bolster trim panel onto the Instrument panel.
  3. Push the trim panel in order to secure the clips to the instrument panel.
  4. Install the insulator to the instrument panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
