Power Window Switch: Diagrams

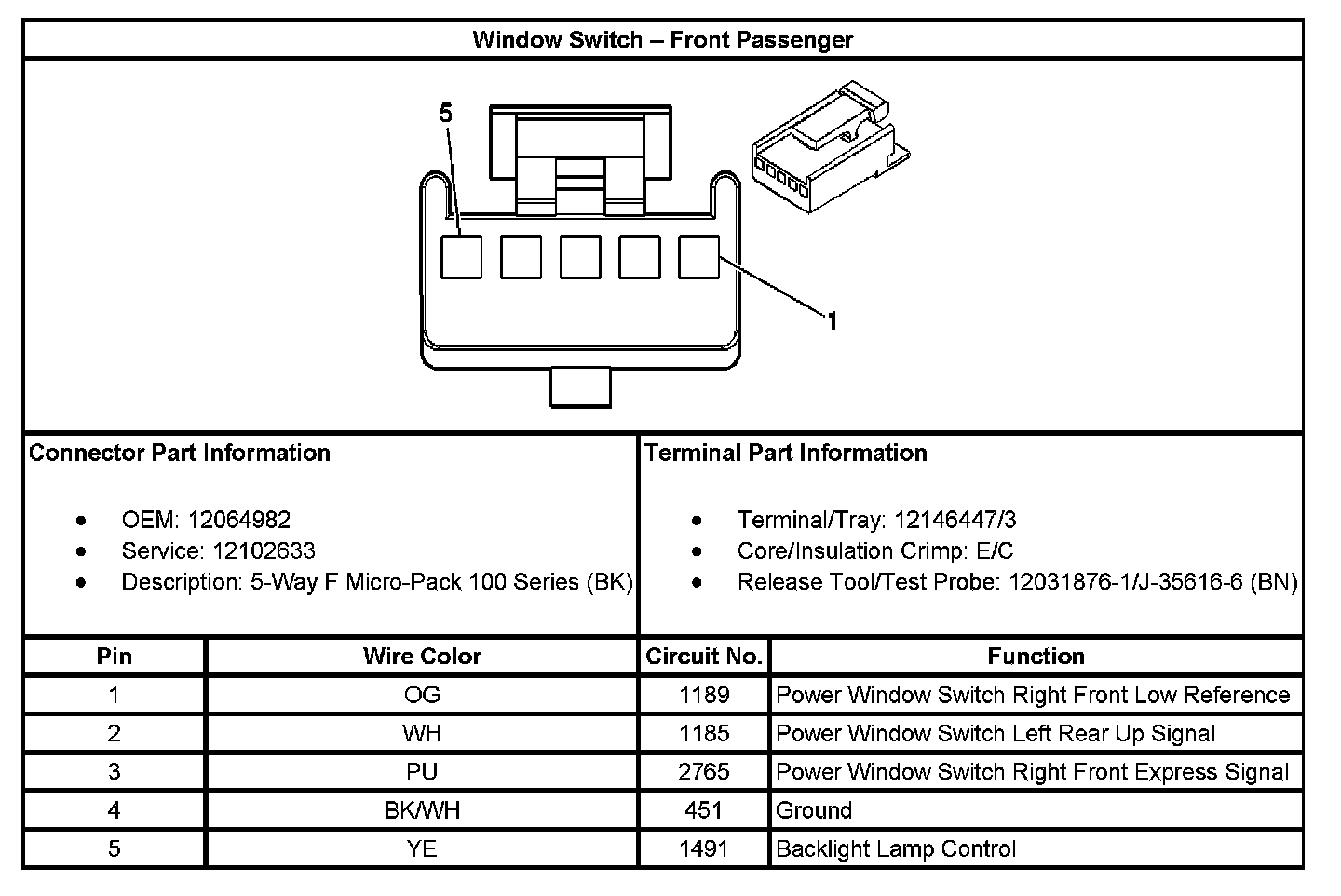

Window Switch - Front Passenger:

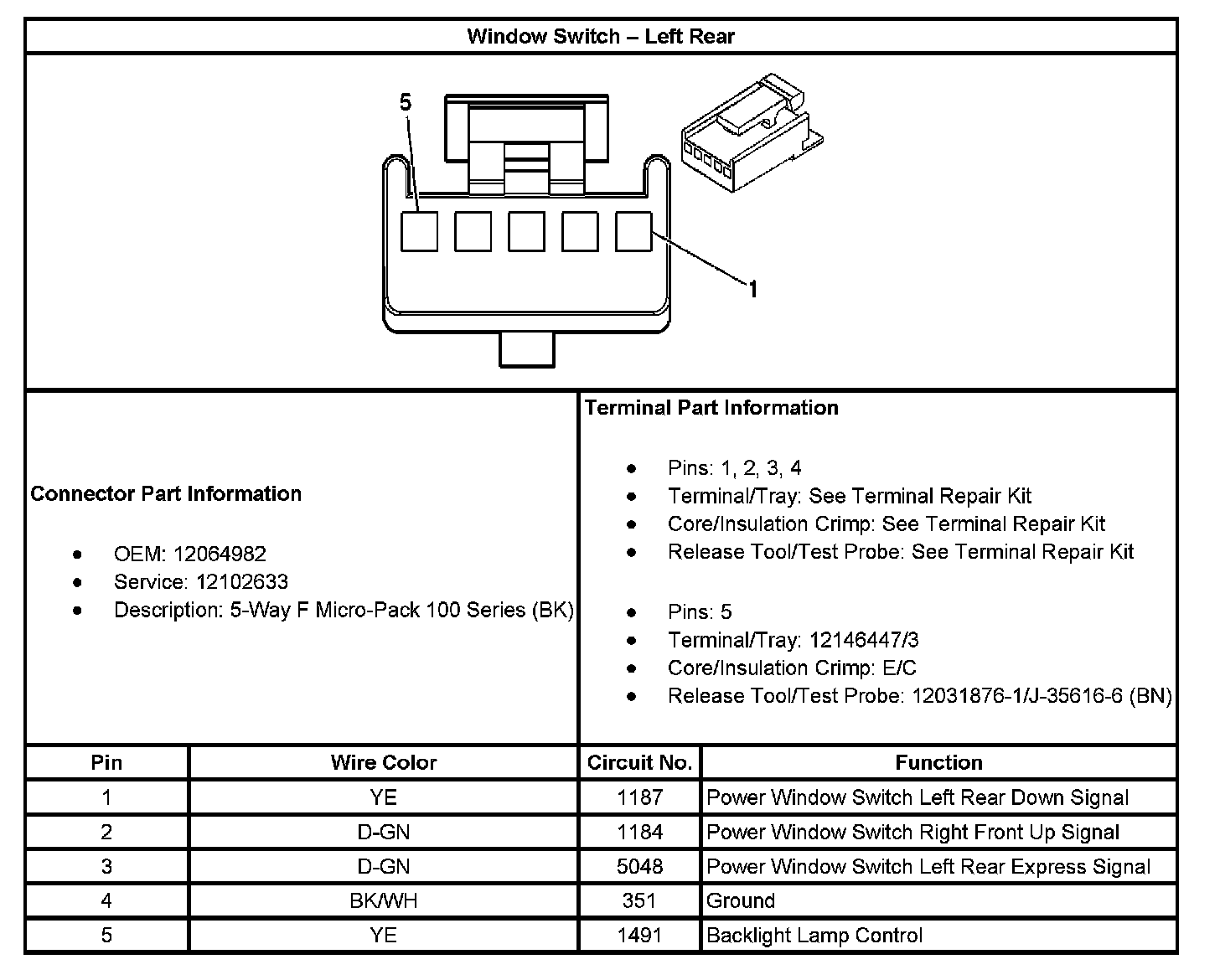

Window Switch - Left Rear:



Window Switch - Right Rear:
