Solid Rubber Bushing

Differential Housing Support Bushing Replacement (Solid Rubber Bushing)

Tools Required
^ J 45007 Bushing Remover/Installer

Removal Procedure





1. Remove the differential assembly. Refer to Differential Replacement.

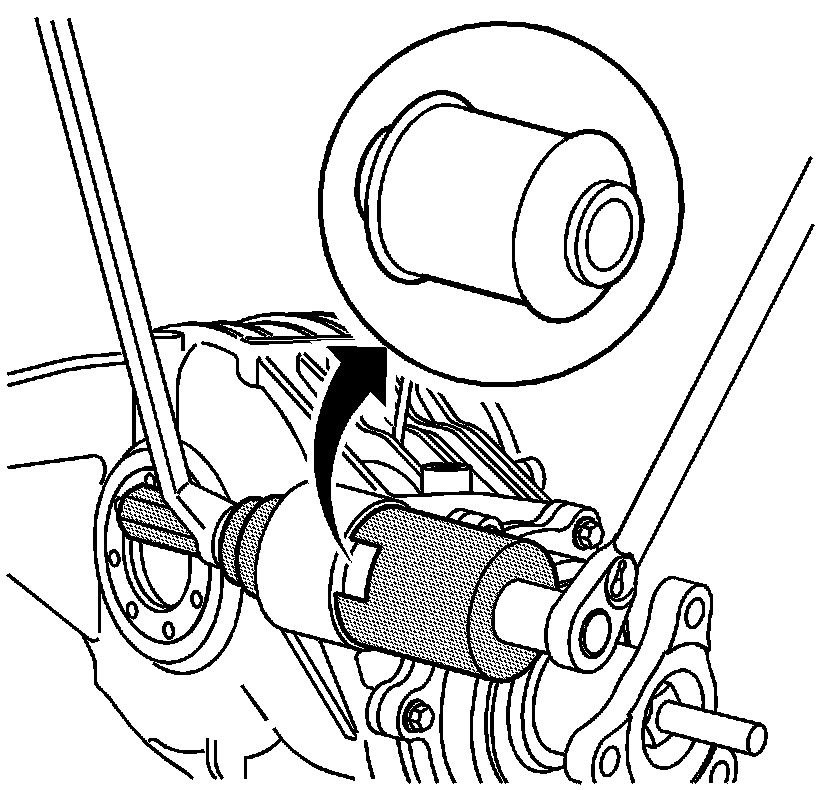

2. Using the J 45007, remove the housing support bushing.

Installation Procedure





1. Using the J 45007, install the housing support bushing.
2. Install the differential assembly. Refer to Differential Replacement.
