6L80-E - Automatic Transmission

Oil Pressure Test Plug Replacement

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.





2. Clean the surrounding area of the oil pressure test plug.

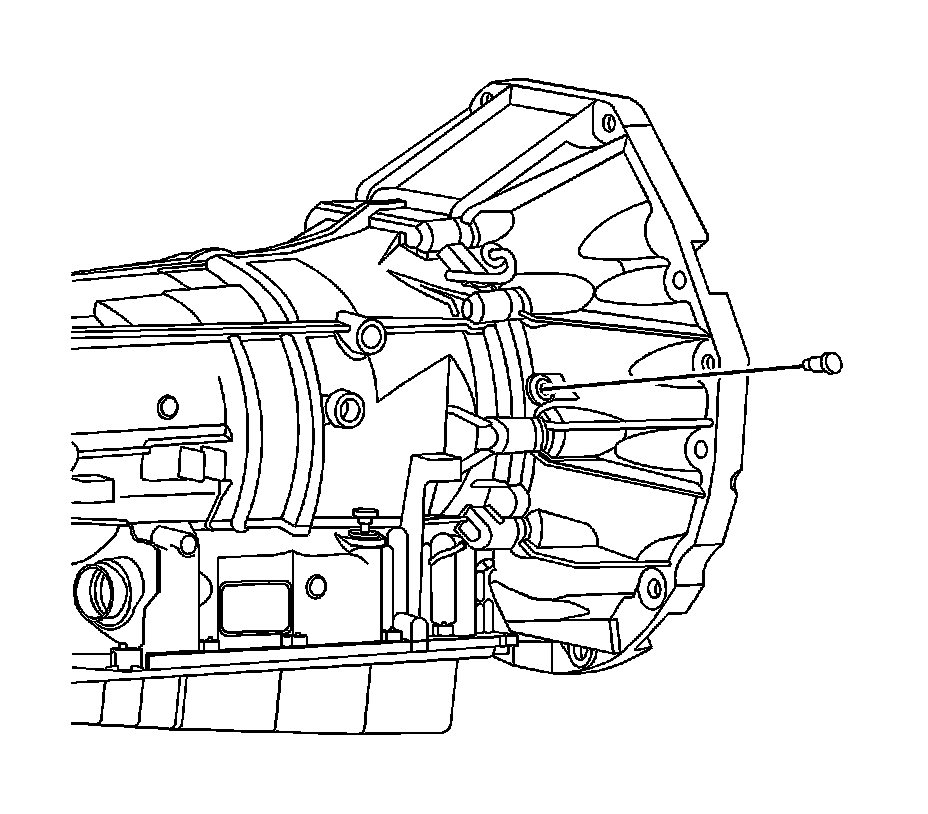

3. Remove the oil pressure test plug.

Installation Procedure





1. Notice: Refer to Fastener Notice in Service Precautions.

Install the oil pressure test plug.
Tighten the oil pressure test plug to 11 Nm (97 inch lbs.).
2. Check the transmission fluid level (fill if necessary). Refer to Transmission Fluid Checking Procedure and Transmission Fluid Fill Procedure.
3. Lower the vehicle.
