Electrical Diagrams

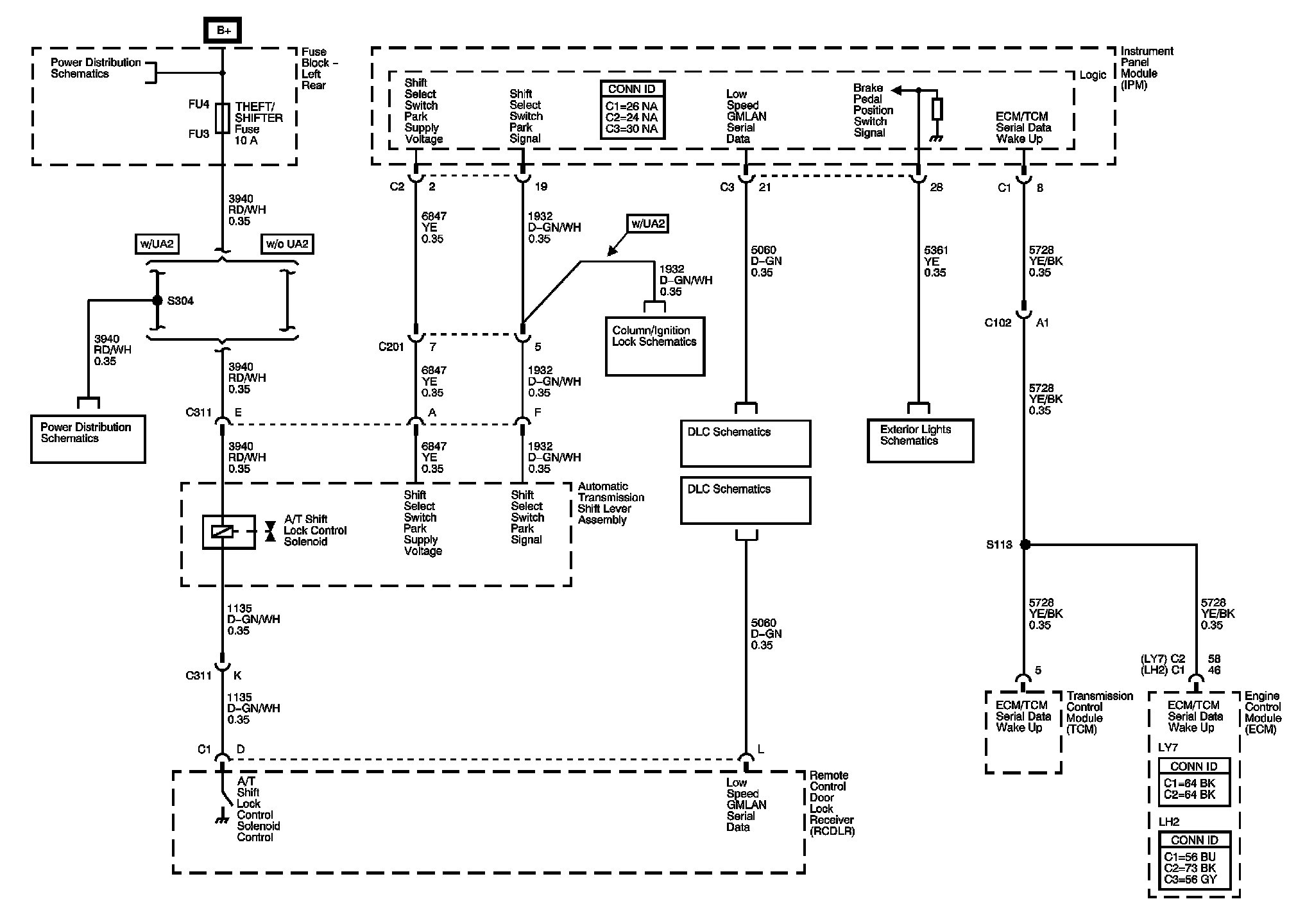

Automatic Transmission Shift Lock Control Diagrams

Automatic Transmission Shift Lock Control Diagrams:





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
