67. Torque Converter Assembly Installation



Torque Converter Assembly Installation

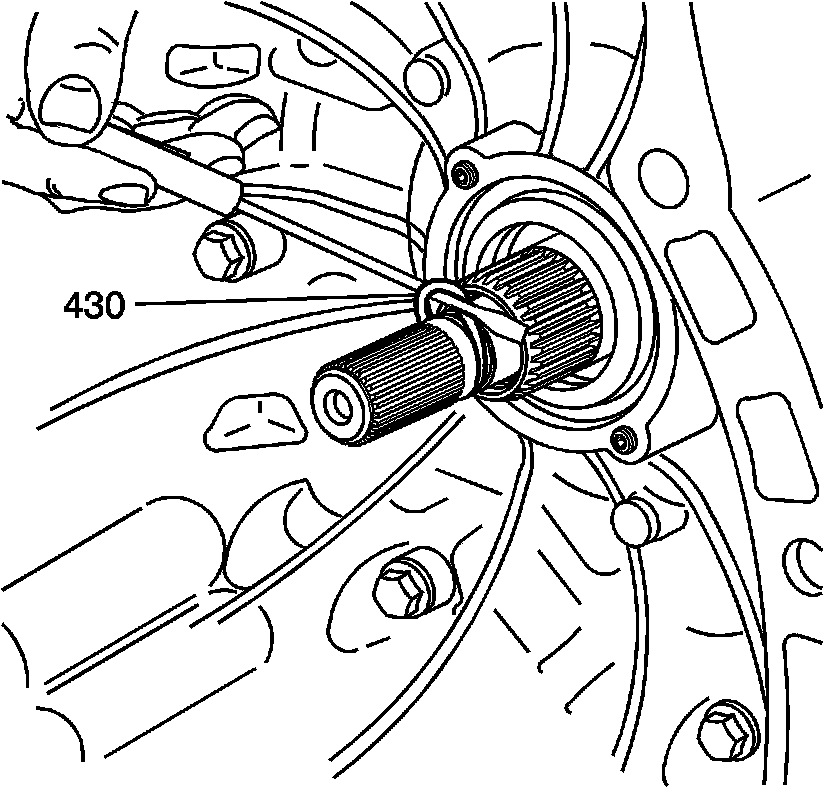

1. Install the turbine shaft seal (430).

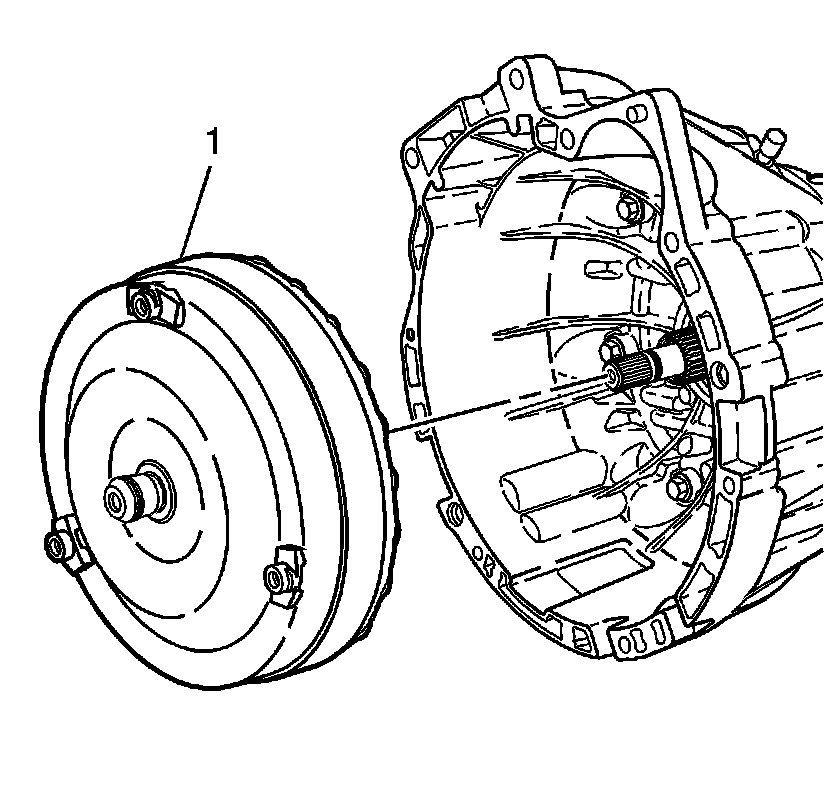

2. Install the torque converter assembly (1).
