21. Case Assembly Inspection

Case Assembly Inspection

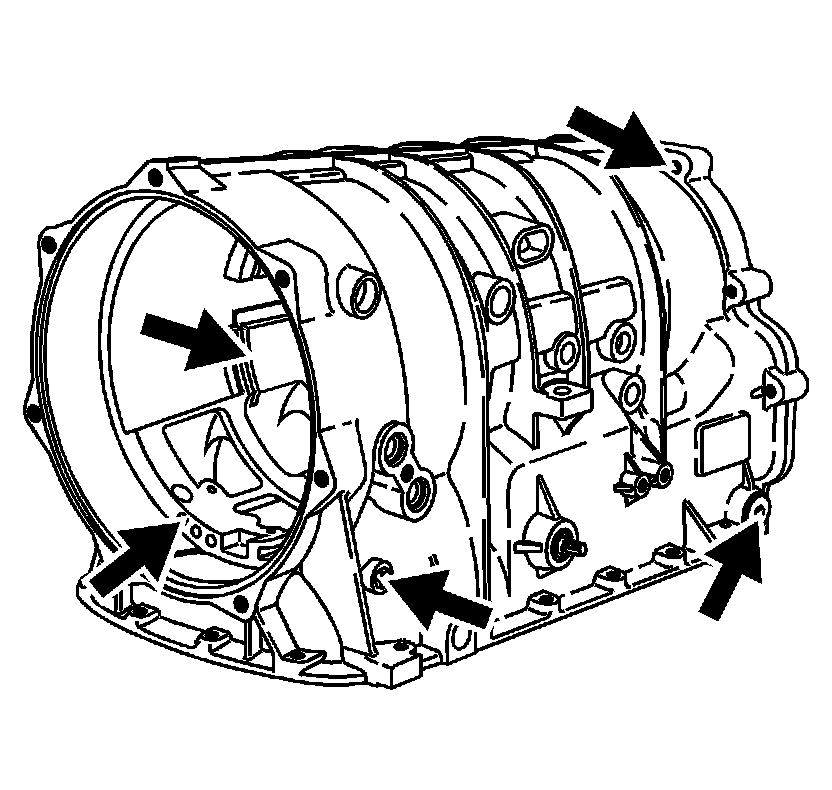

1. Inspect the components that are still on the transmission case for the following conditions:
^ Loose, cross-threaded, or damaged threads on the transmission oil cooler fittings
^ A loose, missing, or damaged transmission name plate

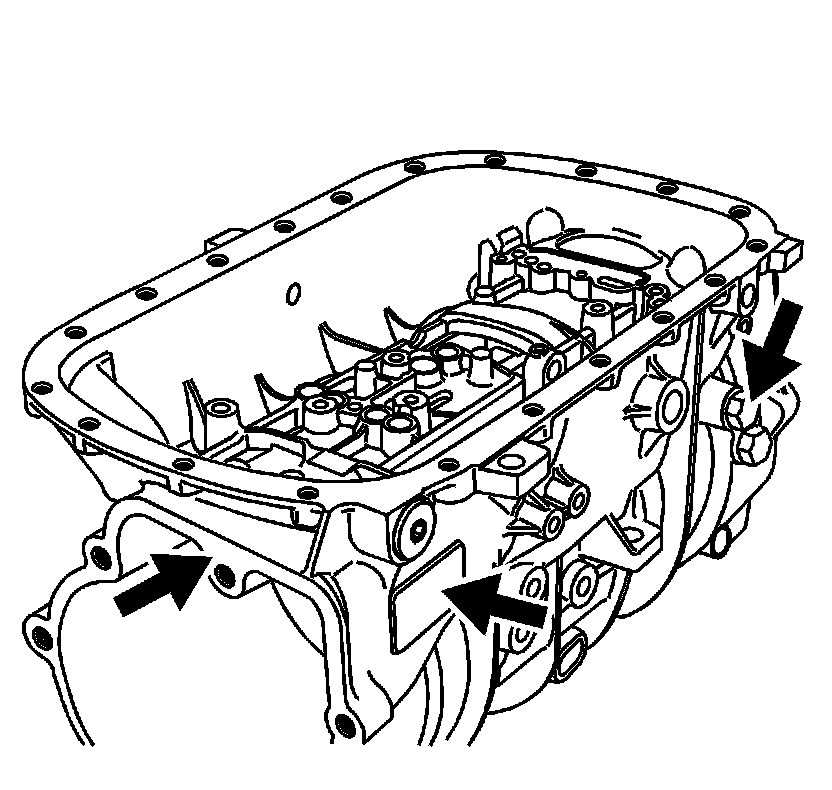

2. Inspect the transmission case for the following conditions:
^ Gasket sealing surfaces that are damaged or have porosity
^ Bolt and screw holes that are stripped or damaged - repair with thread insert
^ Damaged or porous case and fluid passages
^ Damaged snap ring grooves or housing splines
^ A loose, cross threaded, or damaged pressure test plug and fluid level hole plug
