18. Input and Reaction Carrier Removal

Input and Reaction Carrier Removal

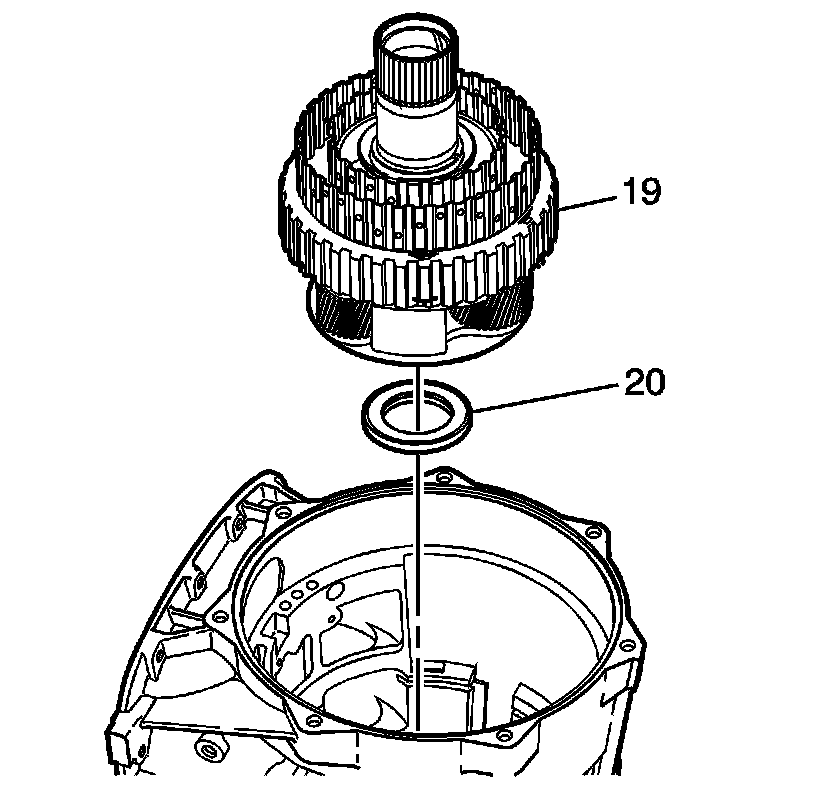

1. Remove the input and reaction carrier (19) from the case (24).
2. Remove the input and reaction carrier thrust bearing (20) from the case (24).
