17. Center Support Removal



Center Support Removal

^ Tools Required
- J 45127 Center Support Removal Tool

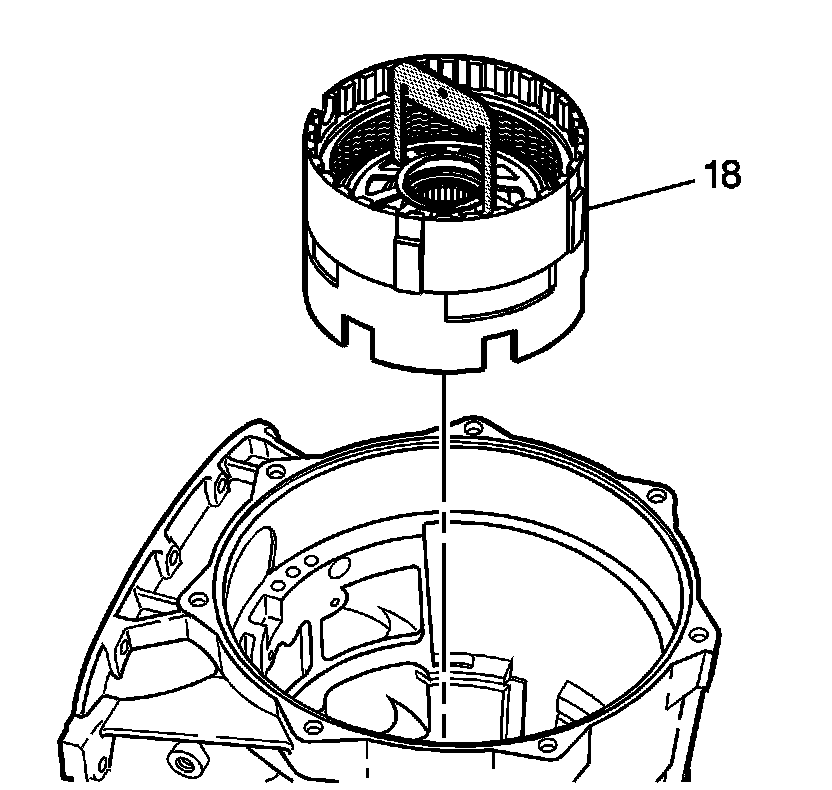

Use J 45127 to remove the center support (18) from the case (24).
