15. Overdrive Clutch Housing Removal

Overdrive Clutch Housing Removal

^ Tools Required
- J 45126 Snap Ring Pliers

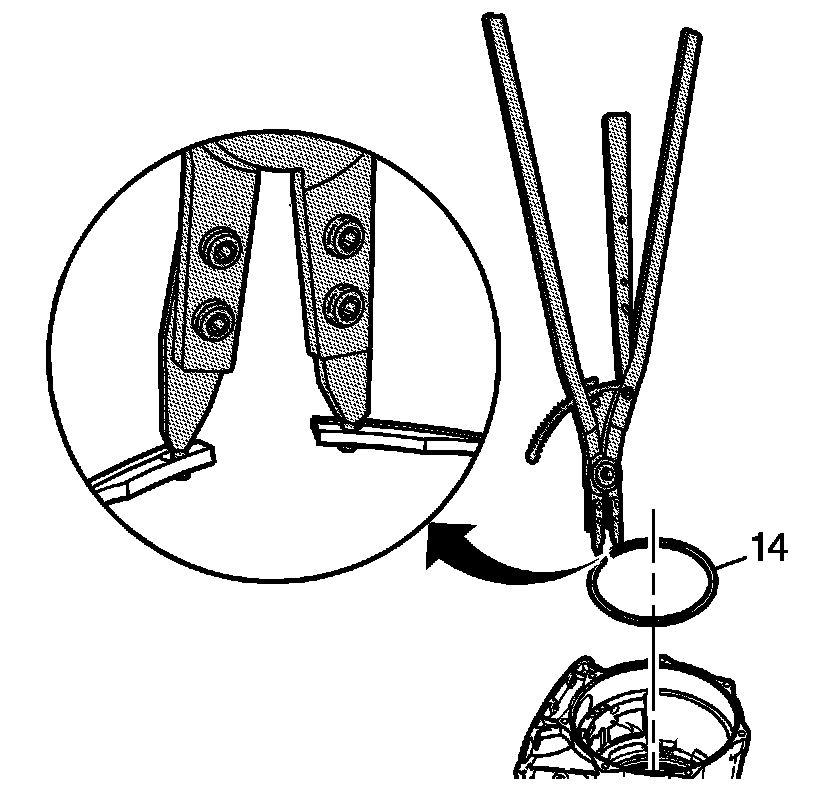

1. Caution: Use care when removing or installing the snap ring. Be sure the J 45126 snap ring pliers are installed properly onto the snap ring or bodily injury may occur.

Use J 45126 to remove the snap ring (14).

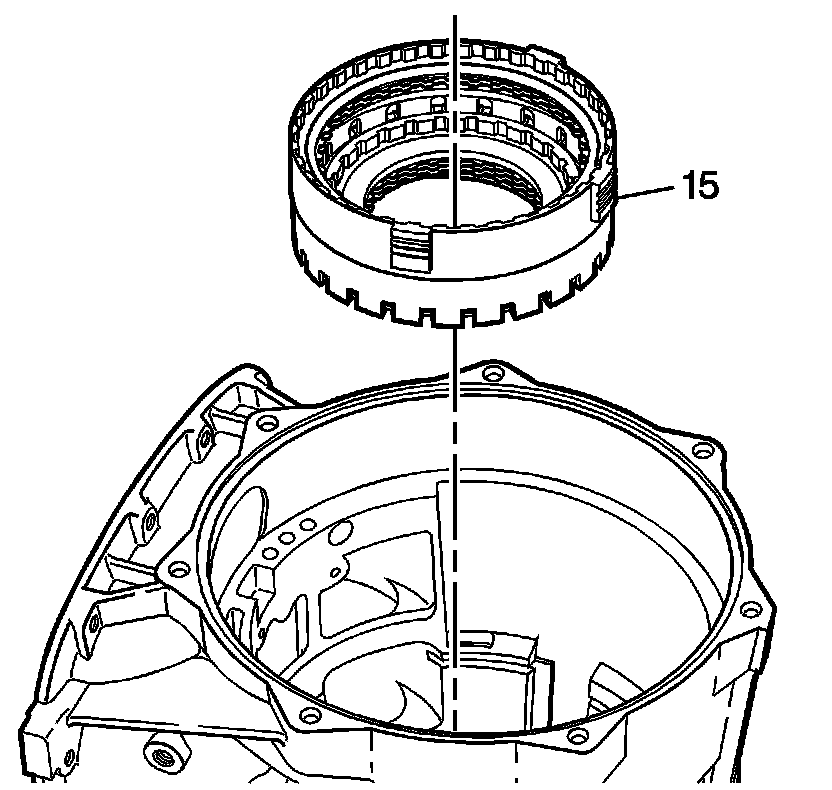

2. Remove the overdrive clutch housing (15) from the case (24).
