11. Direct and Reverse Clutch - Forward and Coast Clutch Removal

Direct and Reverse Clutch - Forward and Coast Clutch Removal





1. Notice: Do not damage the input shaft fluid seals when removing or installing the direct and reverse coast clutch assembly.

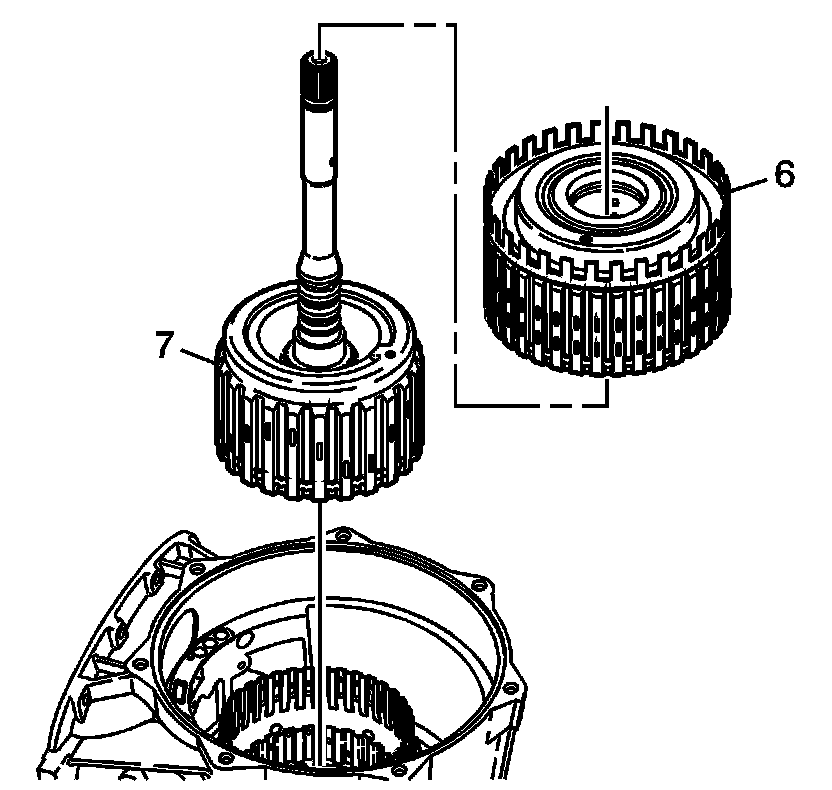

Remove the forward and coast clutch assembly (7) and the direct and reverse clutch assembly (6) from the case (24).
2. Lift the direct and reverse clutch assembly (6) off of the forward and coast clutch assembly (7).
