Electrical Diagrams

Steering Wheel and Column Diagrams

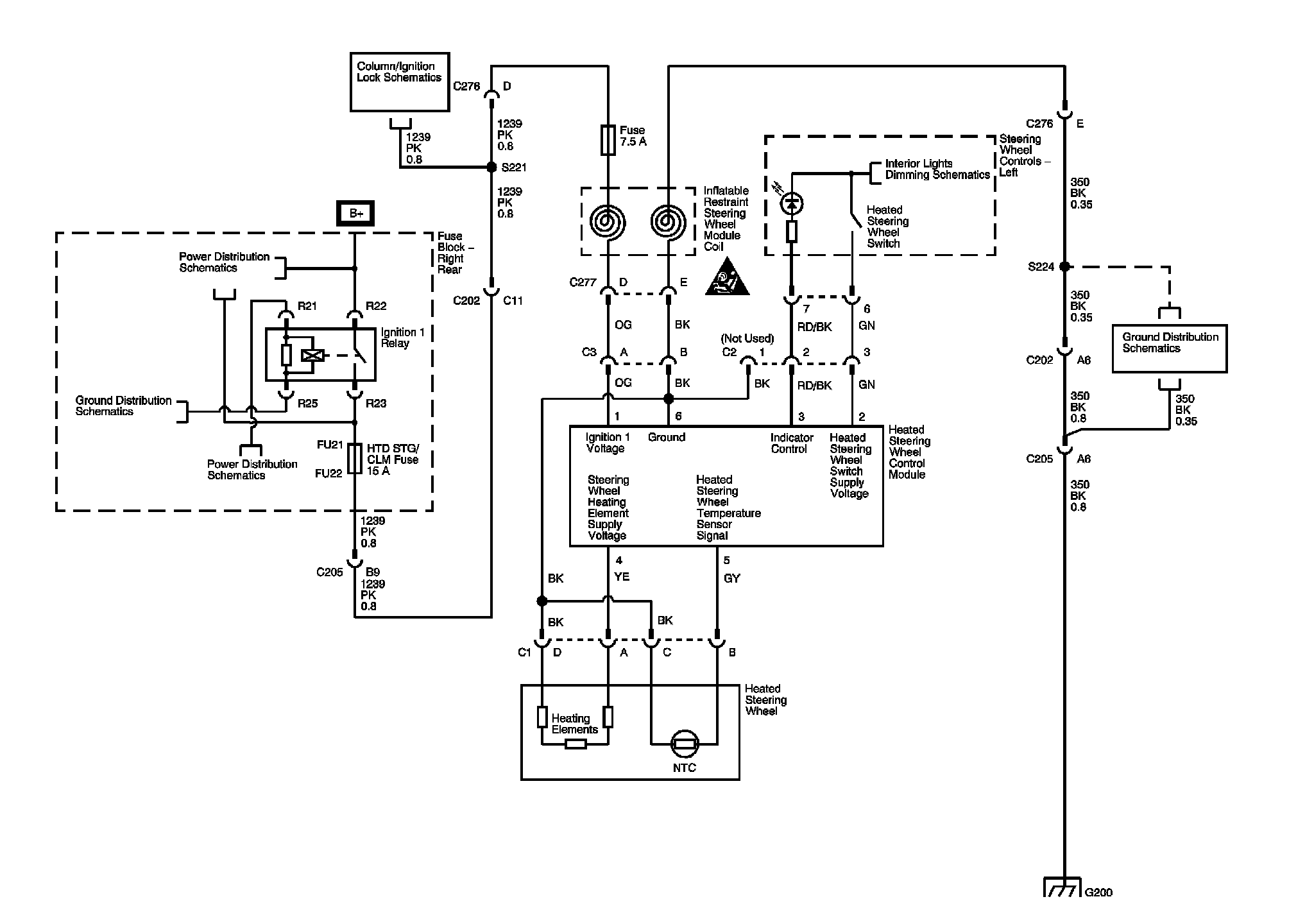

Steering Wheel and Column Diagrams 1:

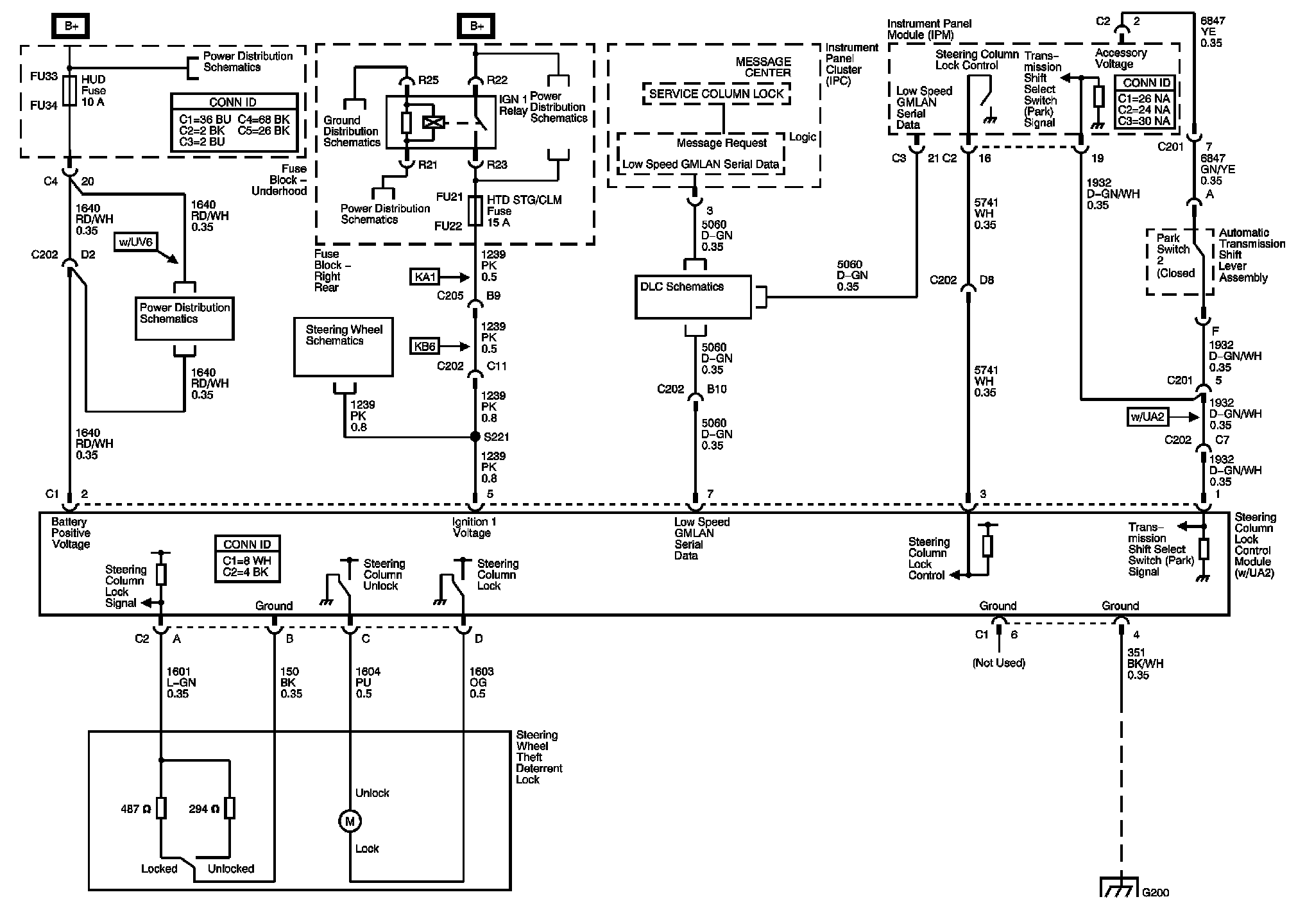

Steering Wheel and Column Diagrams 2:

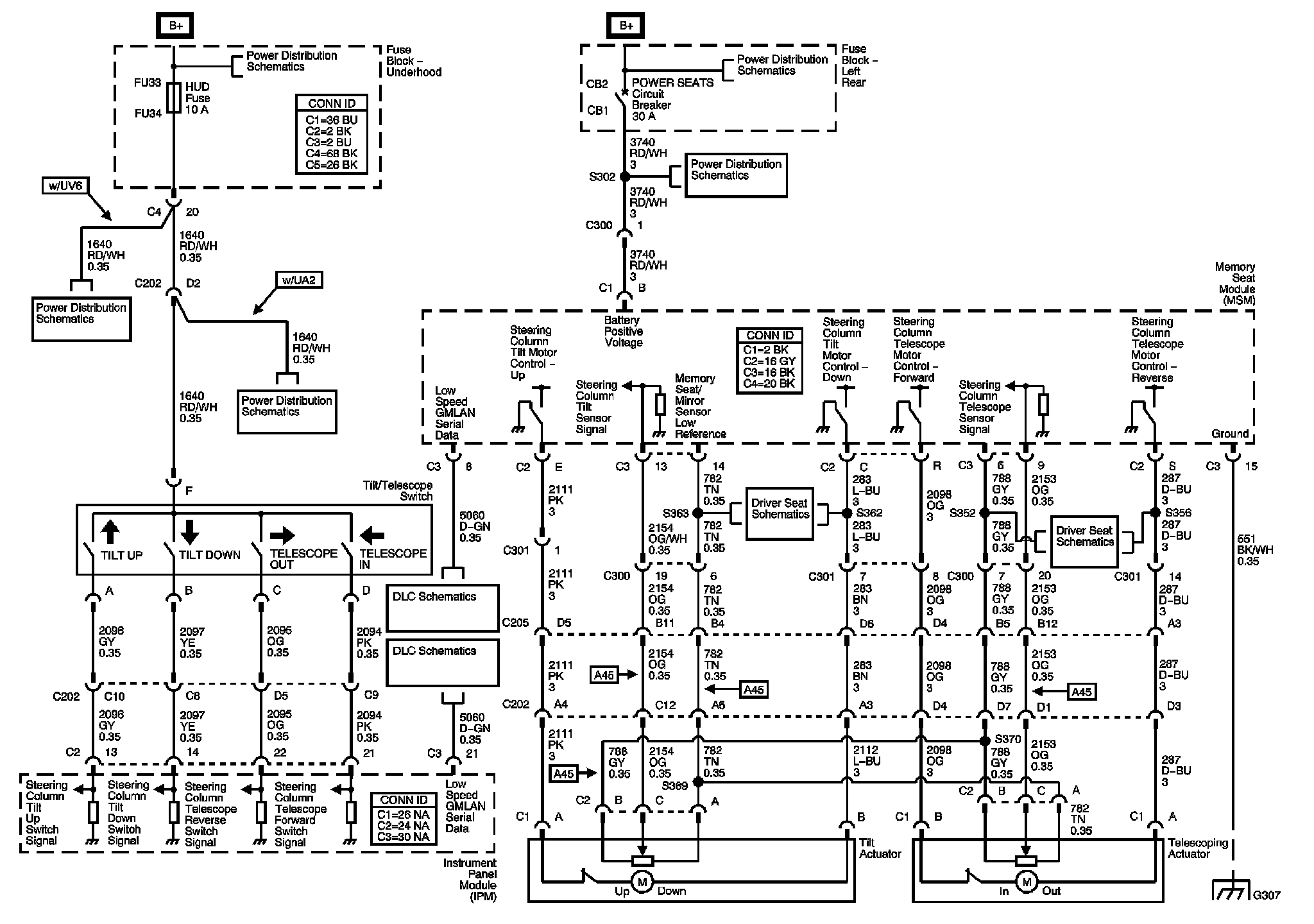

Steering Wheel and Column Diagrams 3:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
