Starter Motor Noise Diagnosis

STARTER MOTOR NOISE DIAGNOSIS

DIAGNOSTIC AIDS
Inspect the flywheel ring gear for damage or unusual wear.

TEST DESCRIPTION

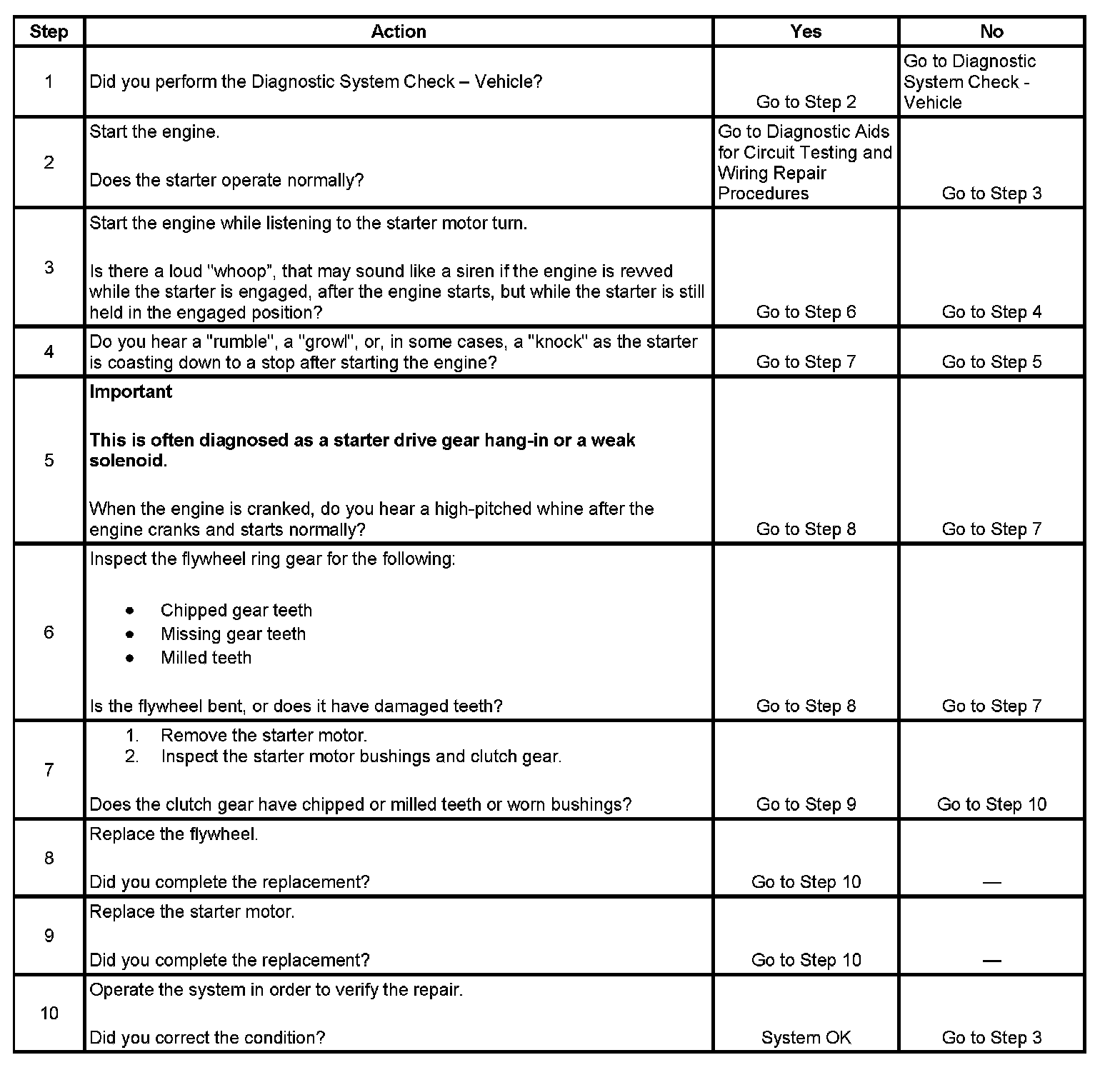

Step 1 - Step 10:

The number below refers to the step number on the diagnostic table.
5. A starter motor that remains engaged after engine start up can be cause by a starter relay that hangs up or a low current short to B+ on the starter solenoid crank voltage circuit. Verify the integrity of the starter solenoid crank voltage circuit before replacing the starter motor.
