Charge Indicator Always On
CHARGE INDICATOR ALWAYS ON
DIAGNOSTIC AIDS
The driver information center (DIC) may display a "Charging System Failure" message. This message being displayed is the result of a class 2 message being sent by the engine control module (ECM), instrument panel module (IPM), dash integration module (DIM), or the instrument panel cluster (IPC) to the DIC. Each module has a different criteria for requesting the message to be displayed. Refer to Charging System Description and Operation.

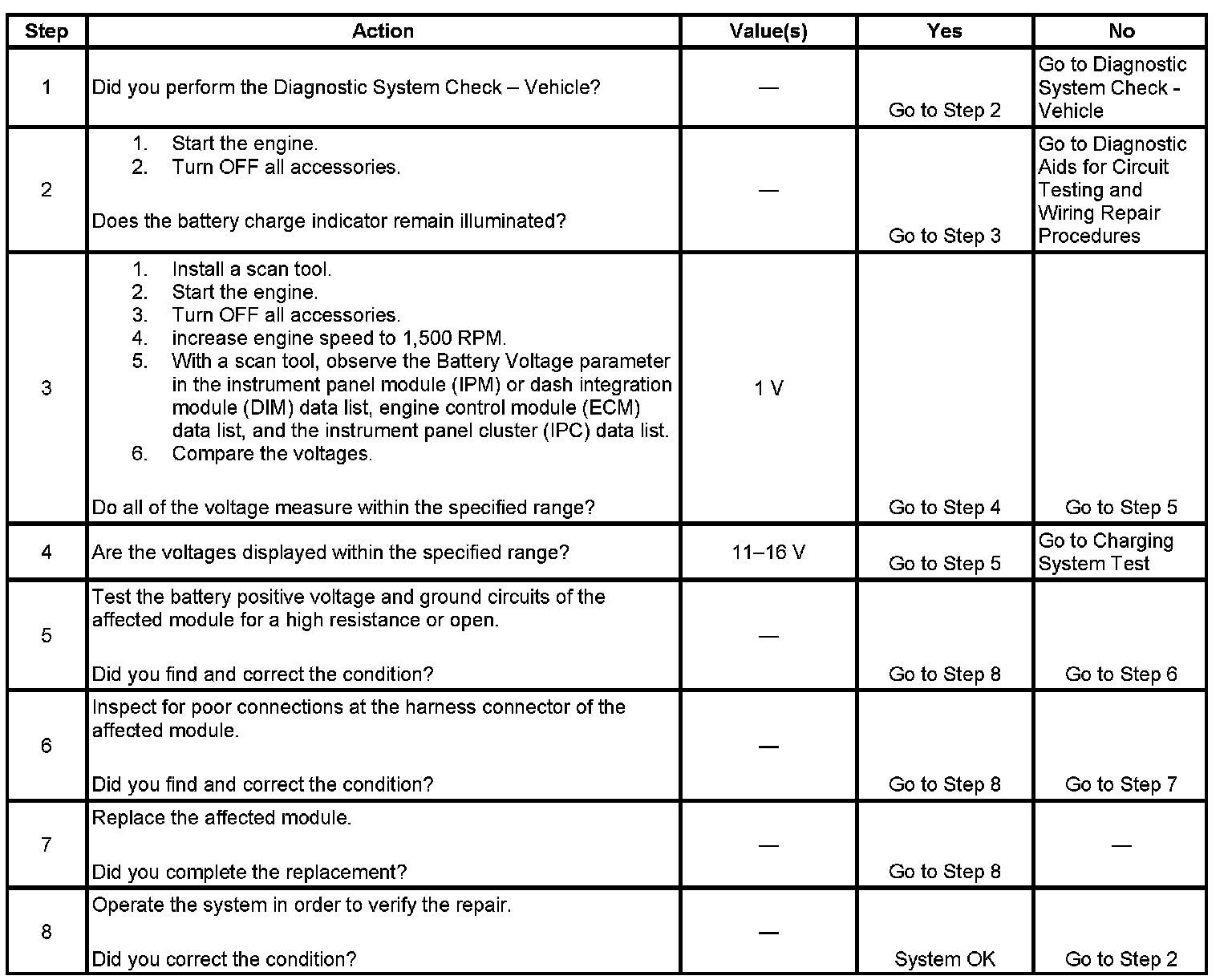

TEST
