Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C700 - C799 >> C700

C700

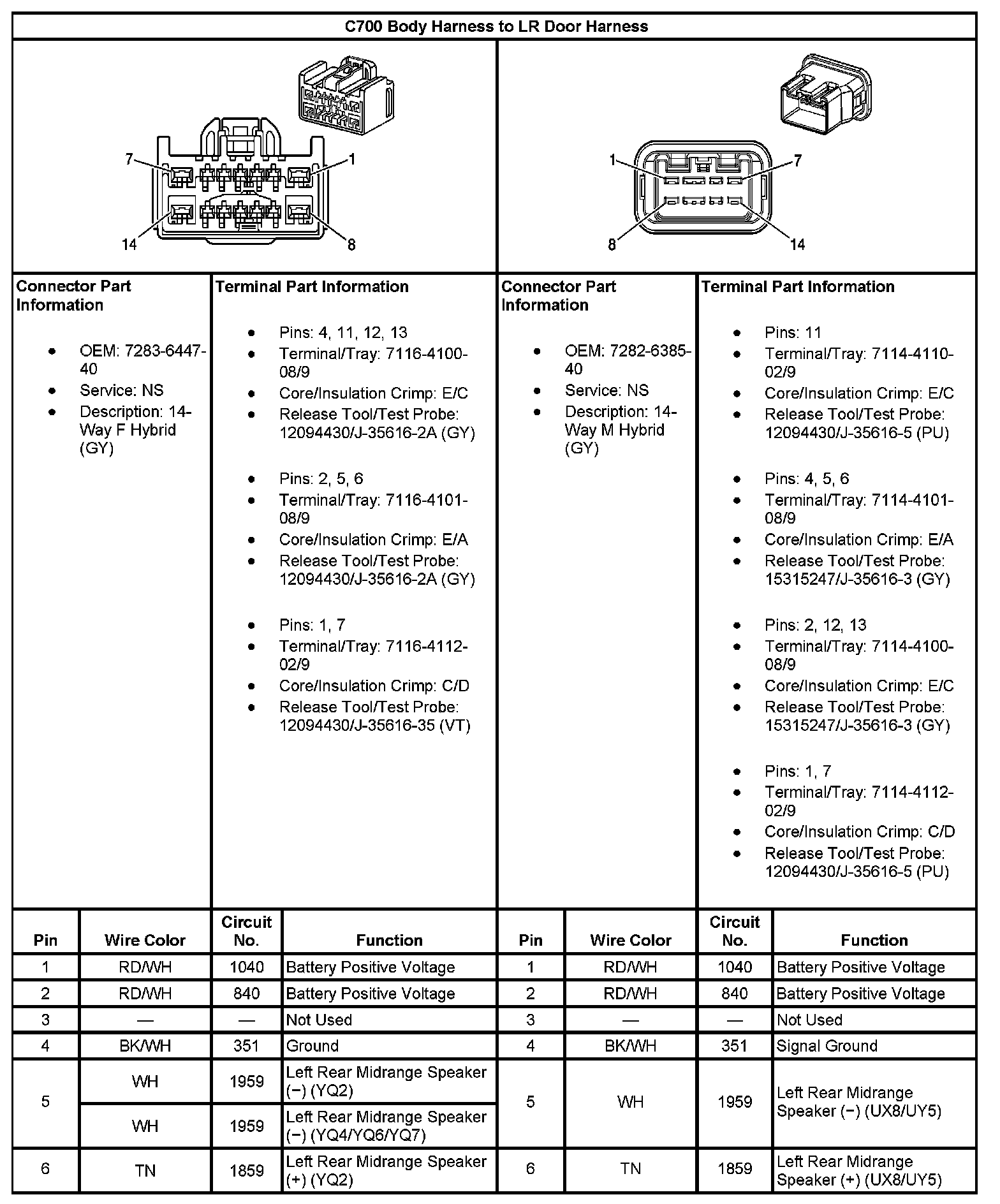

C700 Body Harness To LR Door Harness (Part 1):

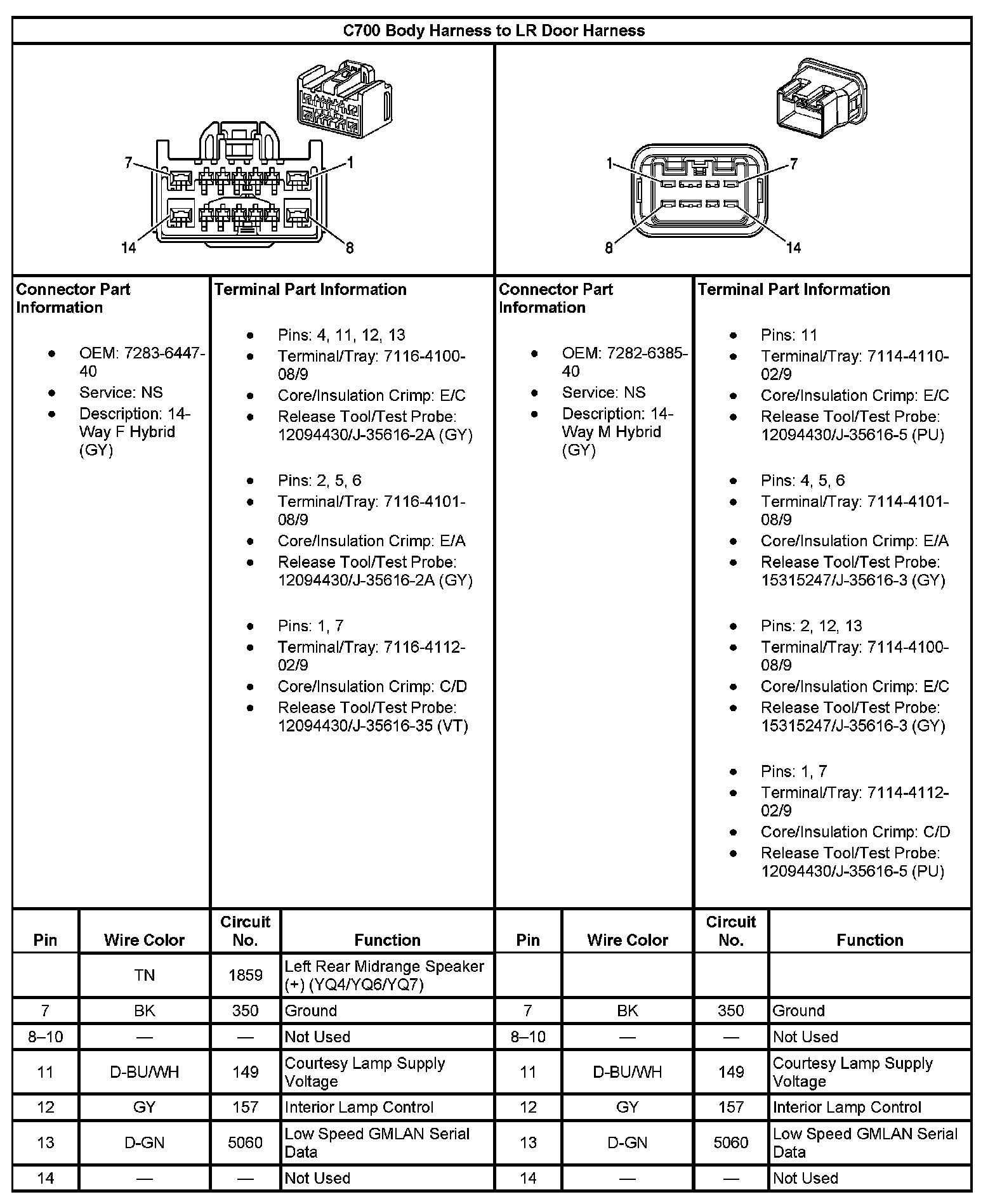

C700 Body Harness To LR Door Harness (Part 2):
